Code: HTU

Teycorig T‐FLY telescopes series introduce the latest innovative Telescope design with integrated drive unit and dedicated software. The perfect solutton to position and focus in any place the spotlights for TV Studios,Auditorium, and Architectural venues applications.

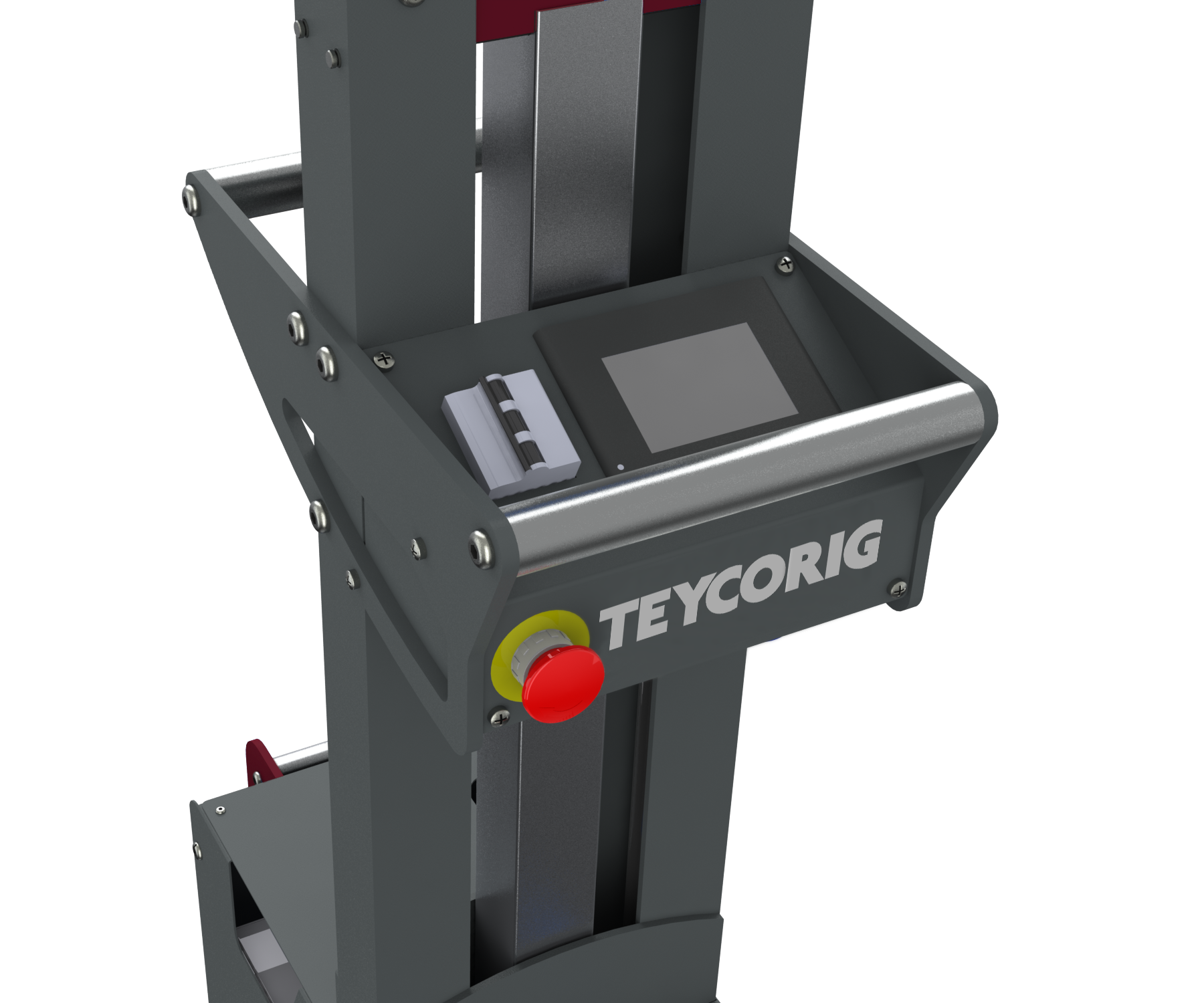

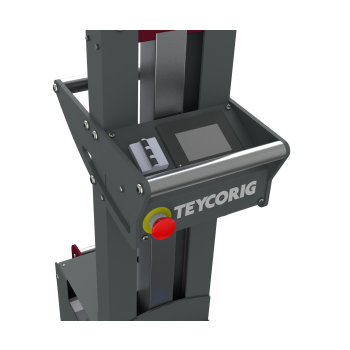

Also in the Overgrid version with a trolley for XY scrolling and a touch control panel.

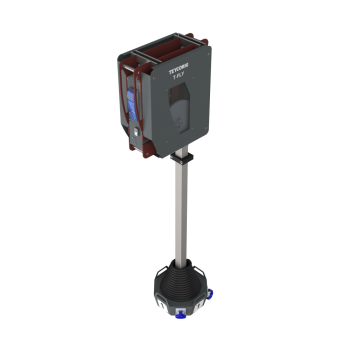

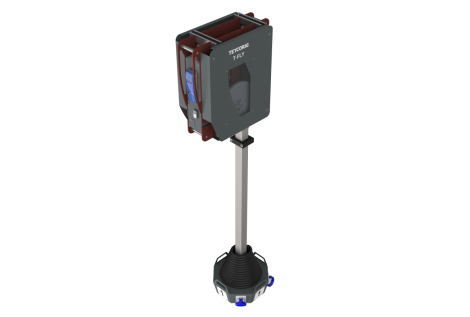

  • HTU ‐ Undergrid for up to 15m drop

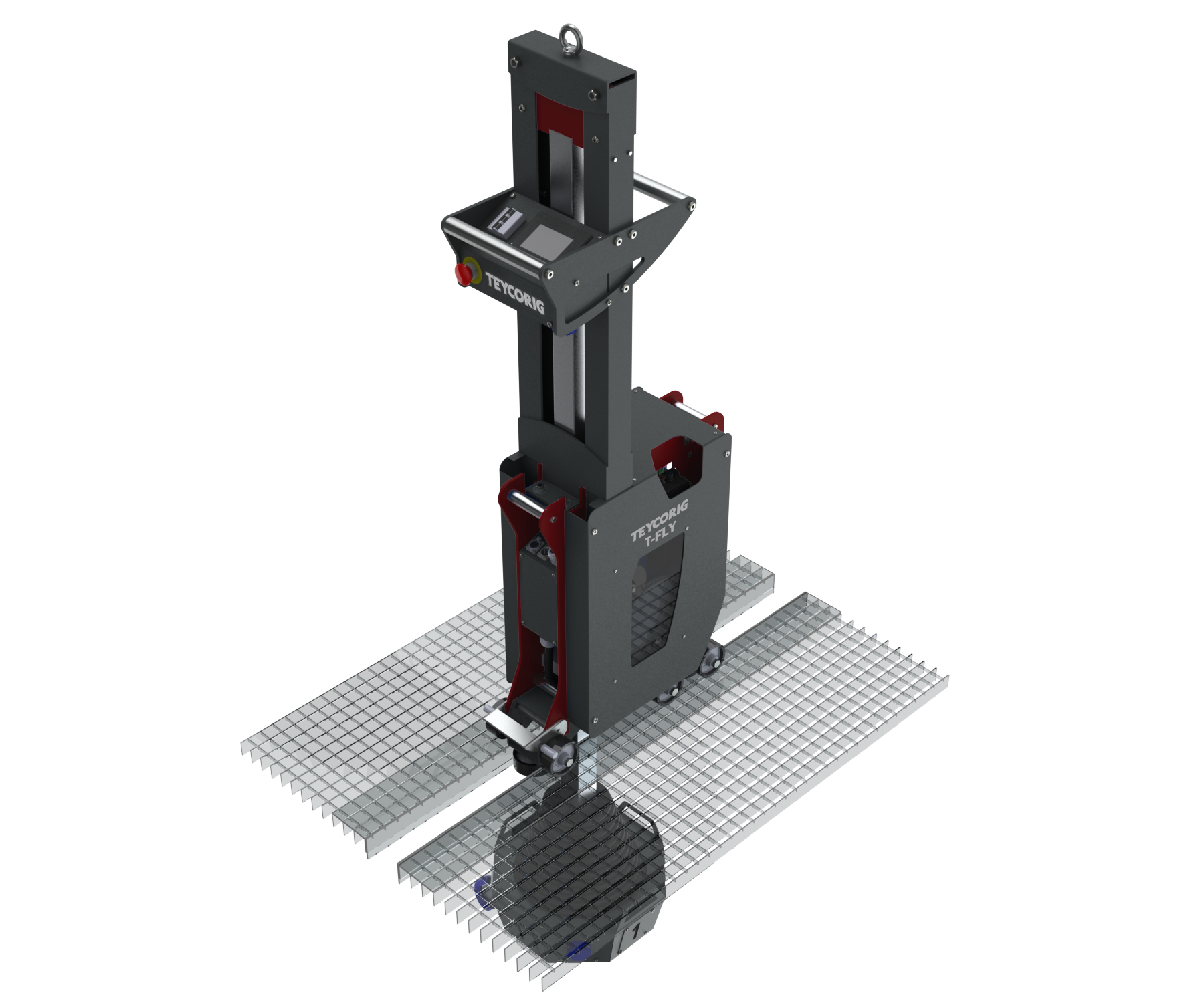

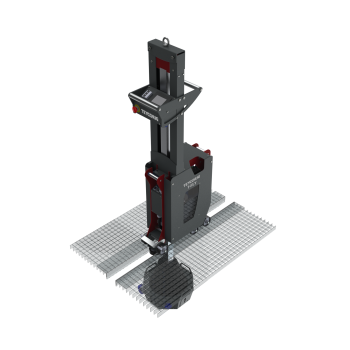

  • HTG ‐ Overgrid for up to 14m drop
  • Lifting capacity up to 75Kg
  • Integrated drive unit for variable speed available for 3 phase or single phase main supply
  • Dedicated software to manage all the telescope functions
  • Stainless steel telescopic square pipes
  • Estension drops available as standard, other available on request
  • Standard control input 24Vdc on XLR3
  • Optional control input for RS485/CAN on XLR4
  • Optional DMX control on XLR5
  • Standard spiral cable Kit available with 2 circuits 16 or 25A plus DMX or Ethernet
  • Standard bottom cable basket available with 8 faces plates for sockets or identification numbers
  • Bottom universal bushing 29/16mm plus integrated unistrut to interface any type of equipments
