Aluminum towers 29 cm section

Code: P30Q T - B30Q T
Category : Aluminum Towers

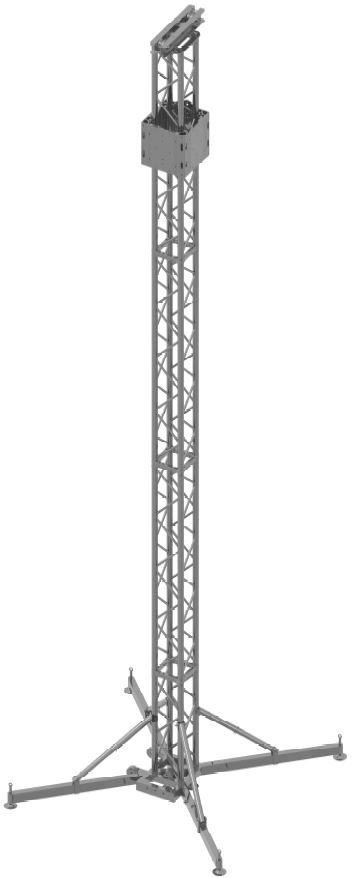

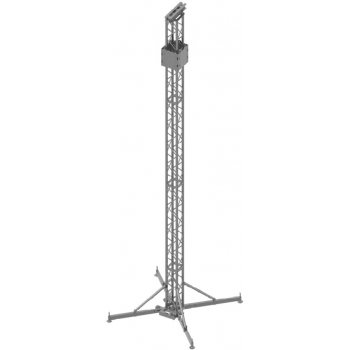

Aluminium tower, 29 cm side, maximum height 7 meters (8m with HD trusses), capacity 1000 kg
Technical information
Main tubes base tower Ø 50x3 mm
Diagonals base tower Ø 20x2 mm

Connection system
Aluminum spigots and conical pins with "R"

Finishing
Natural aluminum or customized painting

Applications
Ideal for fixed installations, exhibition stands, TV studios, entertainment facilities

The new P30Q T tower has been designed to be used with P30Q and B30Q trusses.

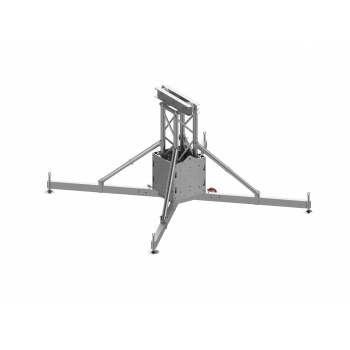

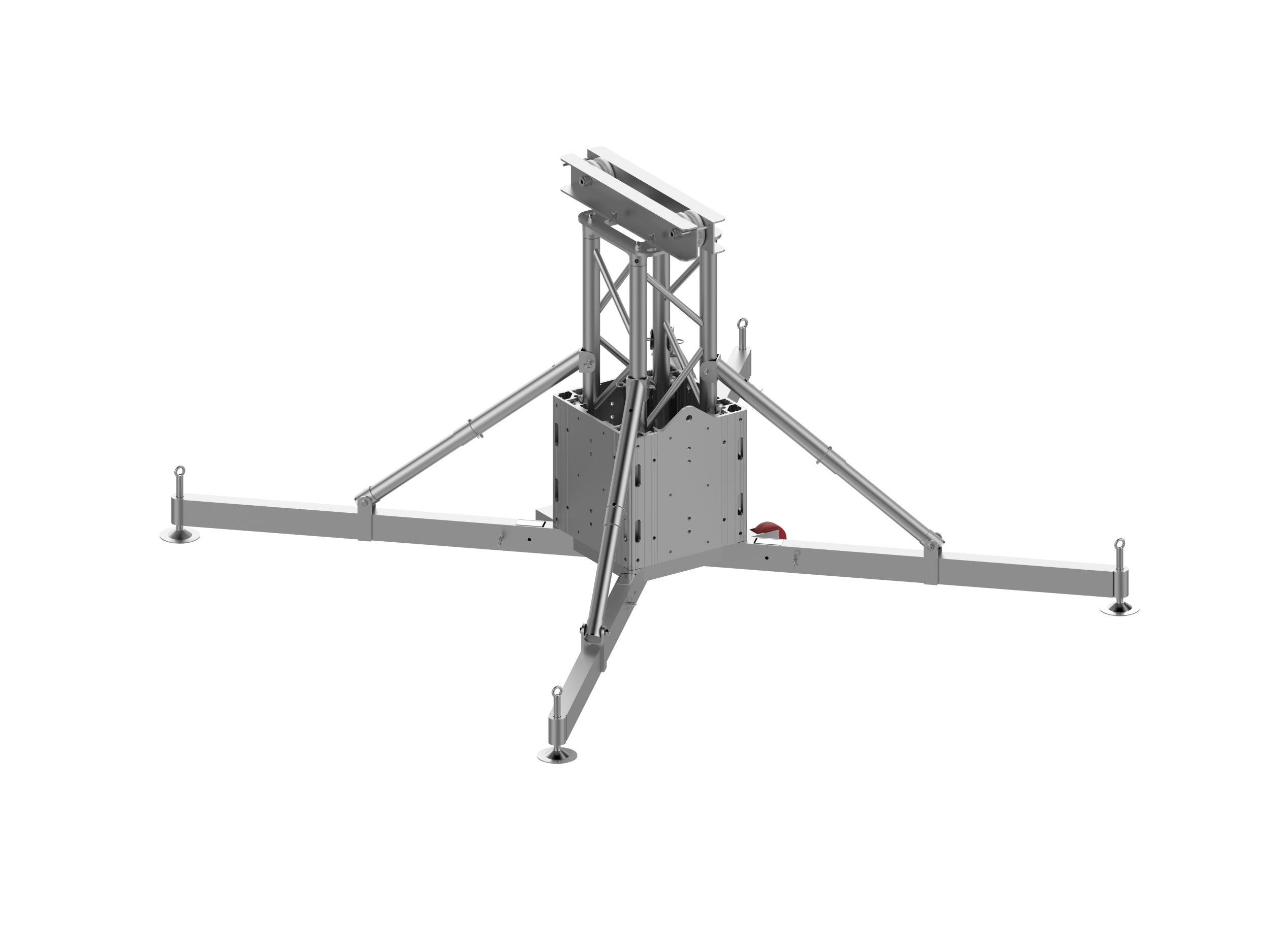

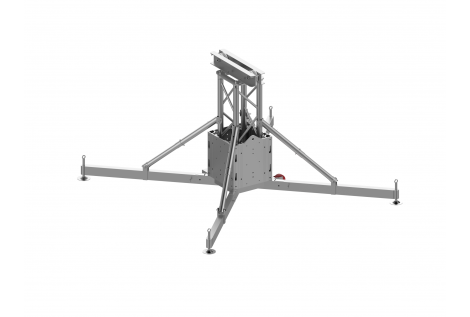

A quick and comfortable solution was studied, in which the sliding corner block, once the entire tower is closed, remains inside the tower without compromising volume or displacement.

The new sliding corner block allows to connect trusses of section 30 and 40 in each side.

P30Q T Data Sheet (1,05 MB)
