PF512

Category : Pantographs

Code: PF512

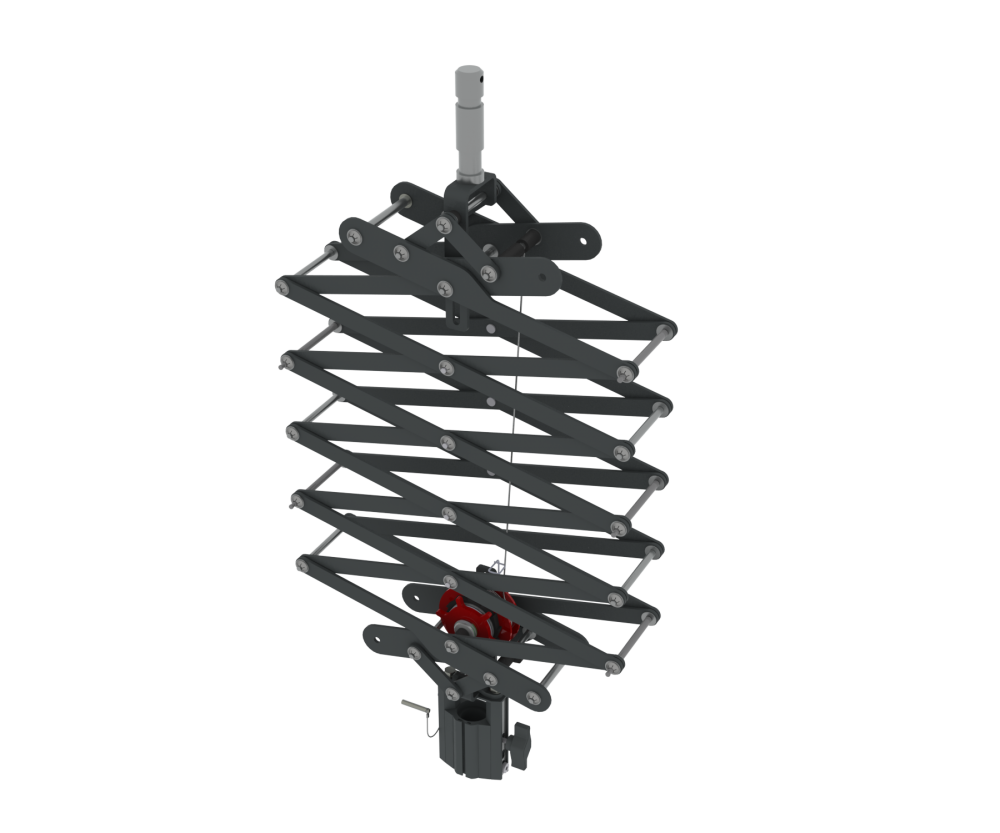

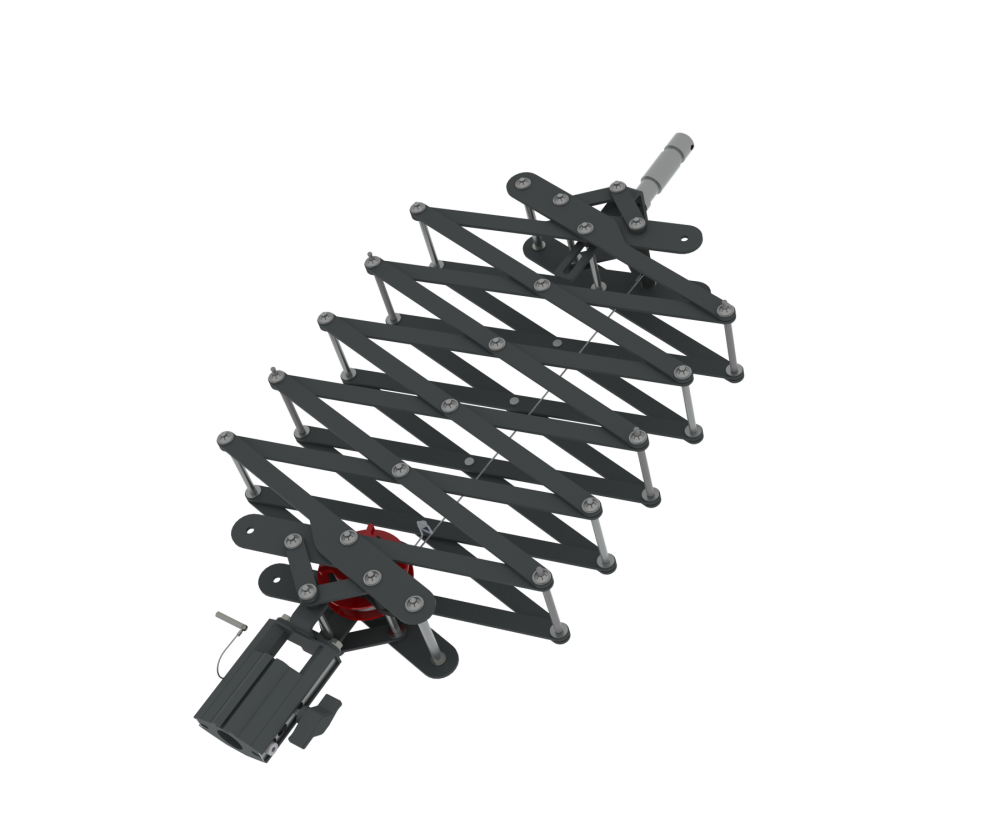

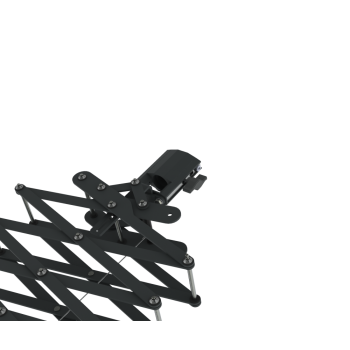

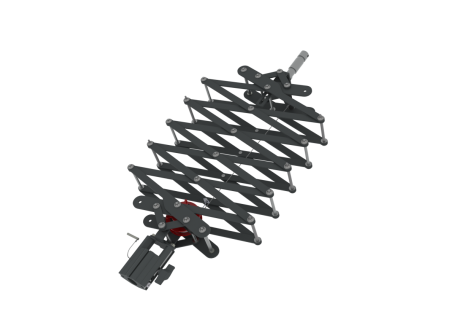

Friction pantograph
Highly recommended for medium and small studios.Made of aluminium, its double scissor design guarantees maximum stability.

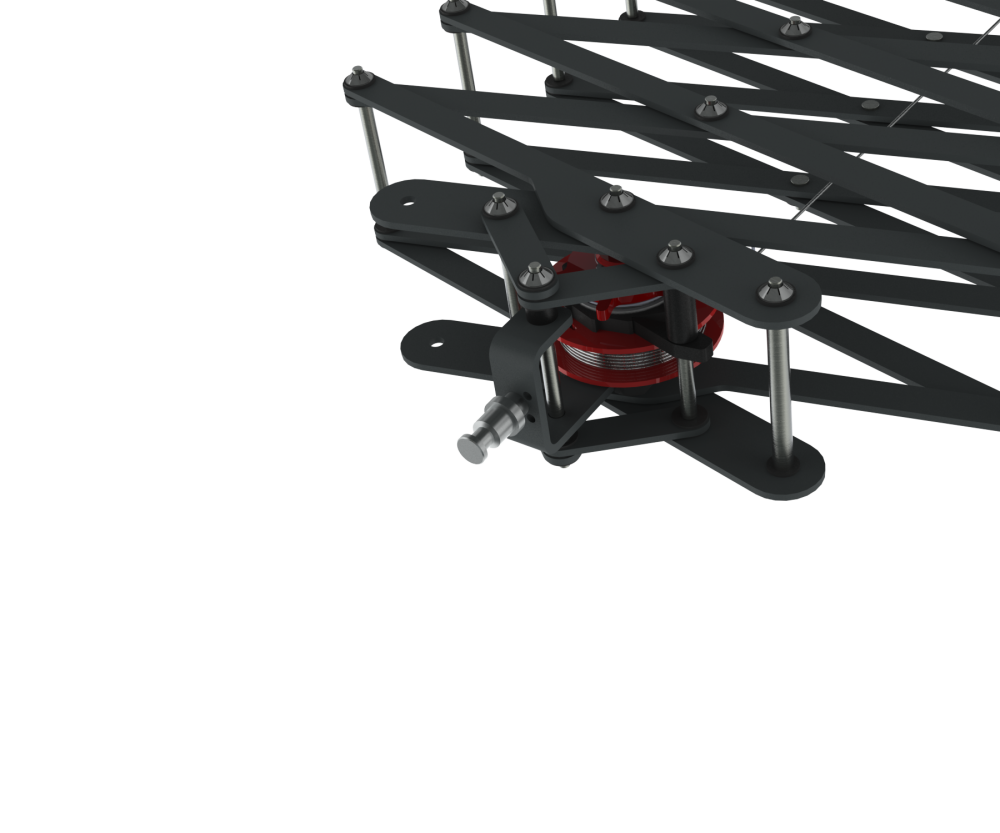

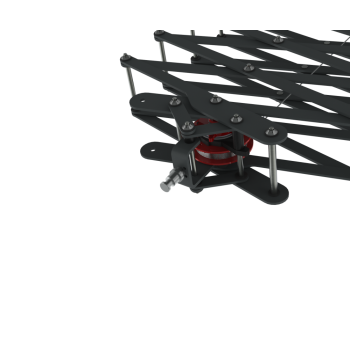

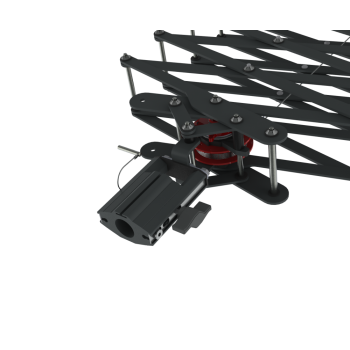

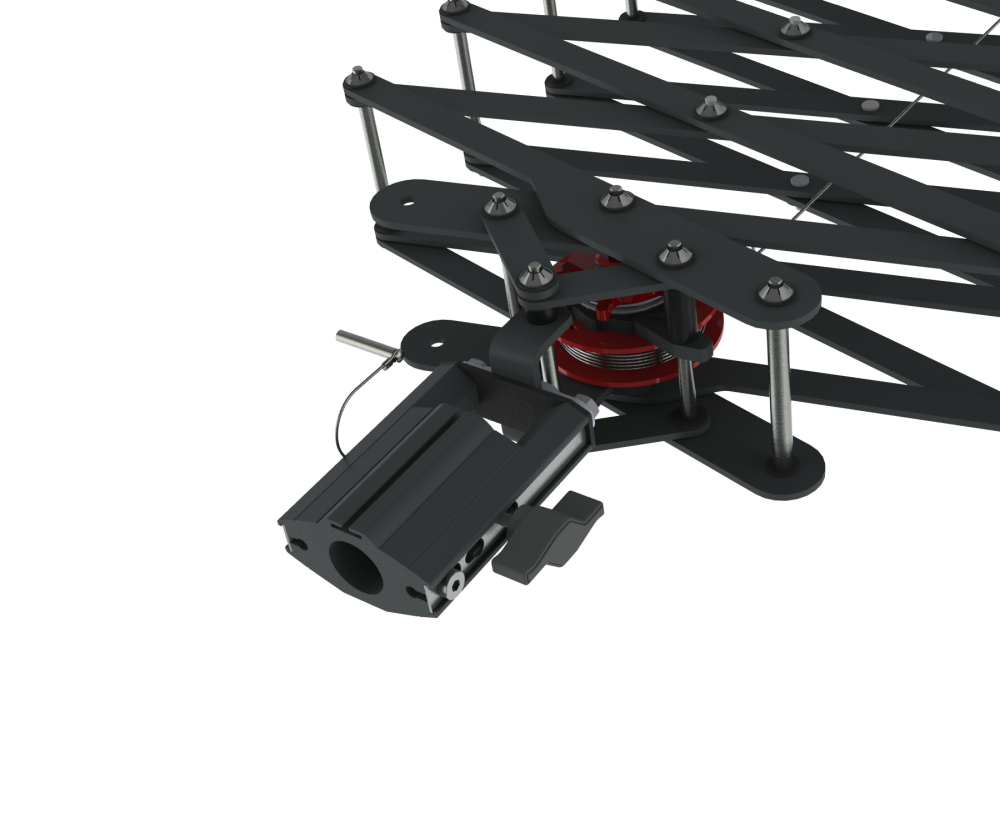

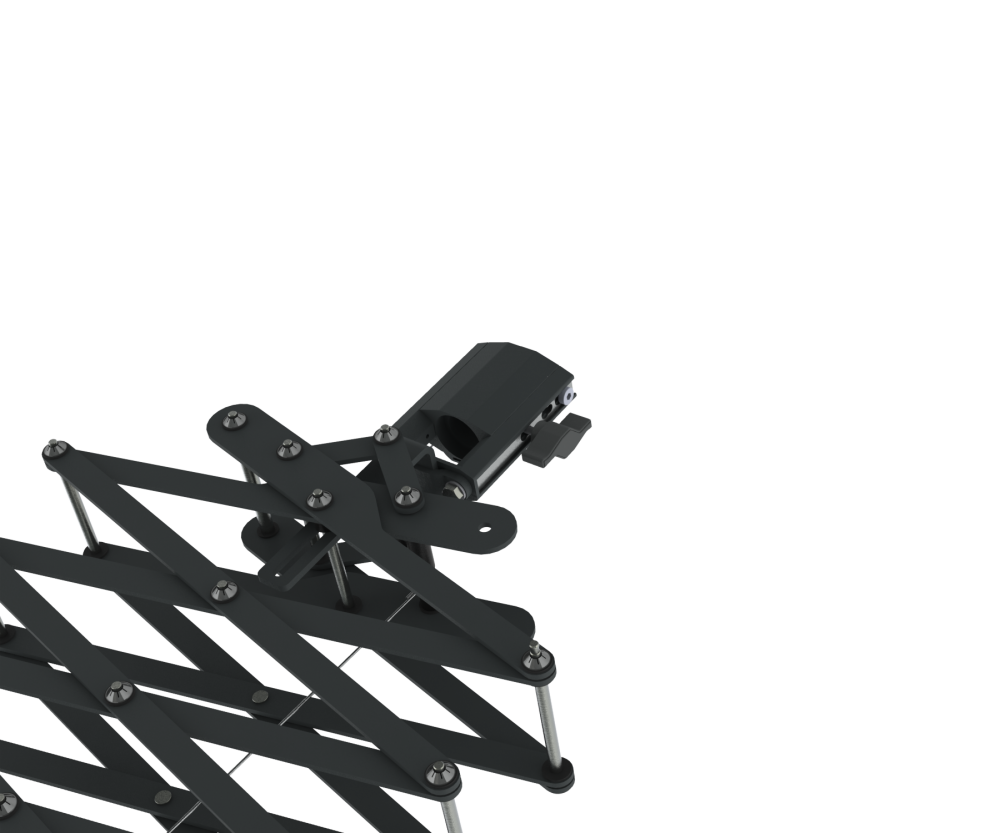

The friction device allows the pantograph to float when set into position moving easily up & down.

**TECHNICAL SPECIFICATIONS**
Lifting rope size	2 mm
Rope safety factor	10
Self weight	4.6 kg
Maximum capacity	22 kg
Closed lenght	27 cm
Maximum extension	200 cm

Code	Description

PF512	Friction pantograph 2m main body
PF512A59	Friction pantograph 2m with spigot-bushing 28 / 29mm and spring type 6
PF512A86	Friction pantograph 2m with bushing-spigot 16 / 16mm and spring type 6
PF512A88	Friction pantograph 2m with bushing-bushing 16 / 16mm and spring type 6
PF512B59	Friction pantograph 2m with spigot-bushing 28 / 29mm and springs type 6 + 6
PF512C59	Friction pantograph 2m with spigot-bushing 28 / 29mm and spring type 12
PF512D59	Friction pantograph 2m with spigot-bushing 28 / 29mm and springs type 6 + 12
PF512N06	Friction pantograph 2m with t6 carriage and 16mm spigot without springs
PF512N16	Friction pantograph 2m with t8 carriage and 16mm spigot without springs
PF512N59	Friction pantograph 2m with spigot-bushing 28 / 29mm without springs
PF512N86	Friction pantograph 2m with bushing-spigot 16 / 16mm without springs
PF512NN6	Friction pantograph 2m with spigot 16mm bottom side without springs
