PF514

Code: PF514
Category : Pantographs

Code: PF514

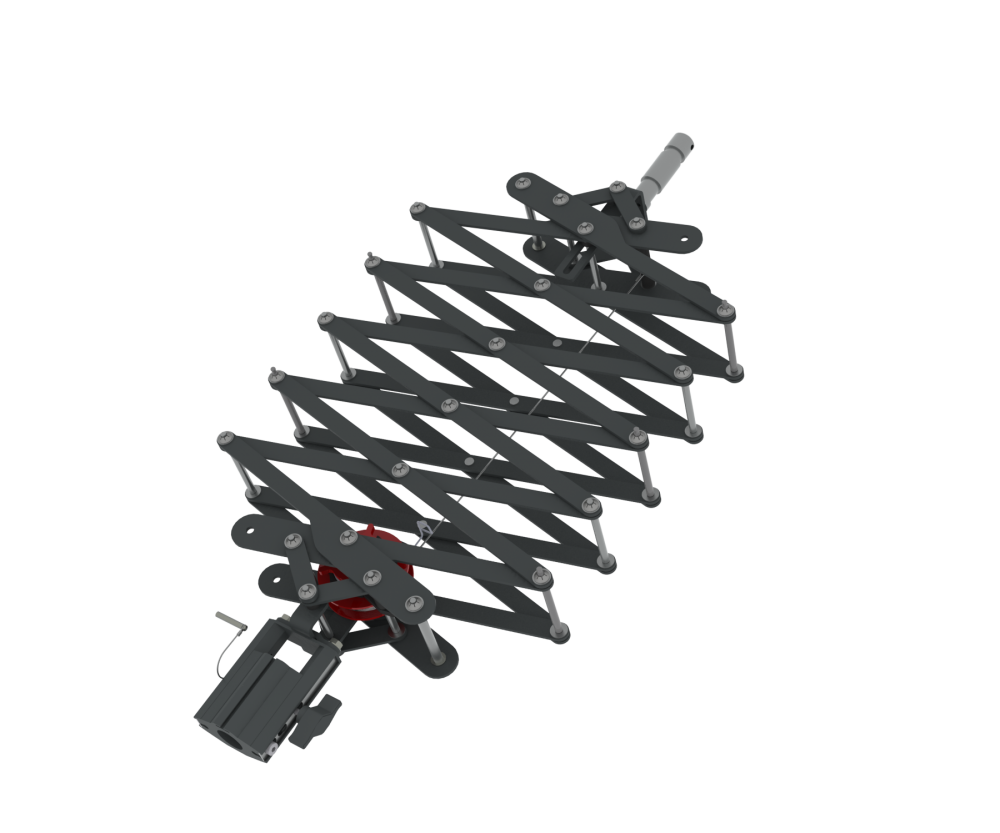

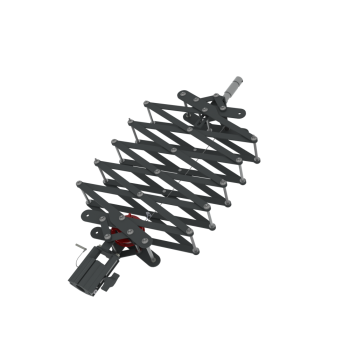

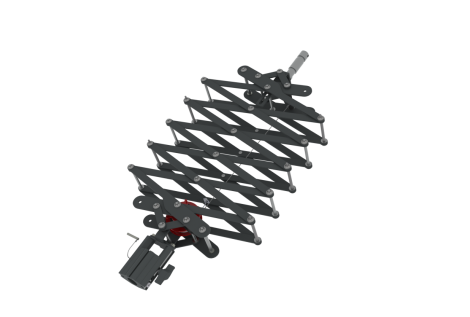

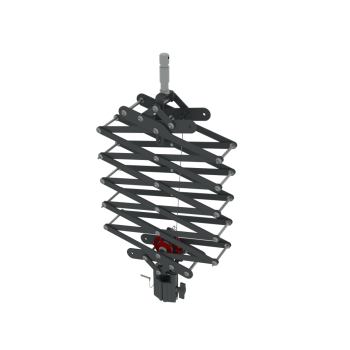

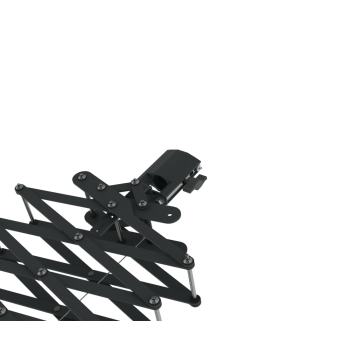

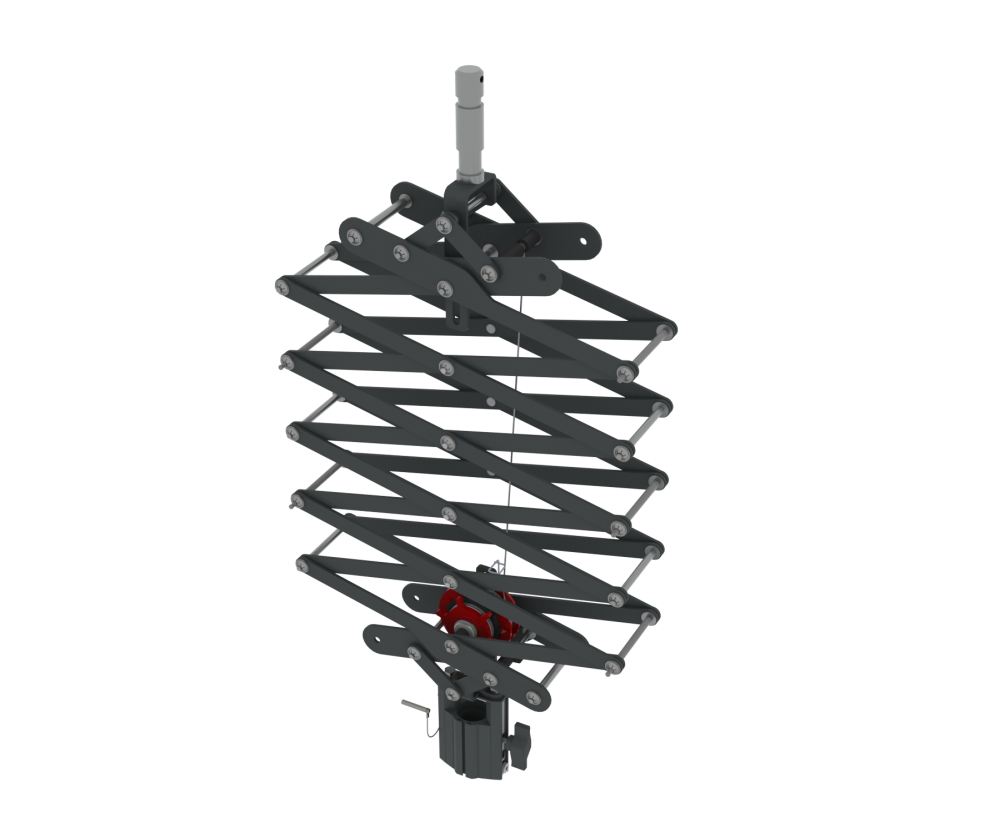

Friction pantograph

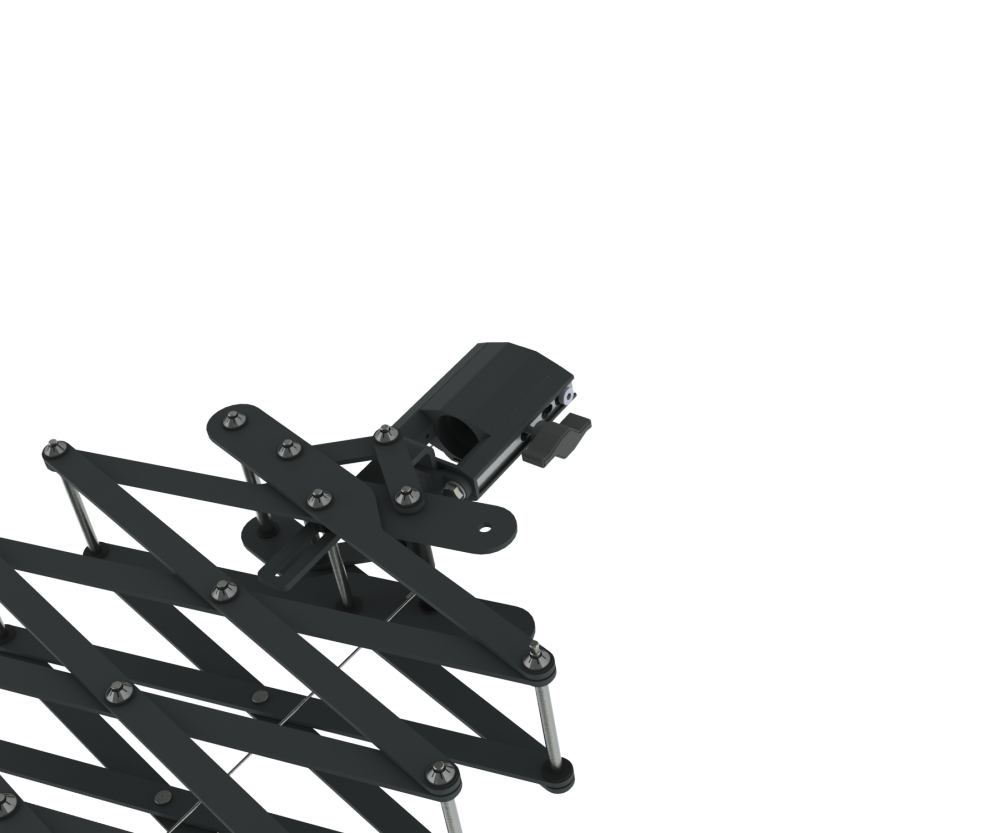

Highly recommended for medium and small studios. Made of aluminium, its double scissor design guarantees maximum stability.

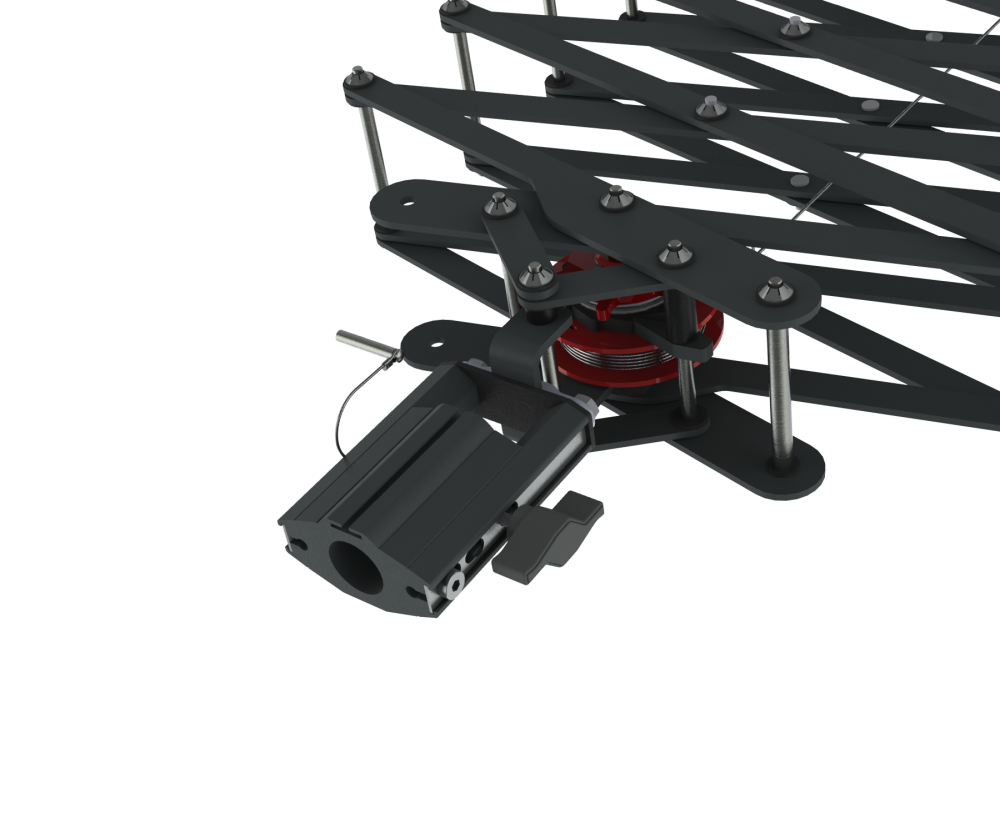

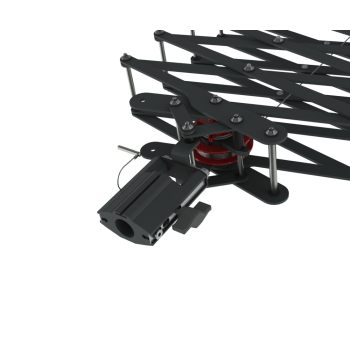

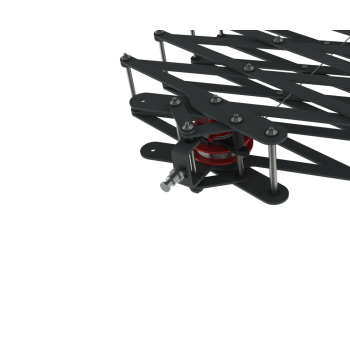

The friction device allows the pantograph to float when set into position moving easily up & down.

**TECHNICAL SPECIFICATIONS**
Lisfing rope size	2 mm
Rope safety factor	10
Selft weight	7.8 kg
Maximum capacity	22 kg
Closed lenght	38 cm
Maximum extension	380 cm

Code	Description

PF514	Friction pantograph 4m main body
PF514A59	Friction pantograph 4m with spigot-bushing 28 / 29mm and spring type 6
PF514A86	Friction pantograph 4m with bushing-spigot 16 / 16mm and spring type 6
PF514A88	Friction pantograph 4m with bushing-bushing 16 / 16mm and spring type 6
PF514B59	Friction pantograph 4m with spigot-bushing 28 / 29mm and springs type 6 + 6
PF514C59	Friction pantograph 4m with spigot-bushing 28 / 29mm and spring type 12
PF514D59	Friction pantograph 4m with spigot-bushing 28 / 29mm and springs type 6 + 12
PF514N06	Friction pantograph 4m with t6 carriage and 16mm spigot without springs
PF514N16	Friction pantograph 4m with t8 carriage and 16mm spigot without springs
PF514N59	Friction pantograph 4m with spigot-bushing 28 / 29mm without springs
PF514N86	Friction pantograph 4m with bushing-spigot 16 / 16mm without springs
PF514NN6	Friction pantograph 4m with spigot 16mm bottom side without springs
