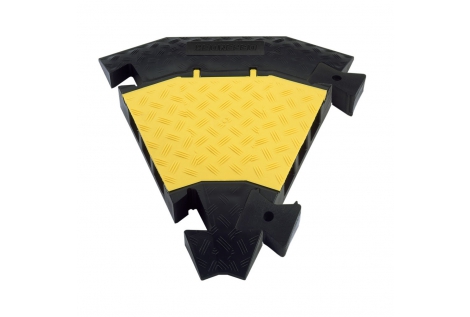

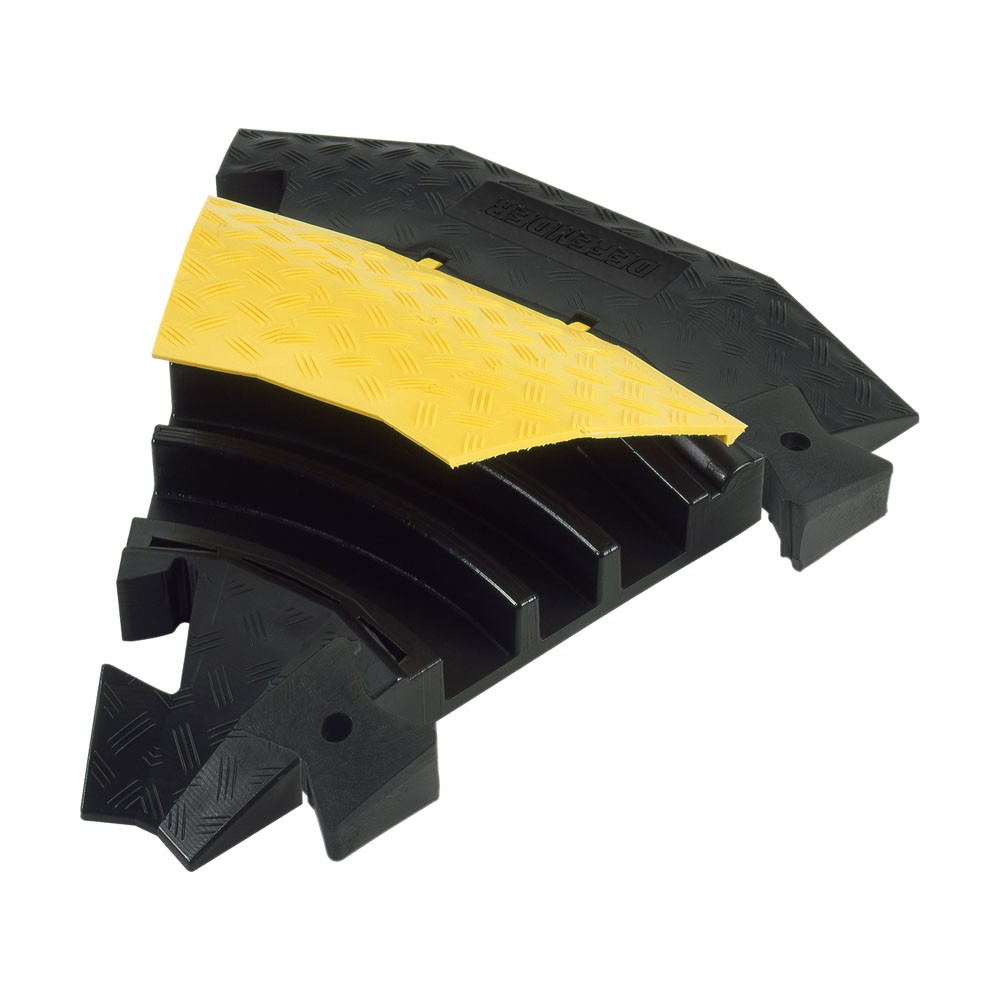

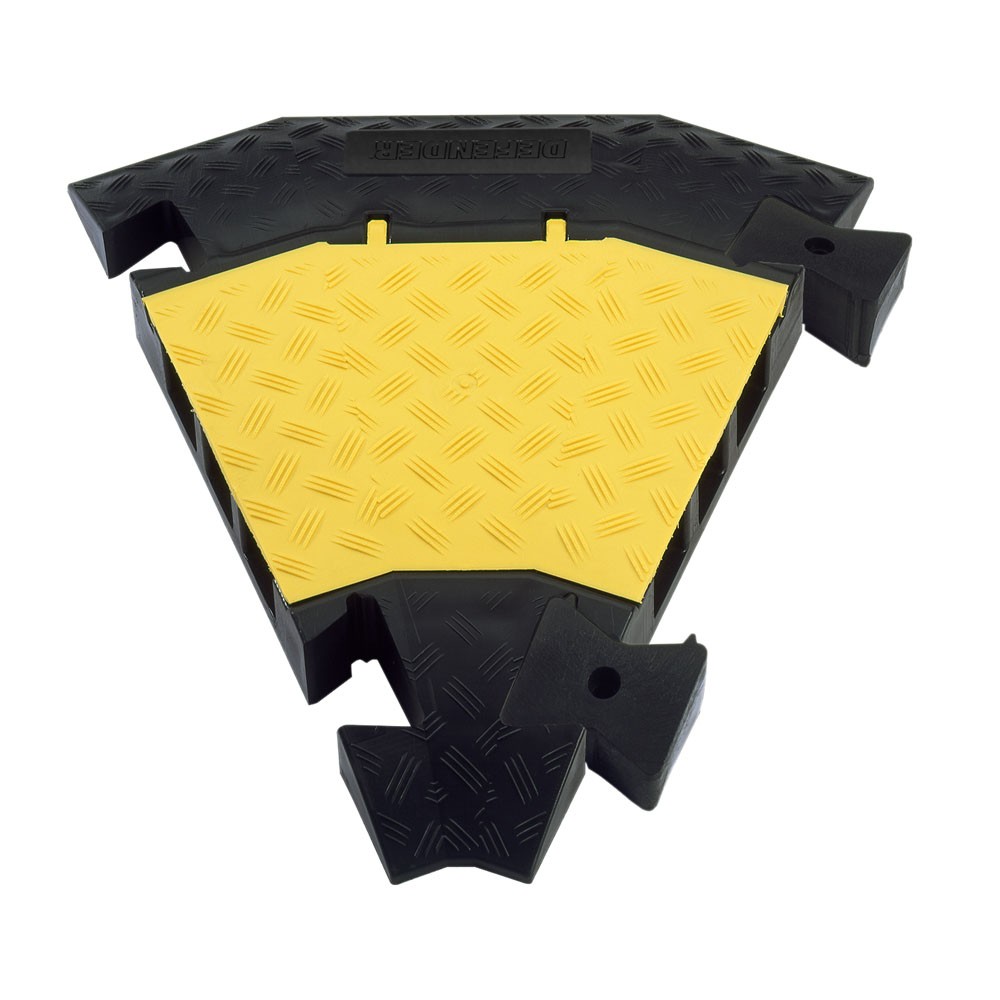

45 ° angle for 3-way cable entry system
With a height of 73 mm, detachable dovetail junction pins as well as 45 ° bends and final ramps as an accessory, the versatile Defender® III cable glands are ideal for cable laying and safe passage of vehicles and pedestrians . Defender® III platforms are characterized by 3 medium cable ducts, integrated handles for optimal transportability and a load capacity of 5 tons on a 20 x 20 cm surface. In this way, 73 mm high cable glands are the perfect all-round solution for various uses, such as heavy traffic on wheels, construction sites, warehouses, shopping centers, fairs, exhibitions, carnivals and musical events.
Technical information
- Non-slip universal high-resistance cable glands in black recyclable polyurethane with integrated handles
- Yellow polyethylene cover with high signaling effect and secure locking
- Self-cleaning patented cover hinge
- 3 conduits: 1 conduit 45 x 50 mm, 2 conduits 52 x 49 mm
- Load capacity approx. 5 t / 20 cm²
- Fire protection class B2 (DIN 4102), DEKRA certificate (DIN 31000, EN 61537)
- Resistant to oil, acid, solvent and petrol
- Weight 5.226 kg
- Reliable protection of people and cables for indoor and outdoor use
