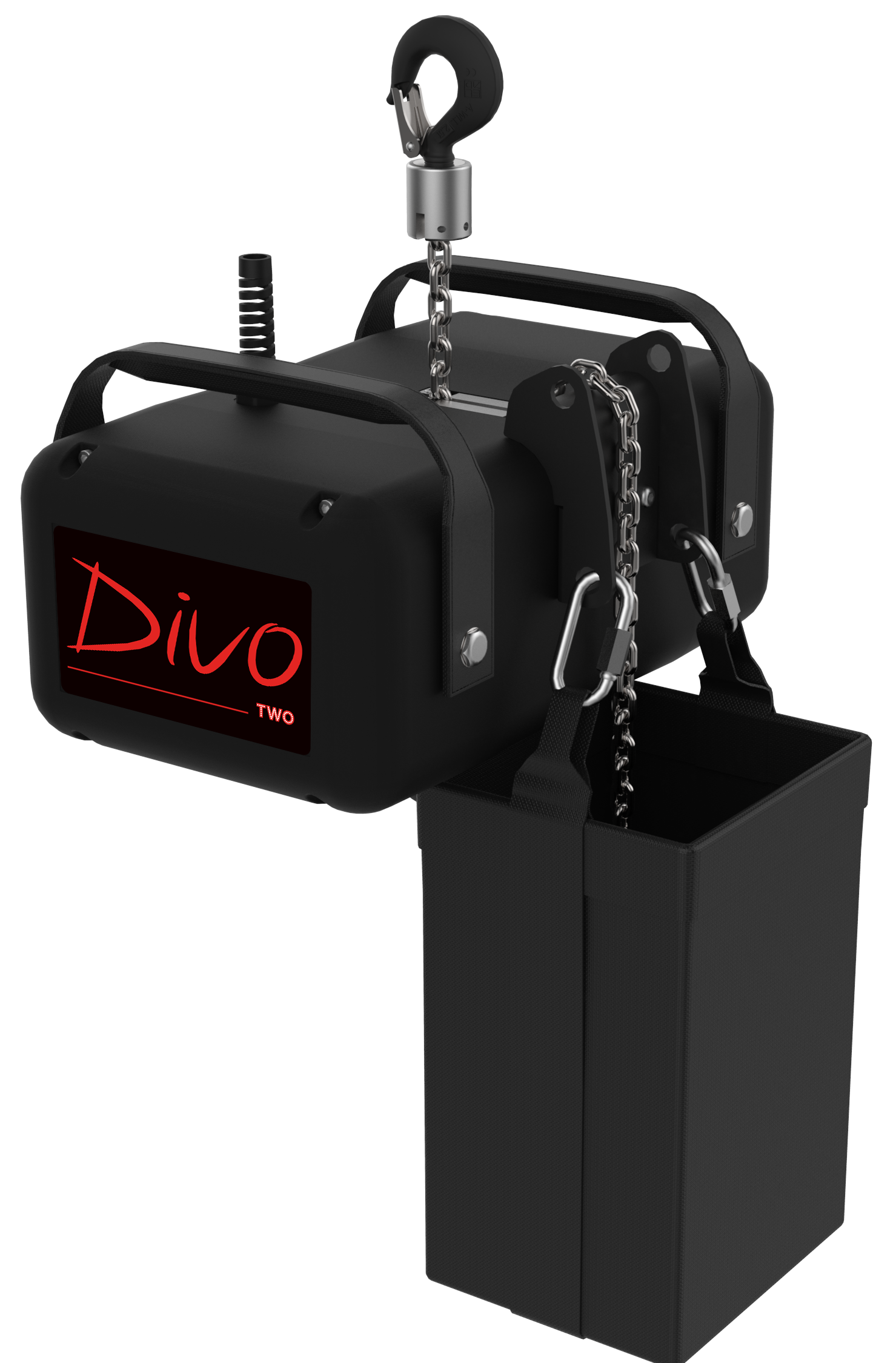

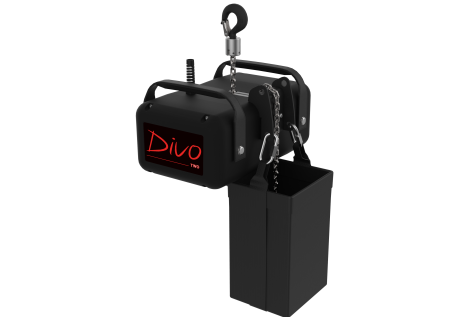

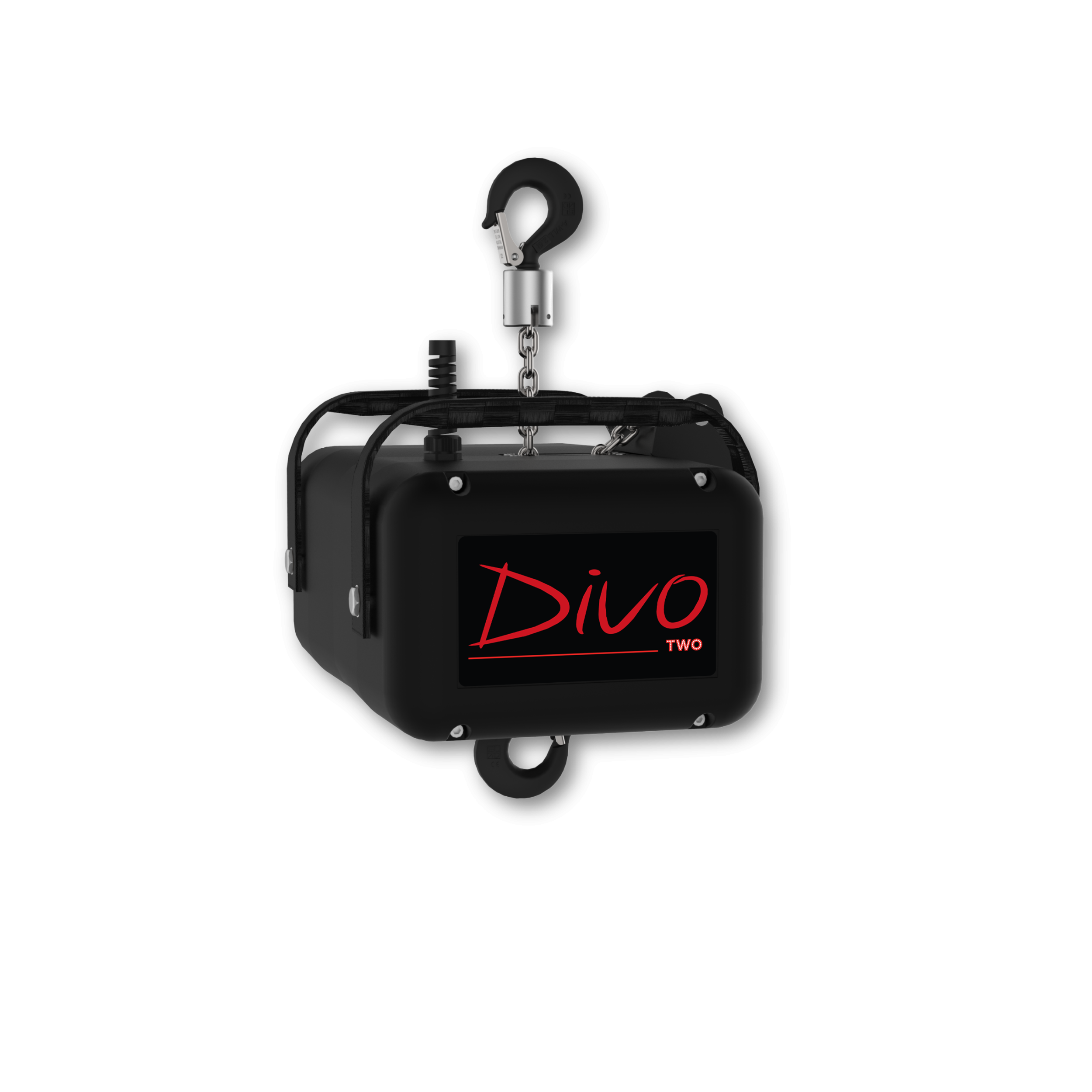

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the
IGVW SQP2 guideline
Low Voltage available.
TECHNICAL SPECIFICATIONS
| Load capacity |
320 kg |
| Lifting speed at 50 Hz |
4m / min |
| Operating voltage |
400V 50 Hz |
| Protection Class |
IP 55 DIN 40050 |
| Motor power at 50 Hz |
0.37 kW |
| FEM Class |
2m |
| DC braking system |
2 brakes |
| Noise level |
<67.5 dB (full load) |
| Loading wheel |
6 pockets |
| RUD® Load chain |
5x15 mm |
| Number of chains |
1 |
| Chain weight |
0.54 kg / m |
| Weight of the body |
34 Kg |
| Type of control |
Direct Control |
| Type of connector | Red Plug |
400V EEC 16A - 3P + T |
| Climbing use |
permitted |
| Safety factor |
10: 1 |
| Load cell |
Optional |
| Stromag® Limit Switch with 4 switches |
Optional |
