Code: HFP

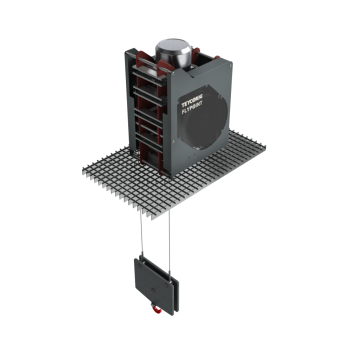

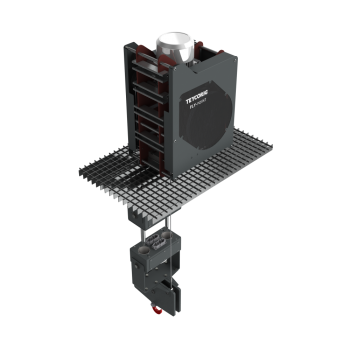

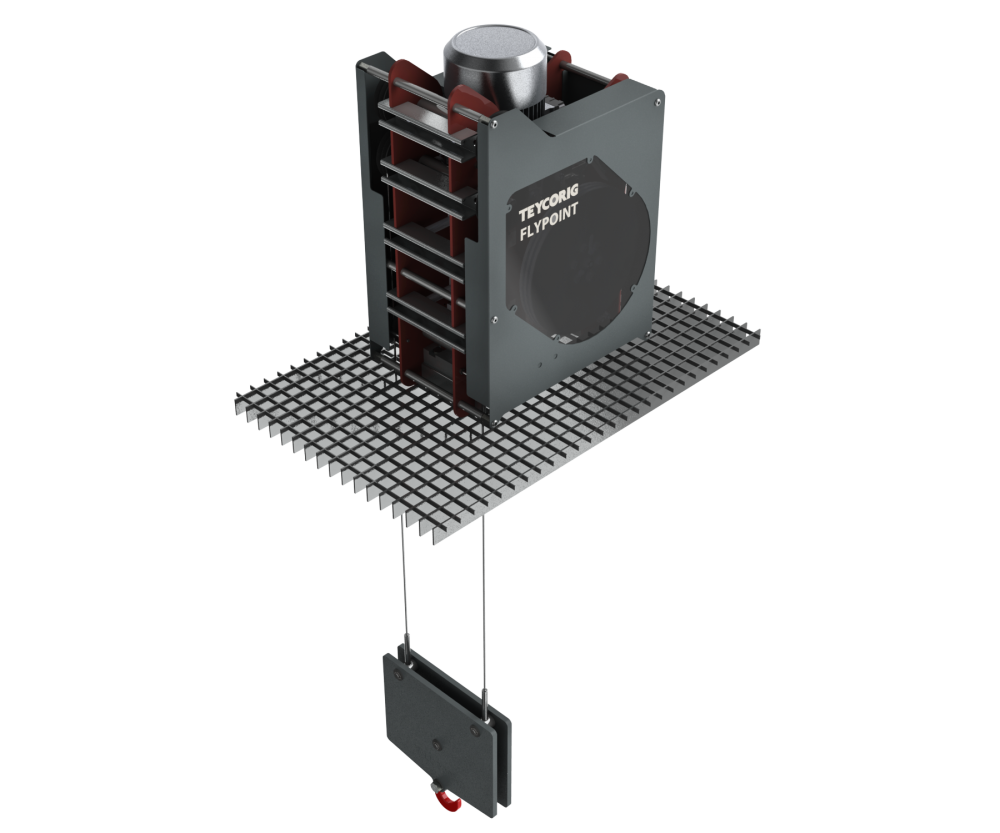

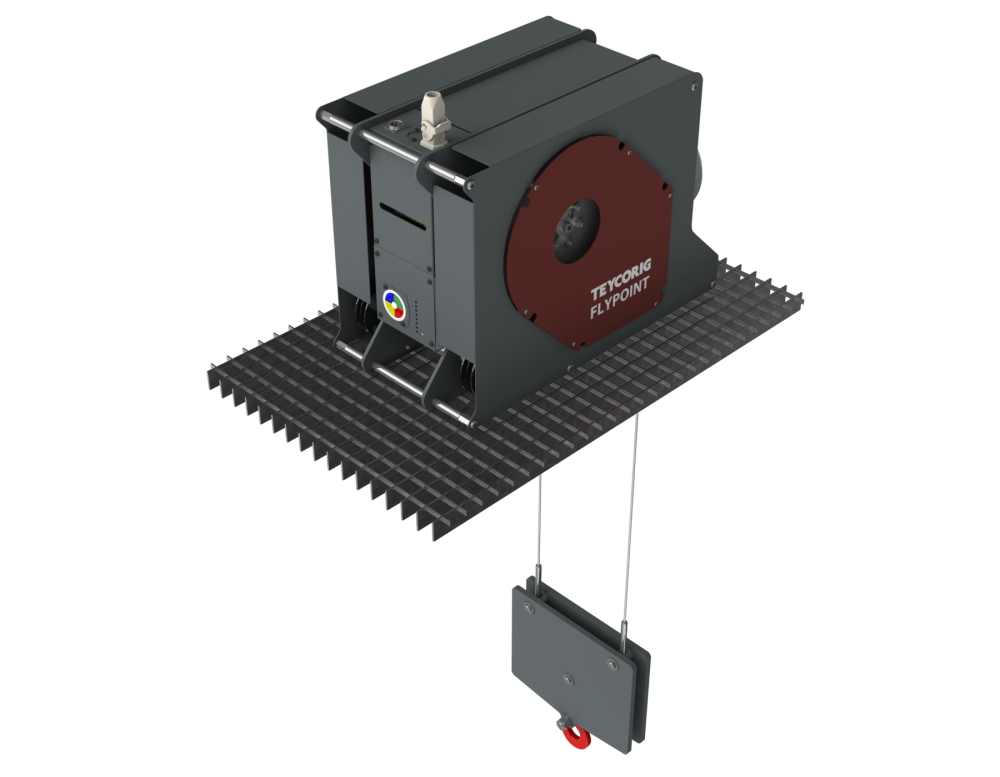

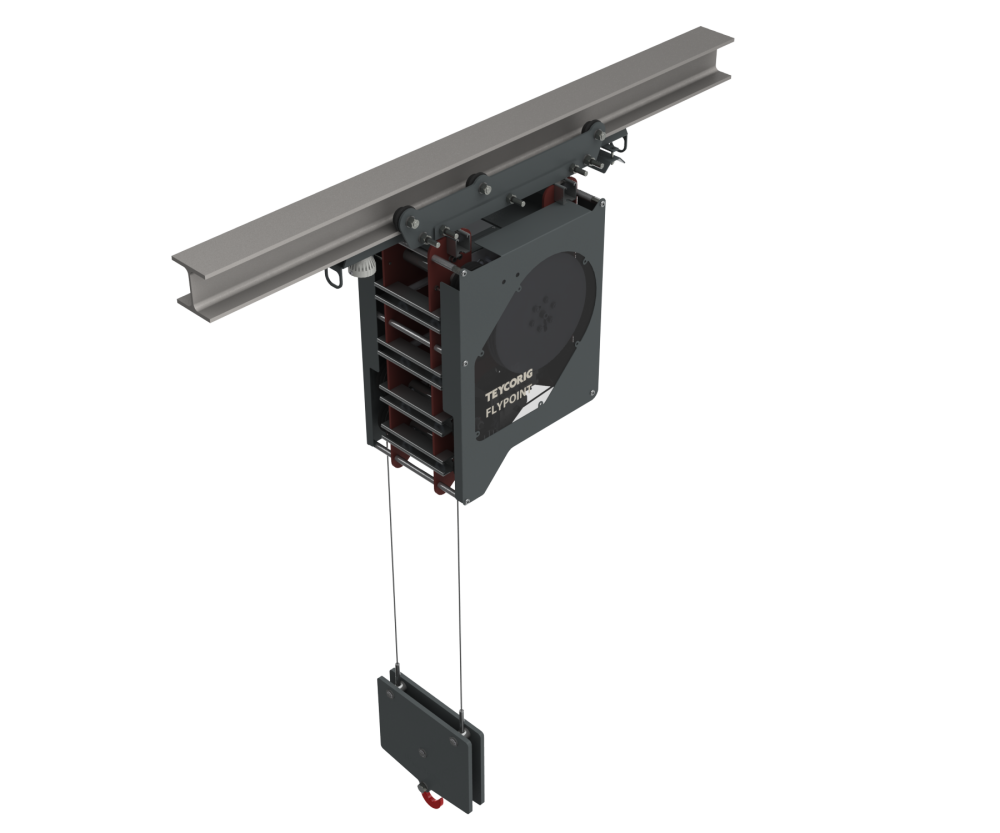

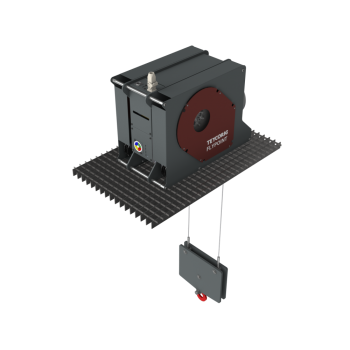

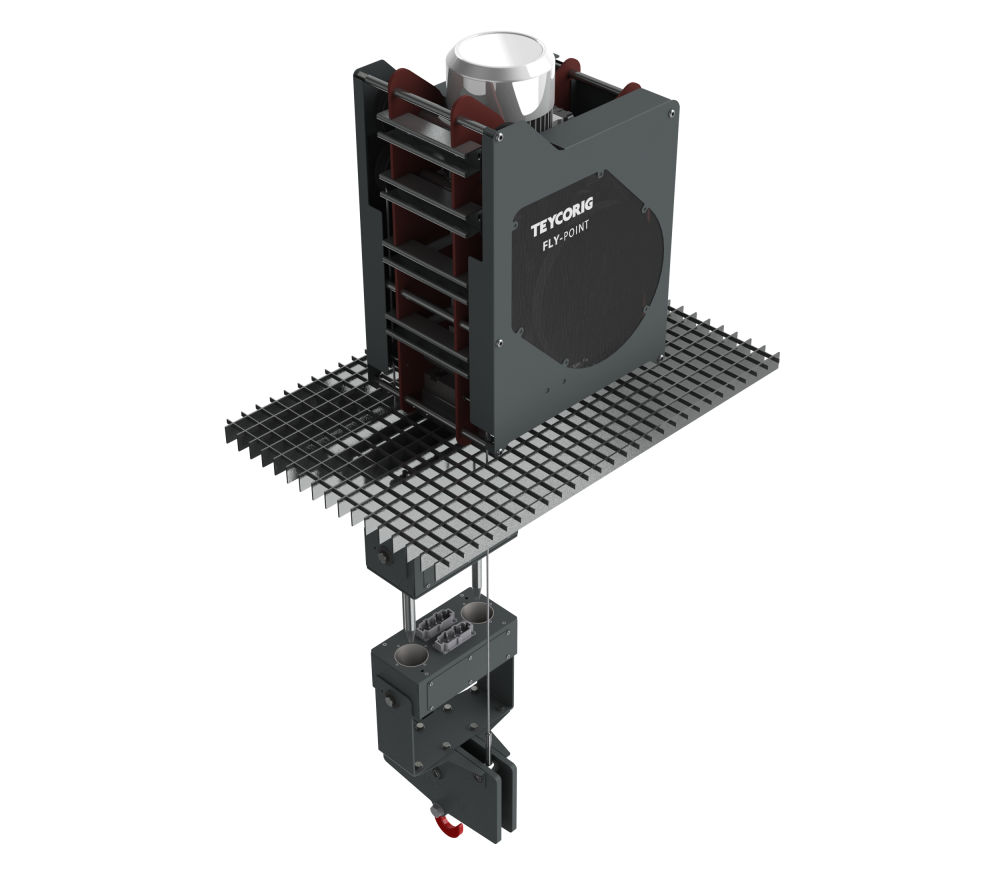

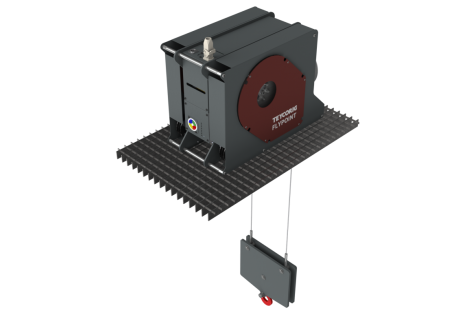

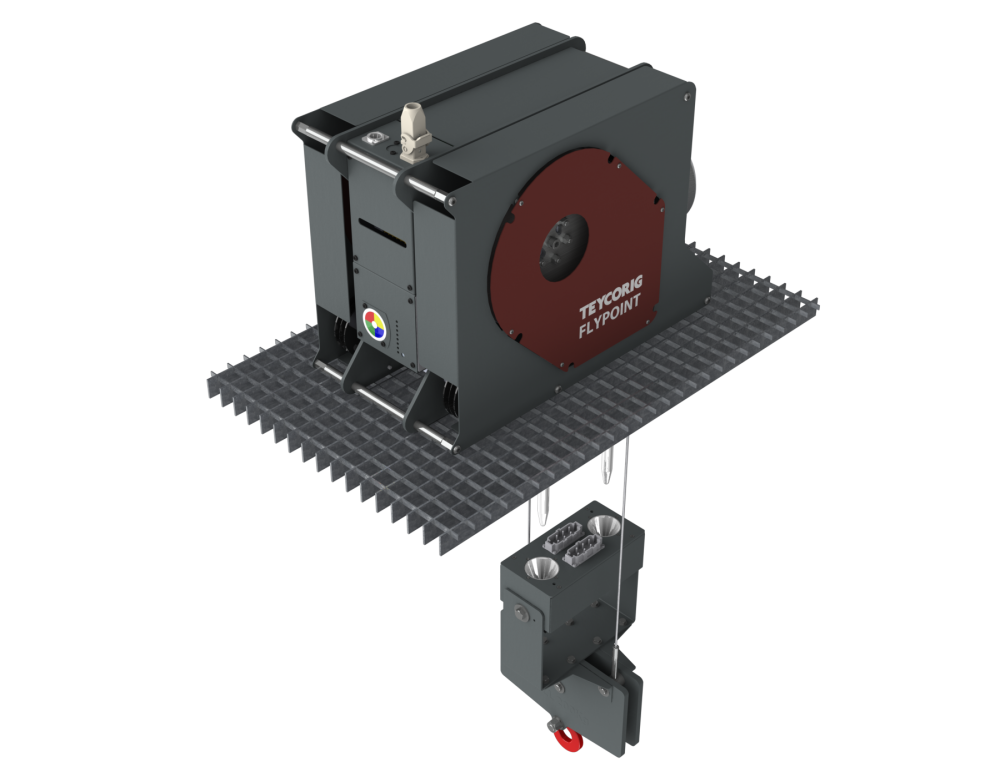

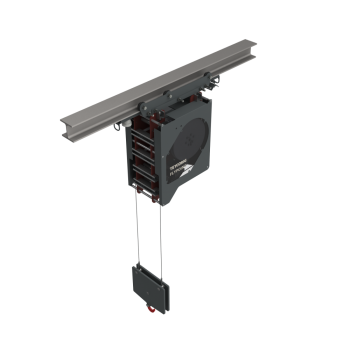

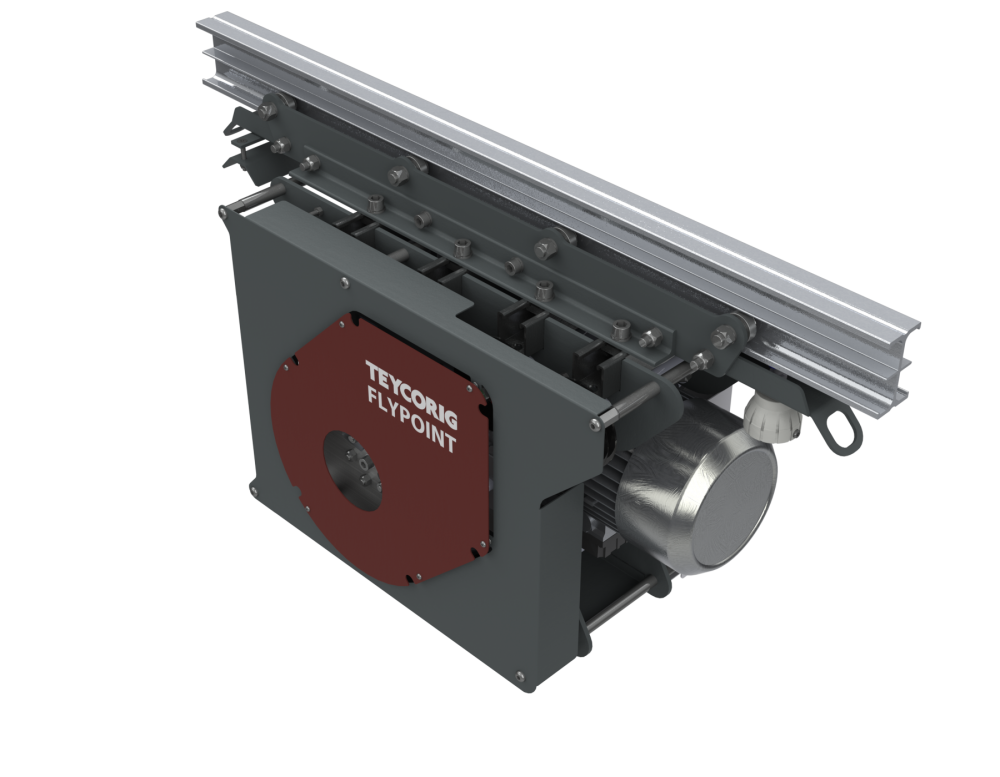

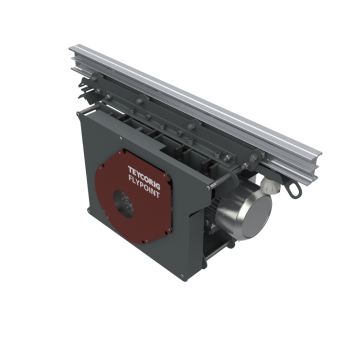

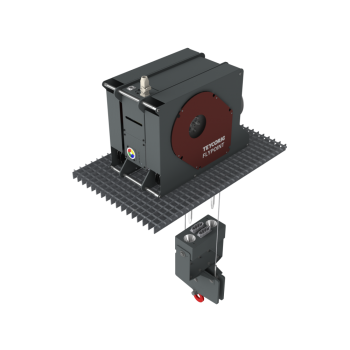

The FLYPOINT 200, the perfect solution in combination with lighting hoist, to make easy the TV Studio setup with scenography, truss system, audio clusters, etc.. Available with Manual and Motorized carriage to move the Point Hoist along the Studio area. Installation for over grid, under grid, side wall, false ceiling, for Theatre stage, Auditoriums, Architectural venues. Available as Chandelier hoist and any high ceiling application with a total drop up to 16m height. Supplied pre-assembled, completely ready and easy to install for fixed or trackable installation.
TECHNICAL SPECIFICATIONS
| |
HFP200T120 | 140 |
HFP200H120 | 140 |
| |
|
|
| Maximum drop |
12000 | 14000 mm |
12000 | 14000 mm |
| Security factor |
10 |
10 |
| Maximum capacity |
200 kg |
250 kg |
| Closed height "overgrid" |
500 mm |
500 mm |
| Closed height "undergrid" |
1000 mm |
1000 mm |
| Speed |
4 m / min |
4 m / min |
| Engine power |
1.5 Kw |
1.85 Kw |
| Single brake |
On request |
On request | Standard |
| Double brake |
On request |
On request |
| Inverter for variable speed |
On request |
On request |
