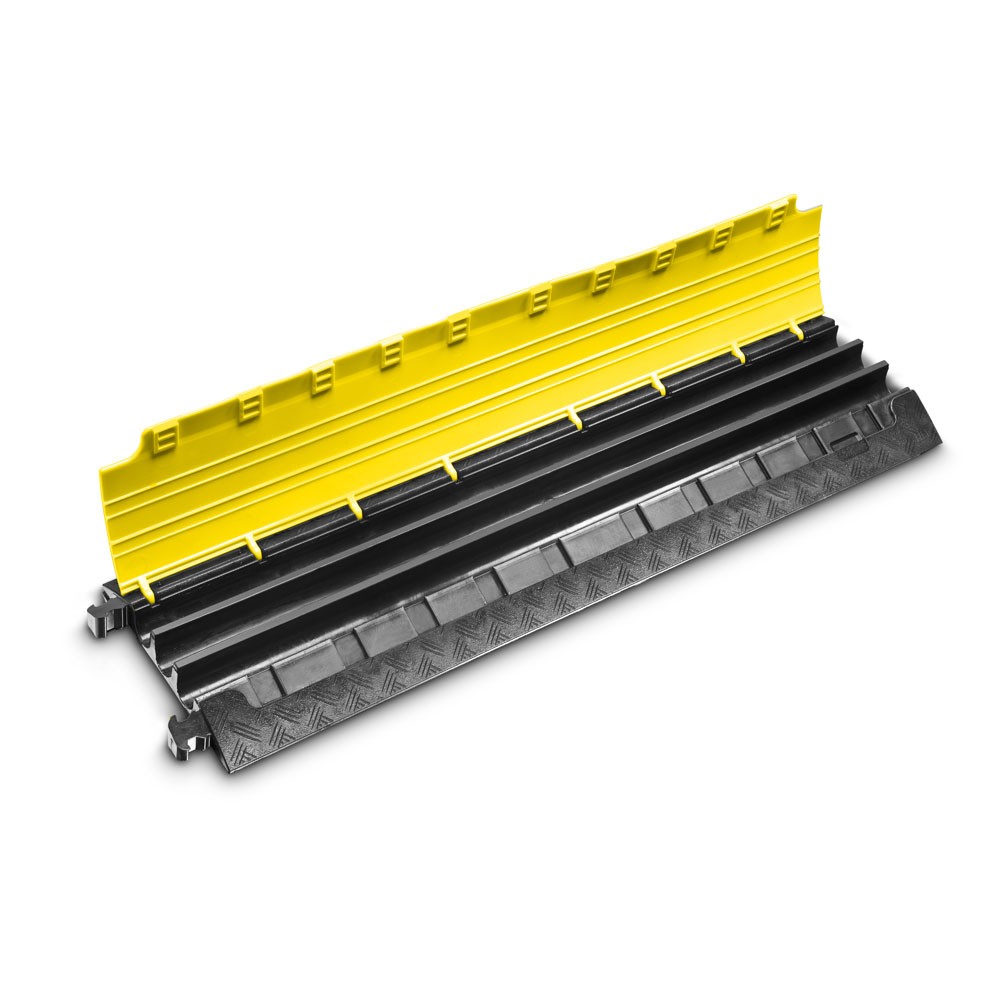

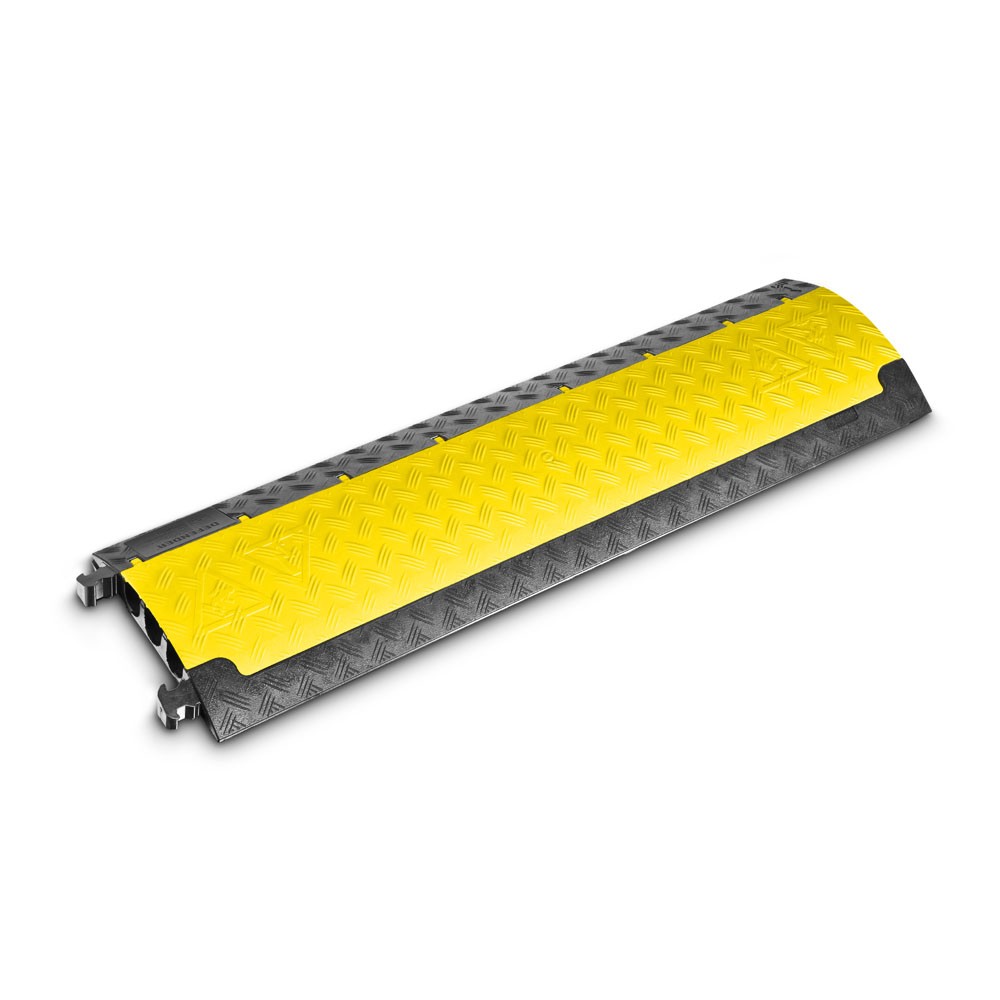

Cable gland with 3 cable ducts
The Defender® MINI cable tray is available with a black or yellow cover and is suitable for both indoor and outdoor use. The cable duct with 3 ducts is flat and compact and is equipped with integrated joint pins and a non-slip base to guarantee an optimal seal on the different floors. The terminal ramps available separately (male / female) ensure correct and safe insertion and removal of the cables. Defender MINI cable trays have a capacity of 2 tons on a surface of 20 x 20 cm and allow the crossing of light vehicles, trolleys and pedestrians. They can be used in carnival events, fairs, exhibitions, shopping malls and warehouses, as well as stages, studios and television stations. Not suitable for road traffic.
Technical information
- Compact anti-slip fairlead in recyclable black polyurethane
- Yellow polyethylene cover with high signaling effect and safety lock (also available with black cover, item code 85200BLK)
- Hinge of the patented self-cleaning cover

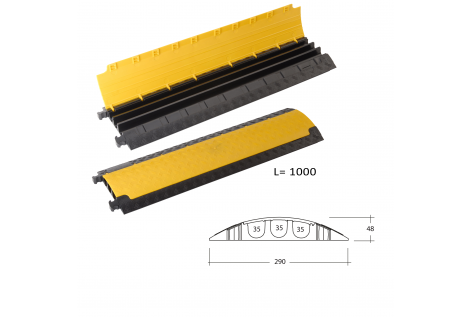

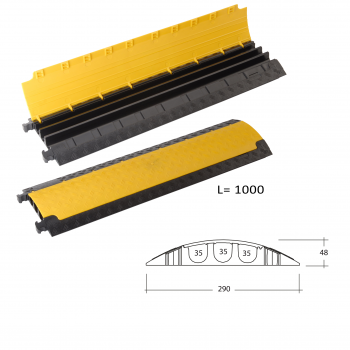

- 3 raceways: 1 raceway 35 x 35 mm, 2 raceways 35 x 30 mm
- Load capacity approx. 2 t / 20 x 20 cm
- Fire protection class B2 (DIN 4102), DEKRA certified (DIN 31000, EN 61537)
- Resistant to oil, acid, solvent and gasoline
- Size 100 x 29 x 4.8 cm, weight only 5 kg
- Reliable protection of people and cables for indoor and outdoor use
- Not suitable for road traffic
- Final ramps for safe insertion and removal of cables as an accessory
