Cable gland with 3 cable ducts
With a height of 73 mm, detachable dovetail junctions as well as 45 ° bends and final ramps as an accessory, the versatile Defender® III cable trays are ideal for laying cables and safely crossing vehicles and pedestrians . The Defender® III platforms feature 3 medium cable channels, integrated handles for optimal portability and a load capacity of 5 tons on a surface of 20 x 20 cm. In this way the 73 mm high cable routing platforms represent the perfect all-round solution for various uses, such as heavy traffic on wheels, construction sites, warehouses, shopping malls, fairs, exhibitions, carnivals and musical events.
Technical information
- Universal non-slip fairlead high-stress platforms in black recyclable polyurethane with integrated handles
- Cover in yellow polyethylene with high signaling effect and secure locking
- Hinge of the patented self-cleaning cover
- 3 raceways: 1 raceway 45 x 50 mm, 2 raceways 52 x 49 mm
- Load capacity approx. 5 t / 20 cm²
- Fire protection class B2 (DIN 4102), DEKRA certified (DIN 31000, EN 61537)
- Resistant to oil, acid, solvent and gasoline
- Dimensions 100 x 60 x 7.3 cm, weight 22 kg
- Reliable protection of people and cables for indoor and outdoor use

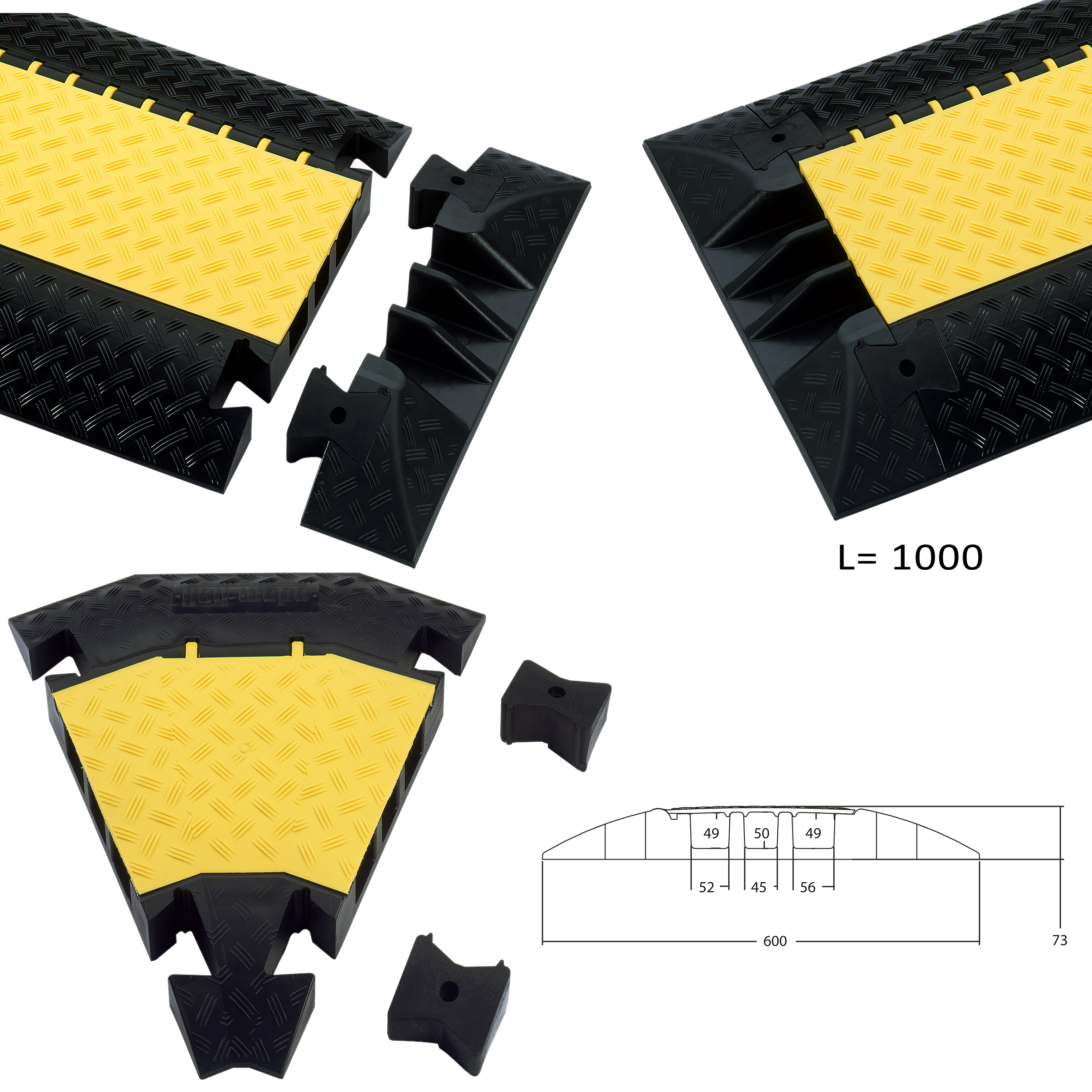

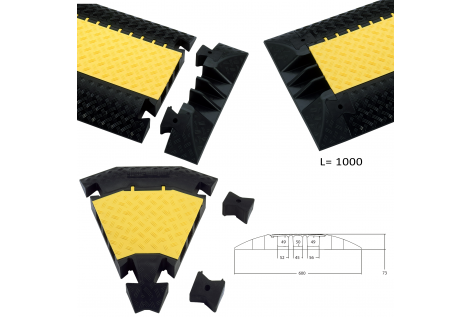

- Curves, connections and final ramps as accessories
