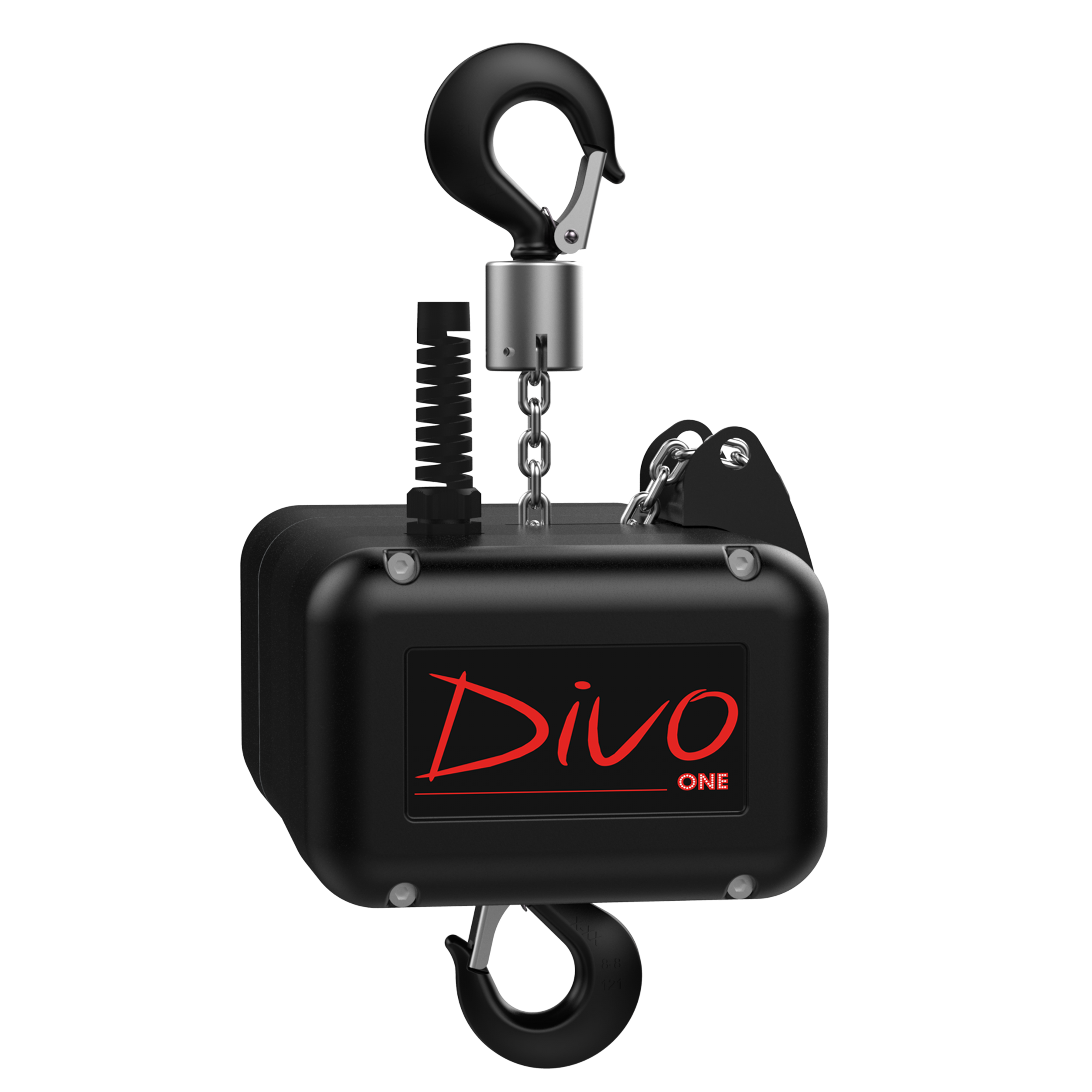

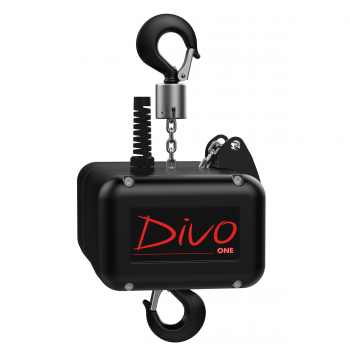

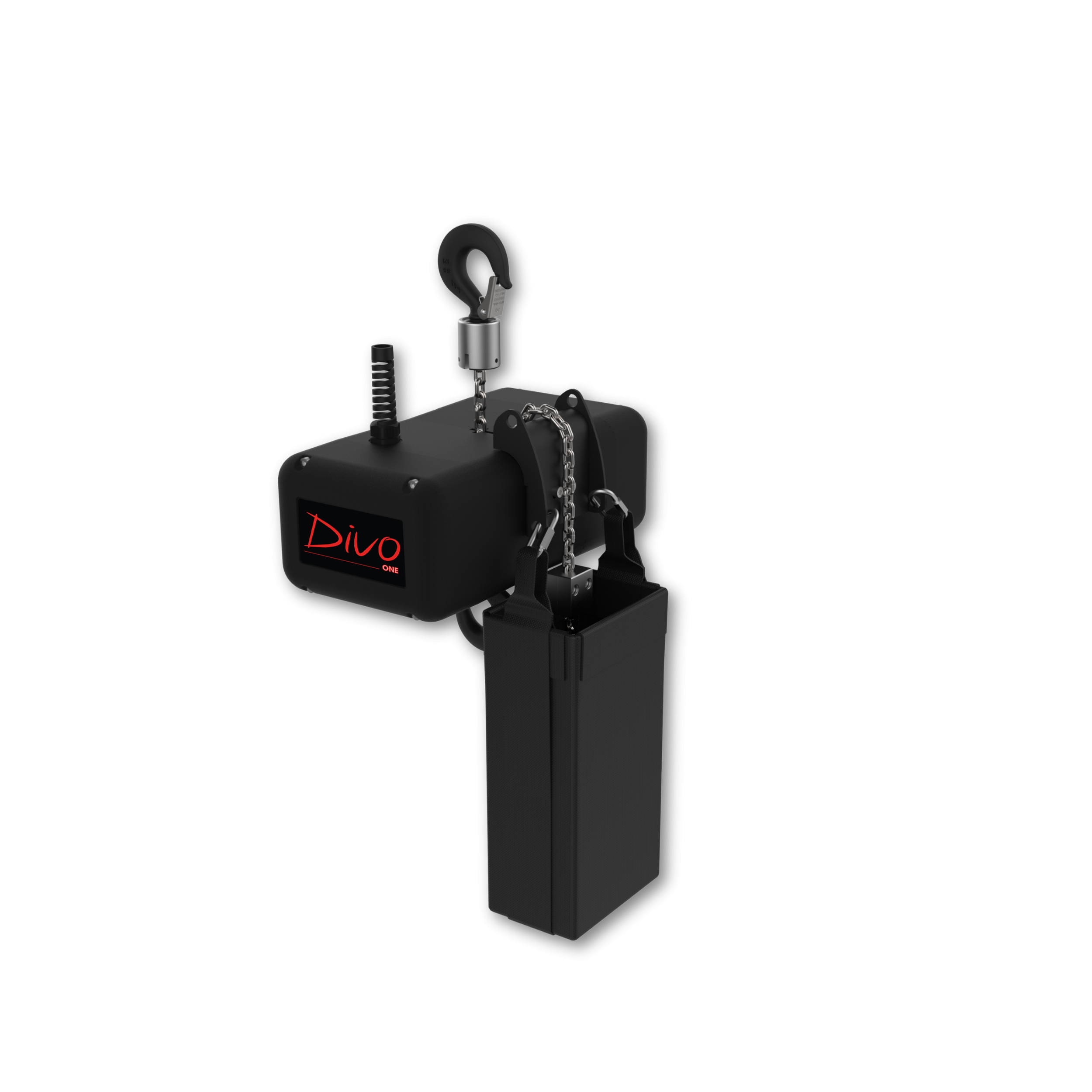

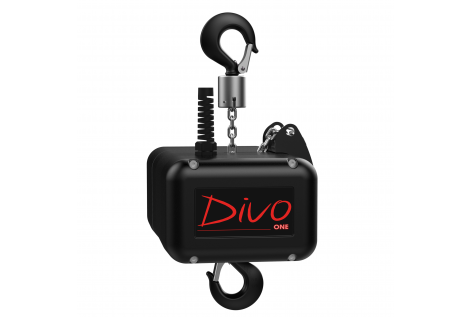

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the
IGVW SQP22 guideline
TECHNICAL SPECIFICATIONS
| Load capacity |
250 kg |
| Lifting speed at 50 Hz |
4m / min |
| Operating voltage |
400V 50 Hz |
| Protection Class |
IP 55 DIN 40050 |
| Motor power at 50 Hz |
0.18 kW |
| FEM Class |
2m |
| DC braking system |
2 brakes |
| Noise level |
<67.5 dB (full load) |
| Loading wheel |
5 pockets |
| RUD® Load Chain |
4x12 mm |
| Number of chains |
1 |
| Chain weight |
0.36 kg / m |
| Weight of the body |
12 kg |
| Type of control |
Direct Control |
| Type of connector | Red Plug |
400V EEC 16A - 3P + T |
| Climbing use |
permitted |
| Safety factor |
8: 1 |
| Handles |
optional |
| External Load Cell |
Optional |
