Touring PRO motor controllers
Technical information

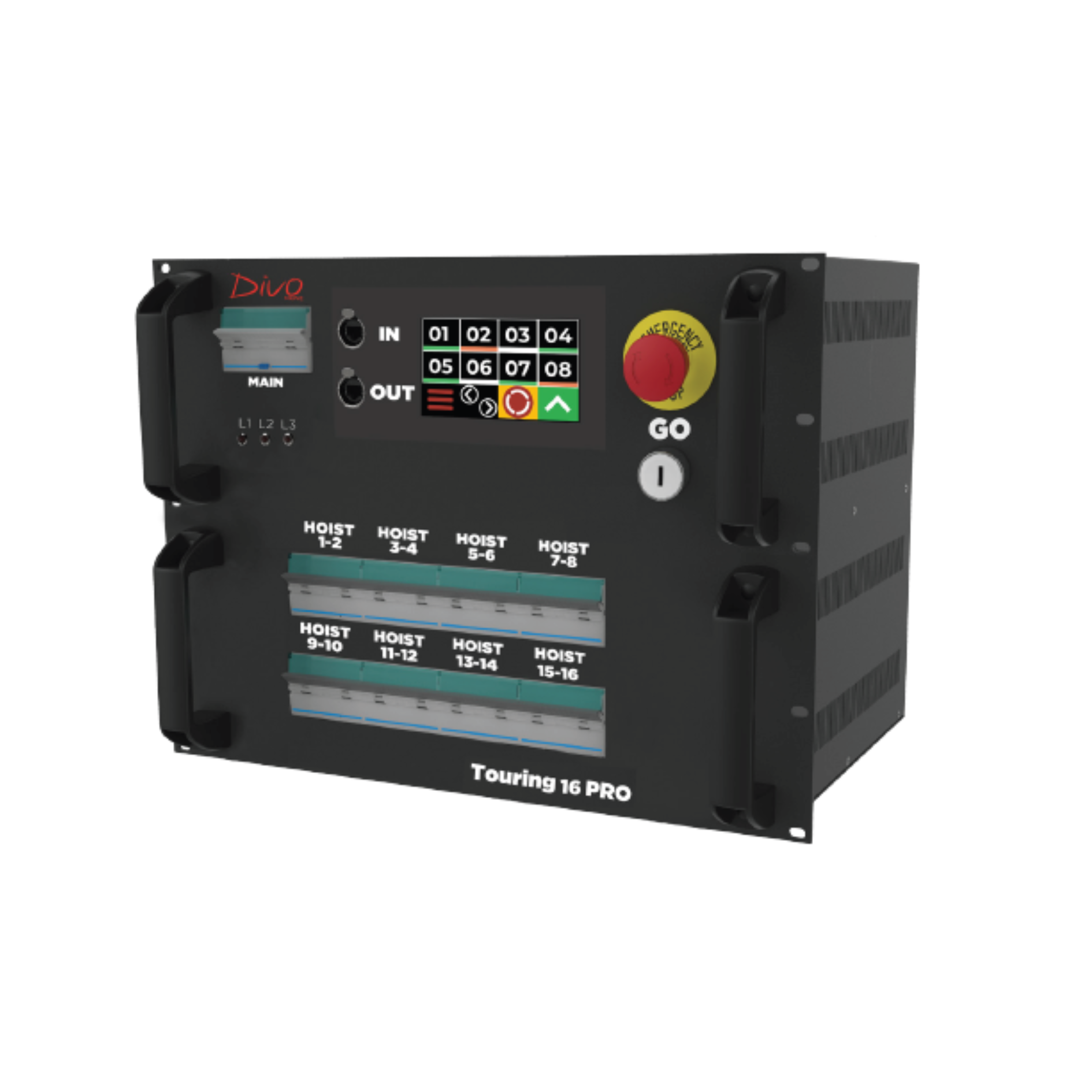

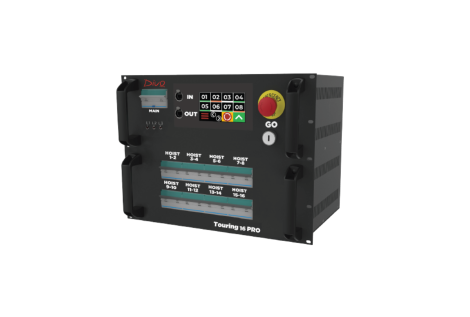

Motor Controller 4, 8 and 16 channels, in a linkable version.
TECHNICAL SPECIFICATIONS
| |
8 channels |
16 channels |
24 channels |
| Operating voltage |
400 V - 3P + E - 50/60 Hz |
400 V - 3P + E - 50/60 Hz |
230/400 V - 3P N+ E - 50/60 Hz |
| Protection class |
IP 55 DIN 40050 |
IP 55 DIN 40050 |
IP 55 DIN 40050 |
| Outputs |
400V CEE 46 A - 3P + E |
400V CEE 46 A - 3P + E |
400V CEE 16 A - 3P+E and LV |
| Multipole Connector |
Optional |
Optional |
Optional |
| Weight |
14 kg |
23 kg |
32 kg |
| dimensions |
4U rack 420mm |
8U rack 420mm |
12U rack 420 mm depth |
| Touch Screen |
5 inches |
5 inches |
7 inches |
| Remote Command |
Optional |
Optional |
Optional |
| E-Stop |
Included |
Included |
Included |
| Memory groups |
Through included software |
Through included software |
Through included software |
| Wired Load cells monitoring |
Through optional external box |
Through optional external box |
Through optional external box |

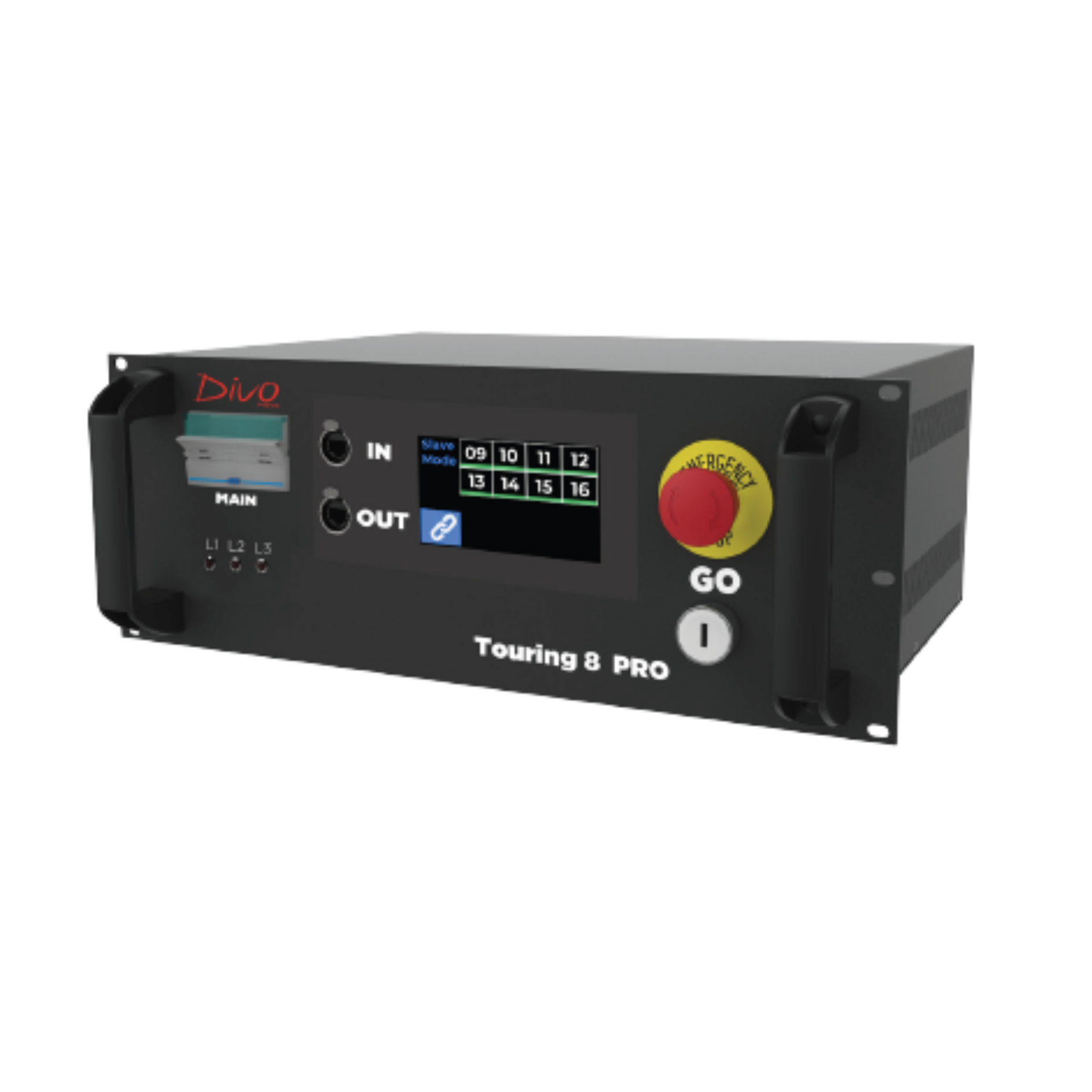

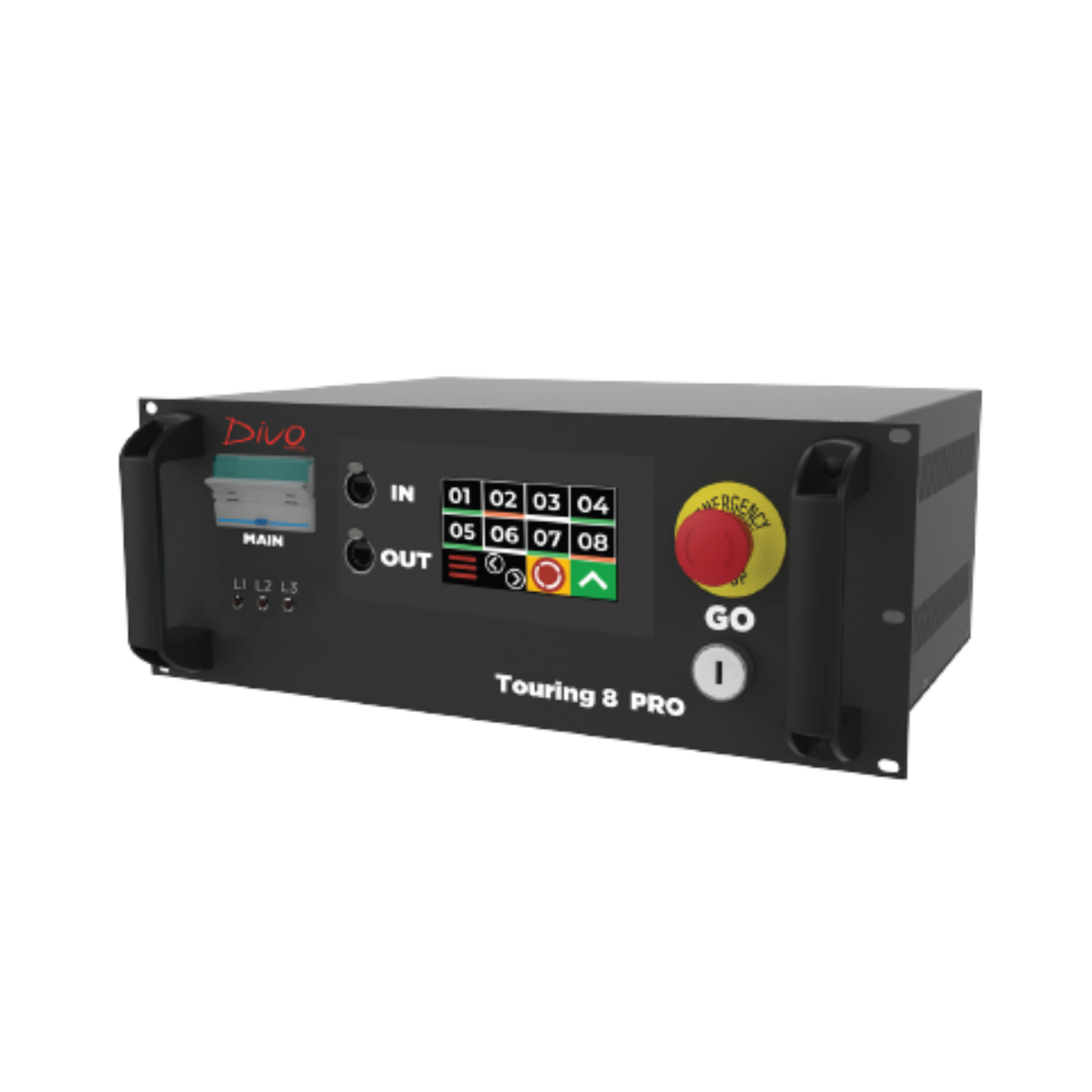

Linkable Motor Controller with touch screen, 3.2 e 5 inches.
Each model can be master or slave.
Remote touchscreen pushbutton.
Pre-installed the basic version of the Divo Os:
- UP / DOWN control
- multiple selection
- multifunction menu
- creation and handling of hoists group
- digital phase inversion
- load cell monitoring through optional external box
