Touring LINK Motor Controller

Category : Motor Controllers and Push Button

Technical information

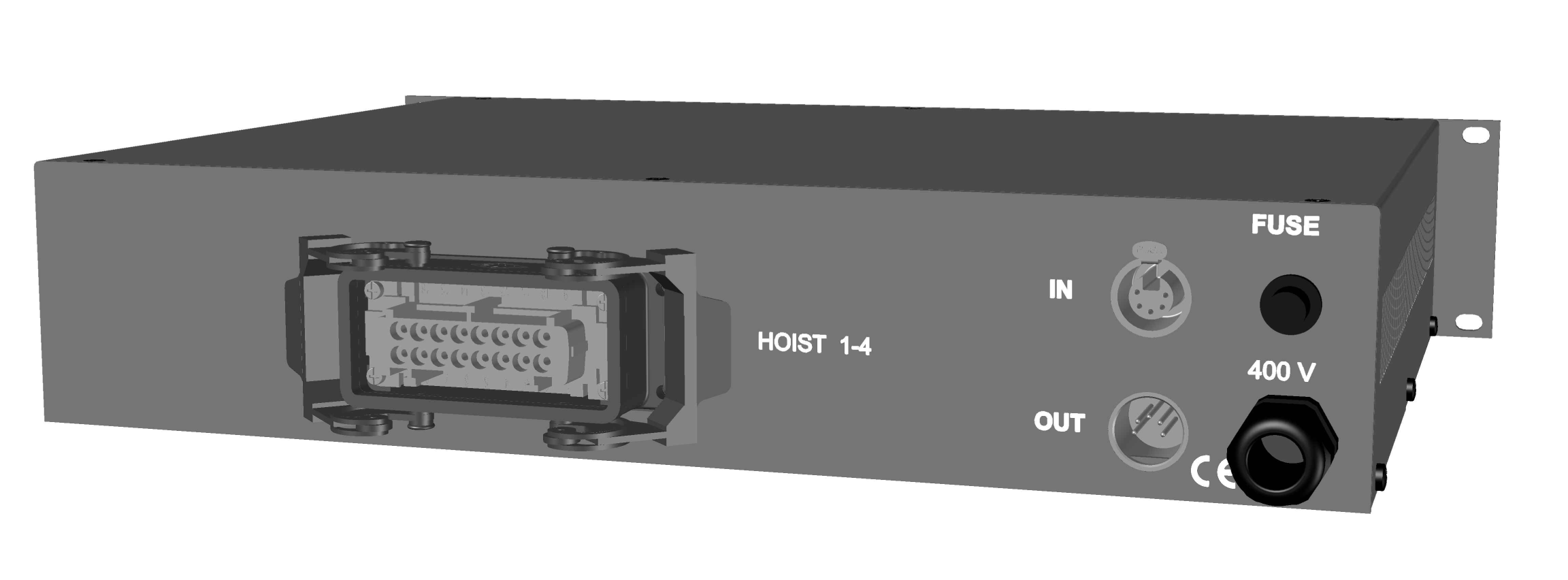

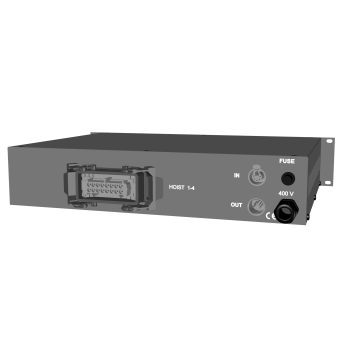

Motor Controller 4, 8, 16 or 24 channels, in a linkable version. Each model can be master or slave.

TECHNICAL SPECIFICATIONS

	4 canali	8 canali	16 canali	24 canali
Operating Voltage	230/400V - 3P+ N+T - 50/60 Hz	230/400V - 3P+ N+T - 50/60 Hz	230/400V - 3P+ N+T - 50/60 Hz	230/400V - 3P+ N+T - 50/60 Hz
Protection class	IP 20 DIN 40050	IP 20 DIN 40050	IP 20 DIN 40050	IP 20 DIN 40050

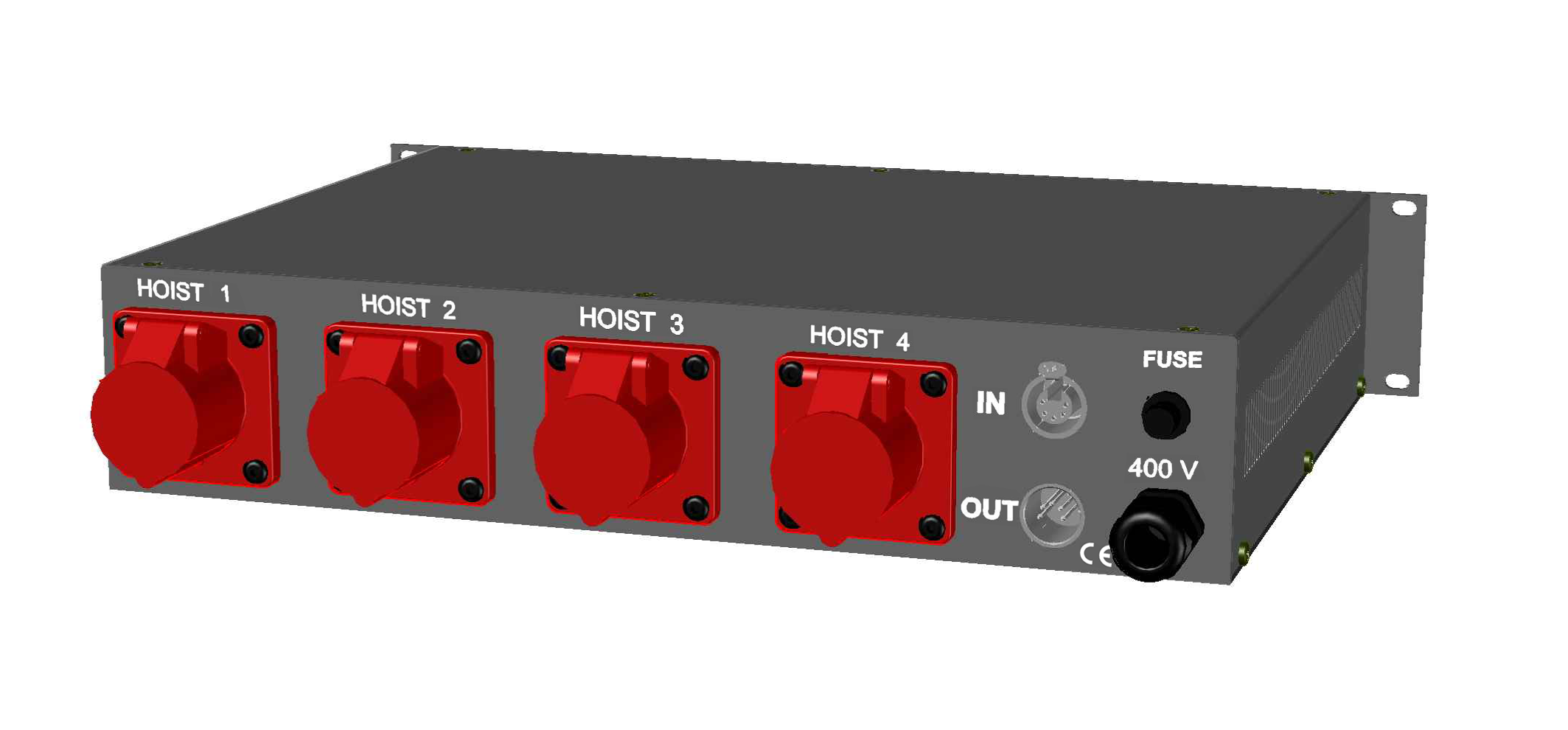

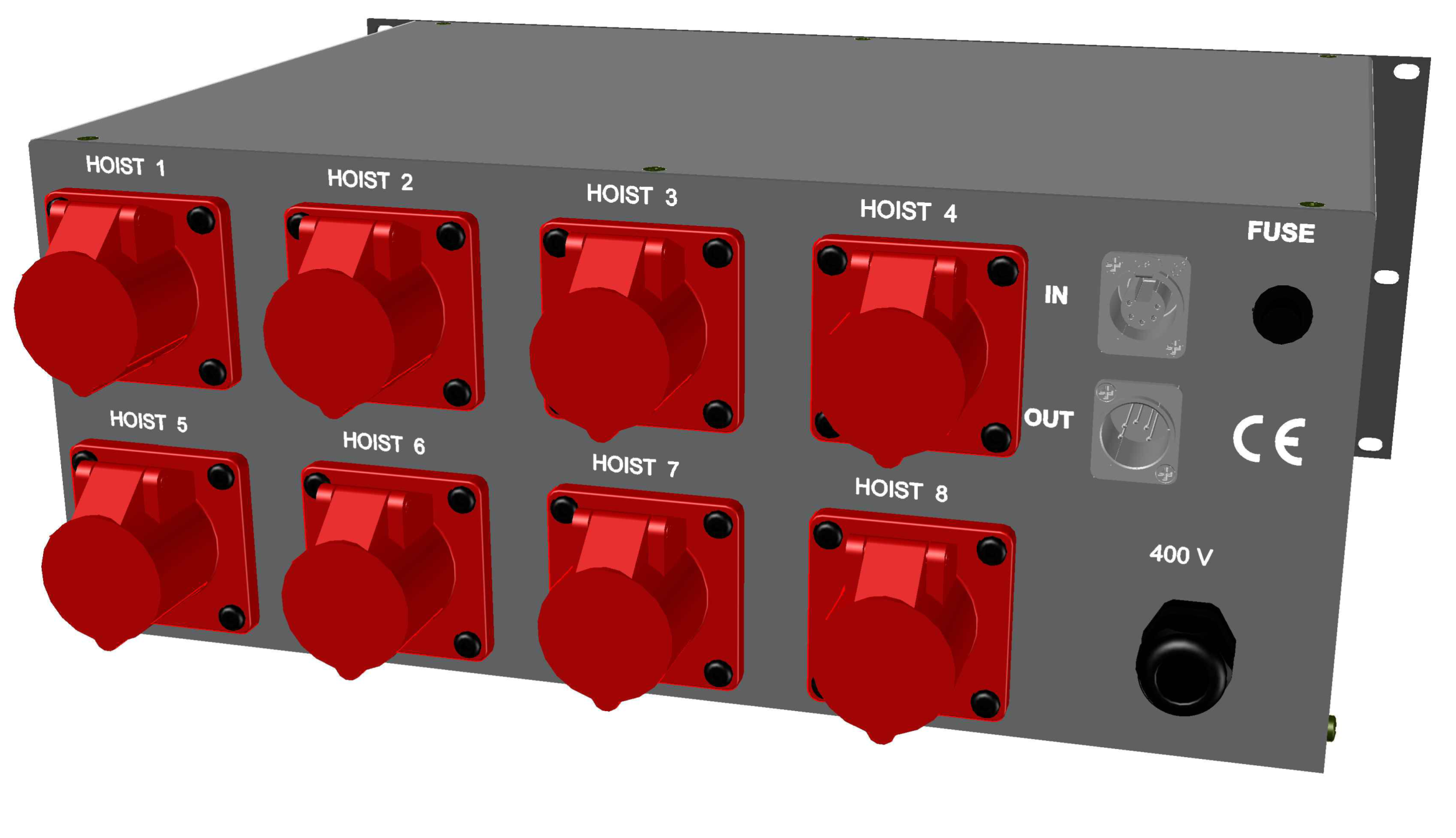

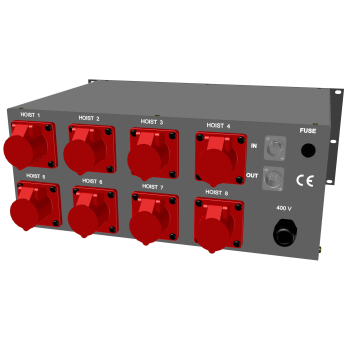

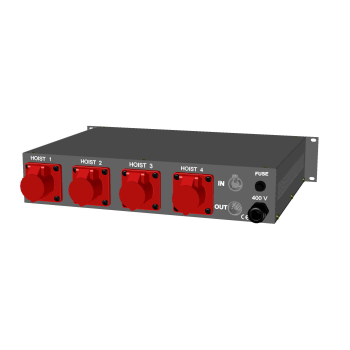

Outputs	400V CEE 16 A - 3P+E	400V CEE 16 A - 3P+E	400V CEE 16 A - 3P+E	400V CEE 16 A - 3P+E
Weight	8,5 kg	11,5 kg	21,2 kg	29,5 kg
Dimensions	2U rack 420mm	4U rack 420mm	8U rack, 420 mm depth	12U rack, 420 mm depth
E-Stop	Incluso	Incluso	Incluso	Incluso

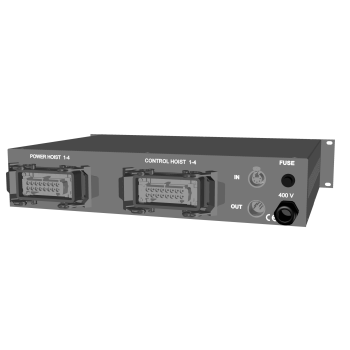

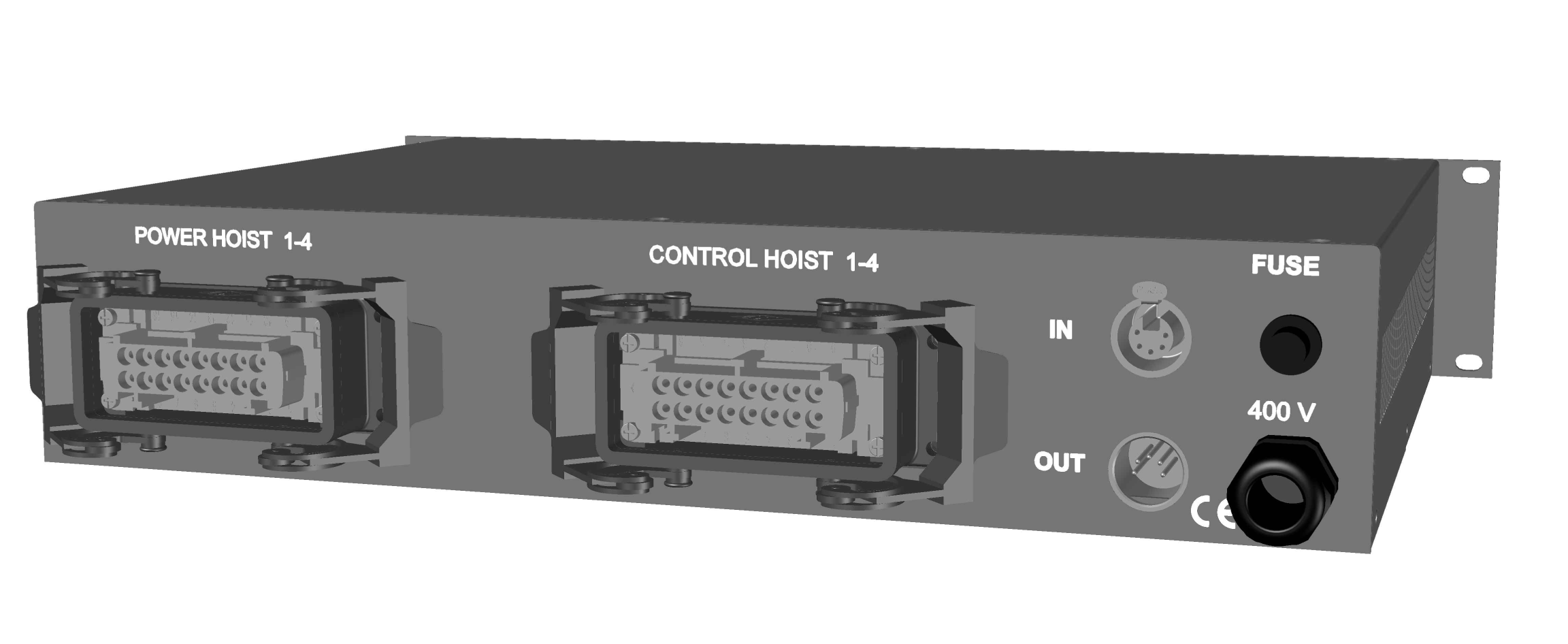

Low Voltage 24V	Disponibile	Disponibile	Disponibile	Disponibile
Power supply	400V - 3P+ N+T 16A	400V - 3P+ N+T 32A	400V - 3P+ N+T 63A	400V - 3P+ N+T 63A

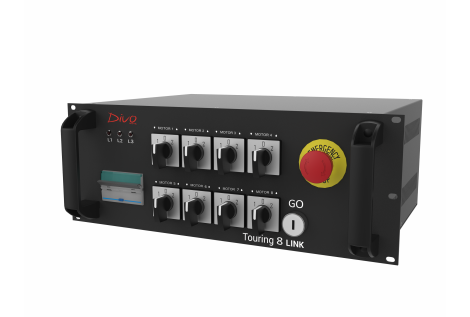

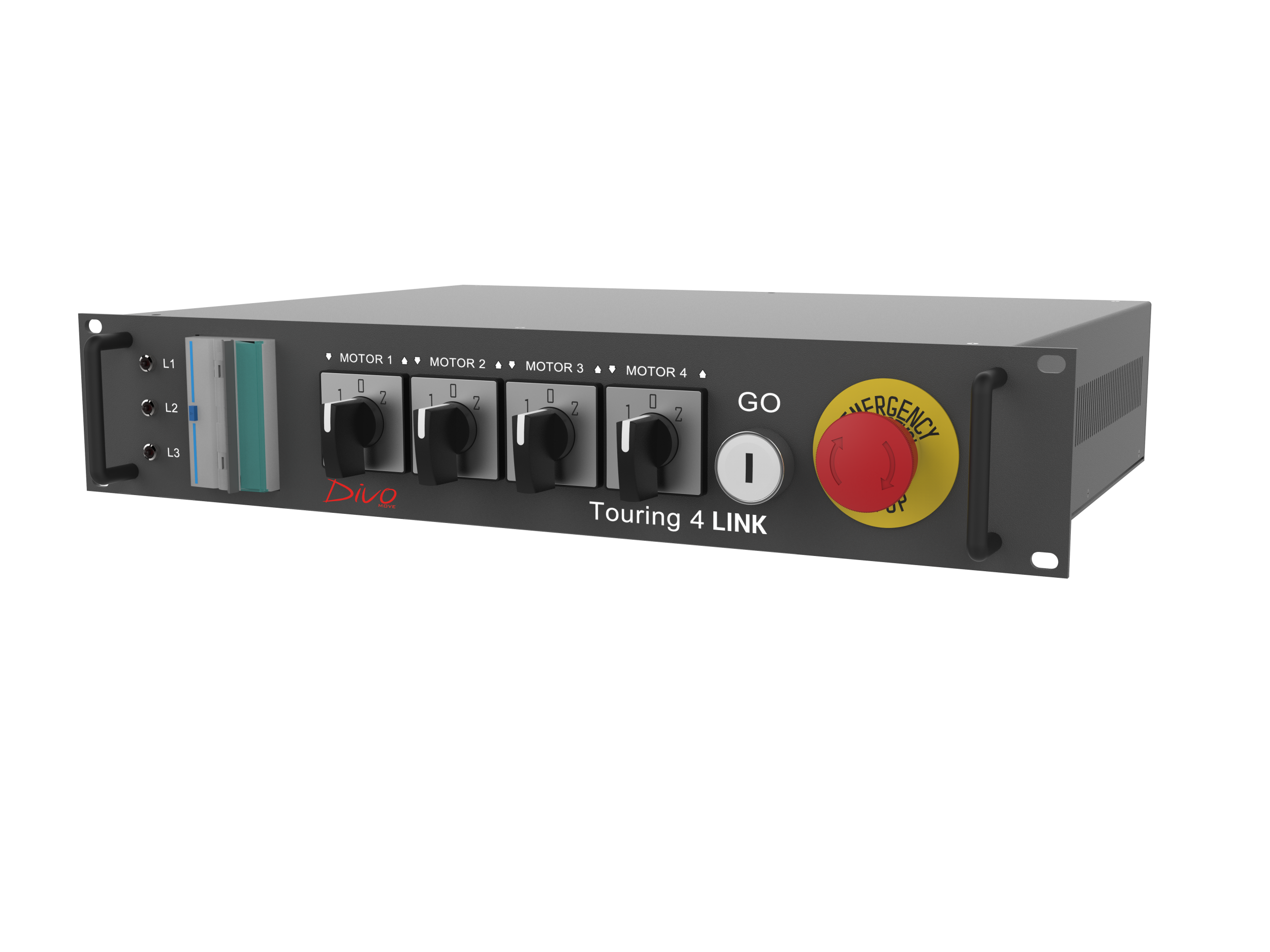

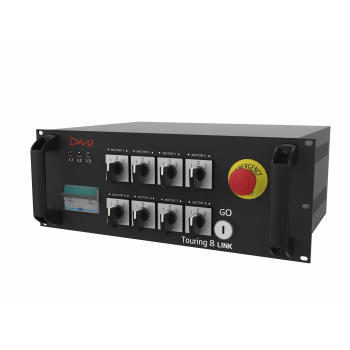

Select the desired hoists by turning the respective switches to the UP or DOWN position: through the GO button you can move them simultaneously.

Remote Push button: RPB01
