Code: DLA1000

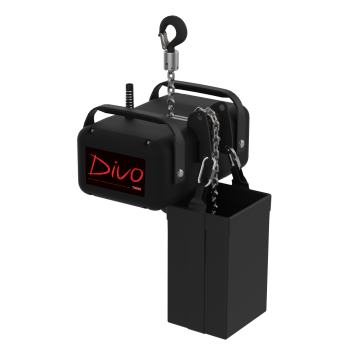

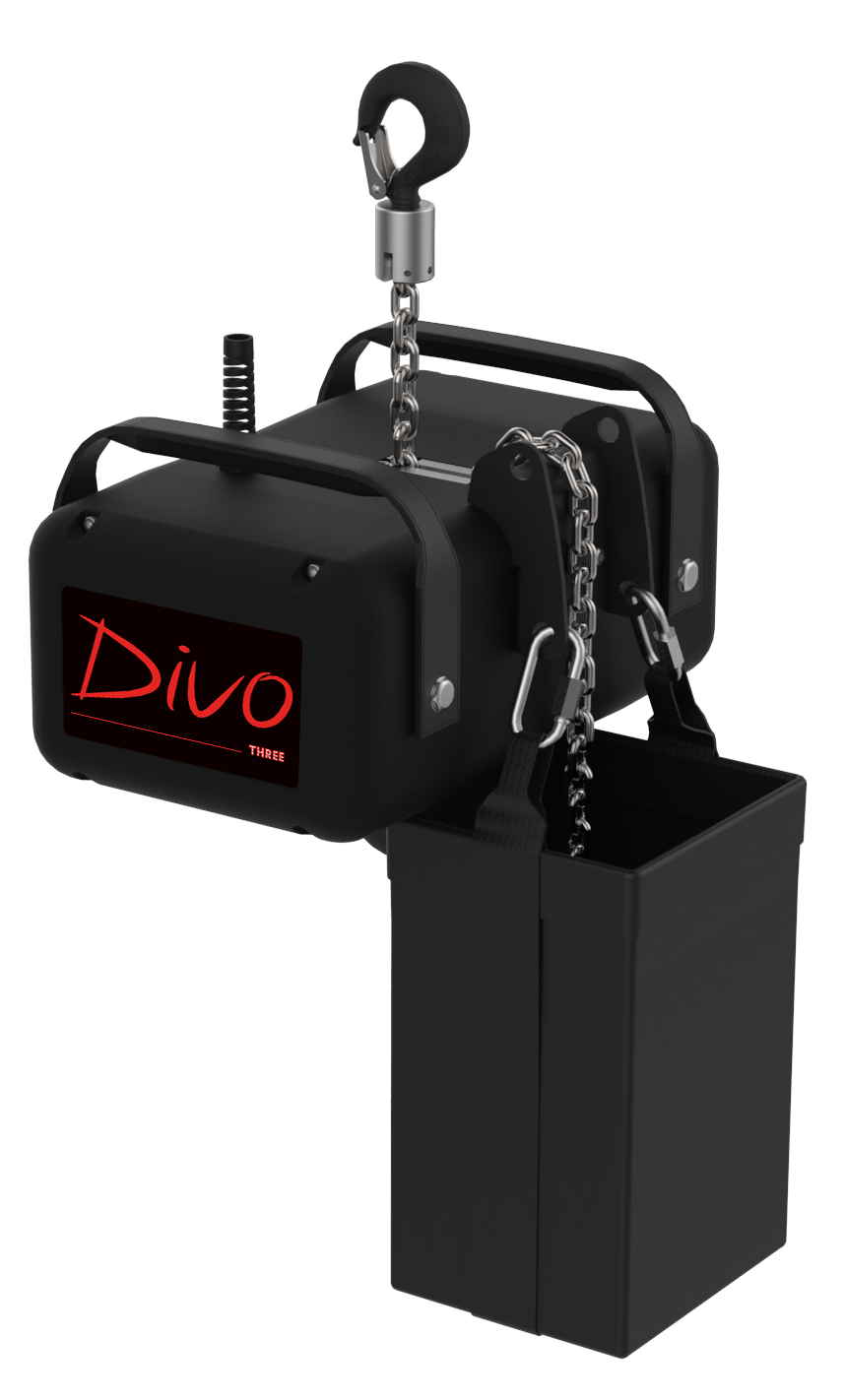

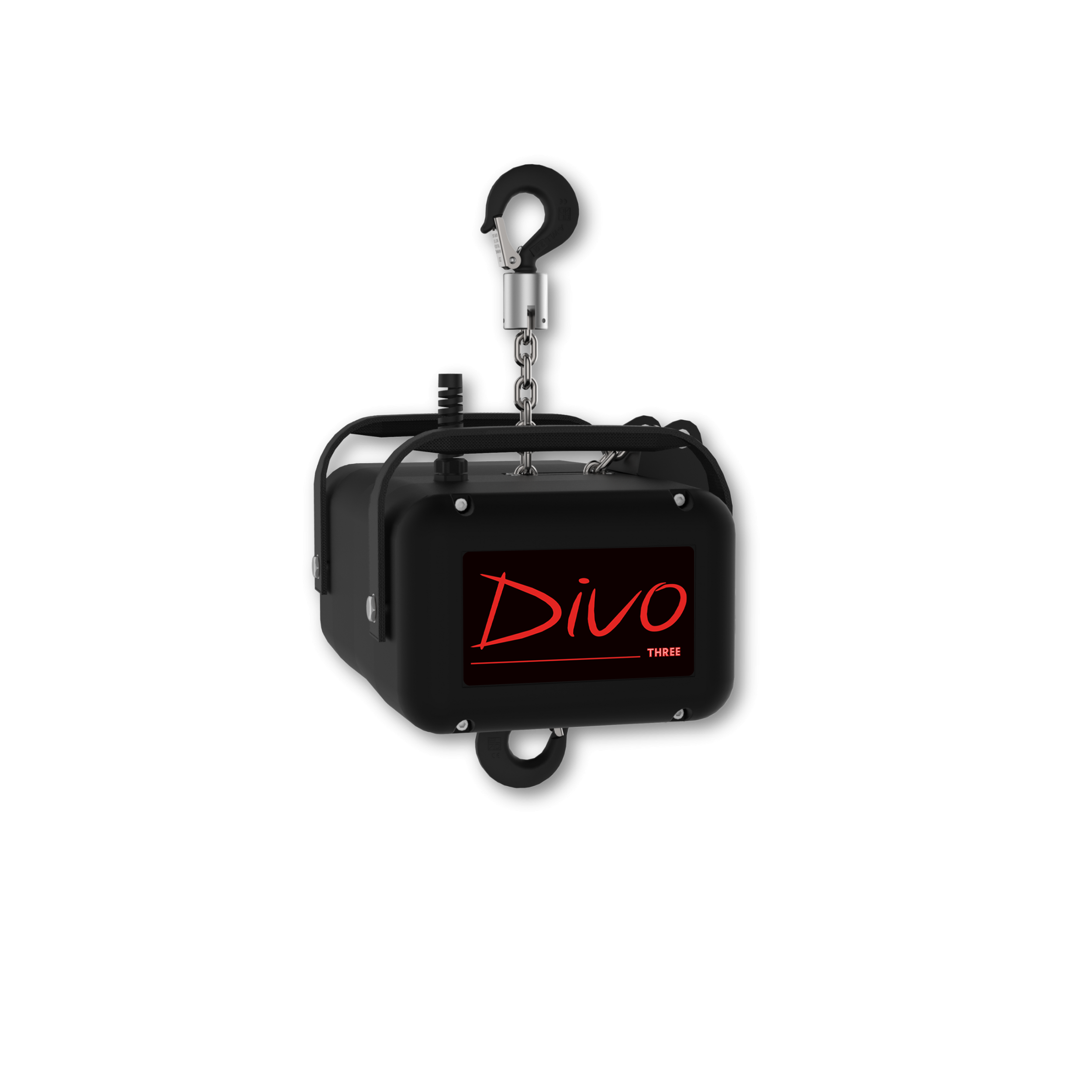

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the
IGVW SQP2 guideline
TECHNICAL SPECIFICATIONS
Load capacity |
1000 kg |
Lifting speed at 50 Hz |
4m / min |
Operating voltage |
400V 50 Hz |
Protection Class |
IP 55 DIN 40050 |
Motor power at 50 Hz |
0.72 kW |
FEM Class |
1Bm |
DC braking system |
1 brake |
Noise level |
<67.5 dB (full load) |
Loading wheel |
5 pockets |
RUD® Load chain |
6,3x19 mm |
Number of chains |
1 |
Chain weight |
0.86 kg / m |
Weight of the body |
- |
Type of control |
Direct Control |
Type of connector | Red Plug |
400V EEC 16 A - 3P + T |
Climbing use |
permitted |
Safety factor |
5: 1 |
End Stroom Stromag® with 4 switches |
Optional |
