Technical information
Motor Controller 4 and 8 channels, in standard version.
TECHNICAL SPECIFICATIONS
| |
4 channels |
8 channels |
| Operating voltage |
220/400 V - 3P + E - 50/60 Hz |
220/400 V - 3P + E - 50/60 Hz |
| Protection class |
IP 55 DIN 40050 |
IP 55 DIN 40050 |
| Outputs |
400V CEE 46 A - 3P + E |
400V CEE 46 A - 3P + E |
| Weight |
8 kg |
11 kg |
| dimensions |
2U rack 420mm |
4U rack 420mm |
| E-Stop |
Included |
Included |
| Low Voltage control 24V |
Available |
Available |

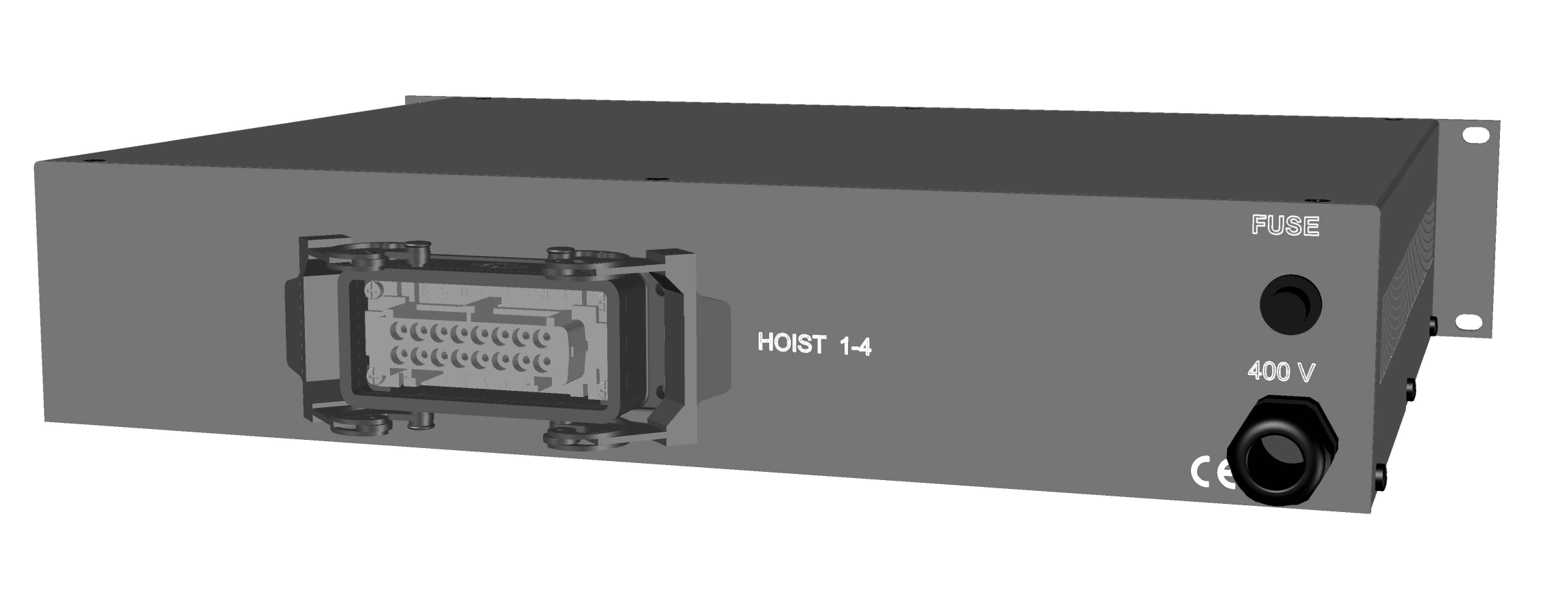

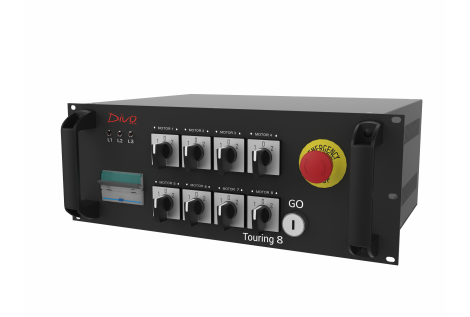

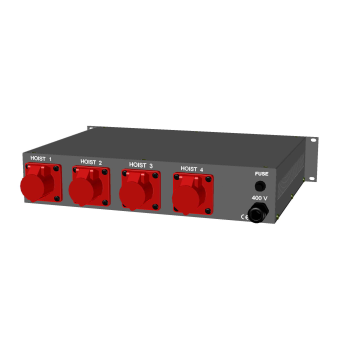

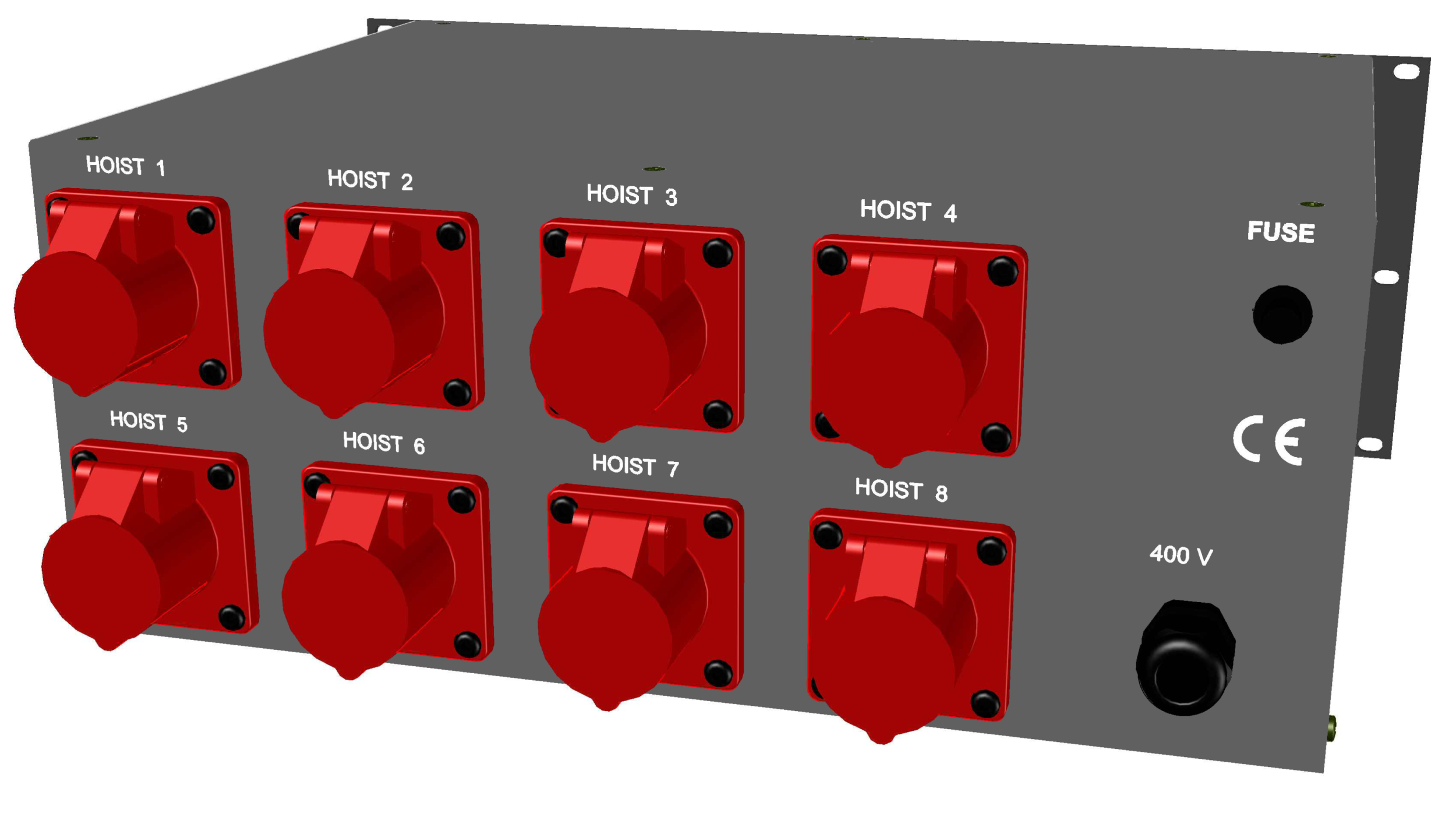

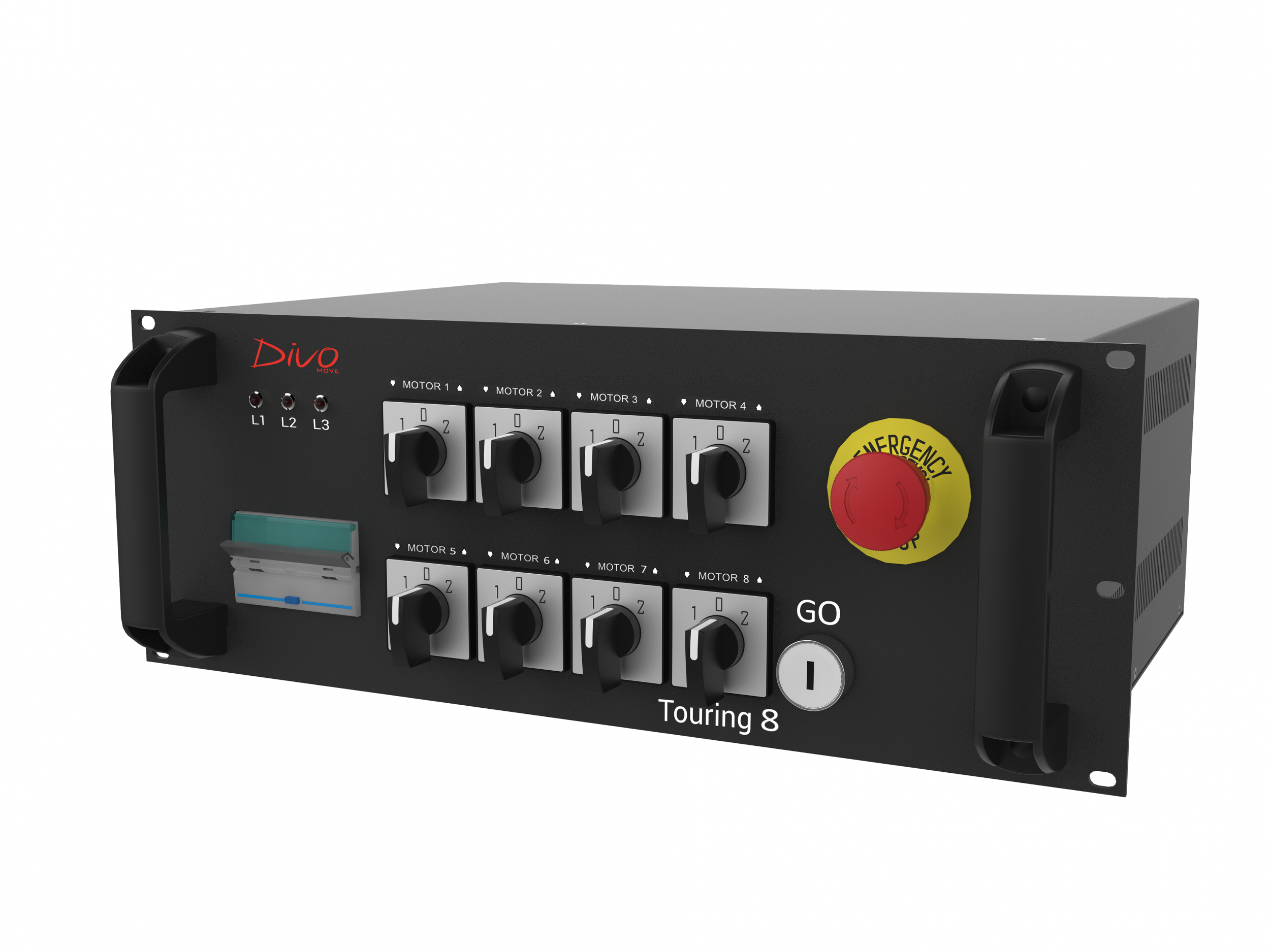

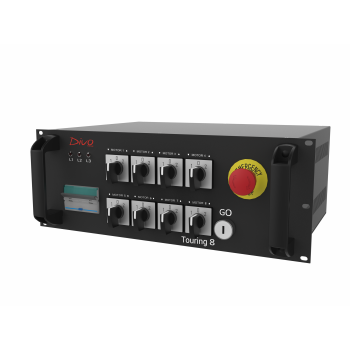

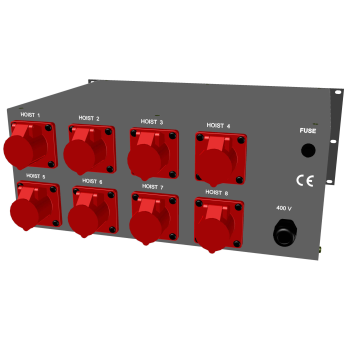

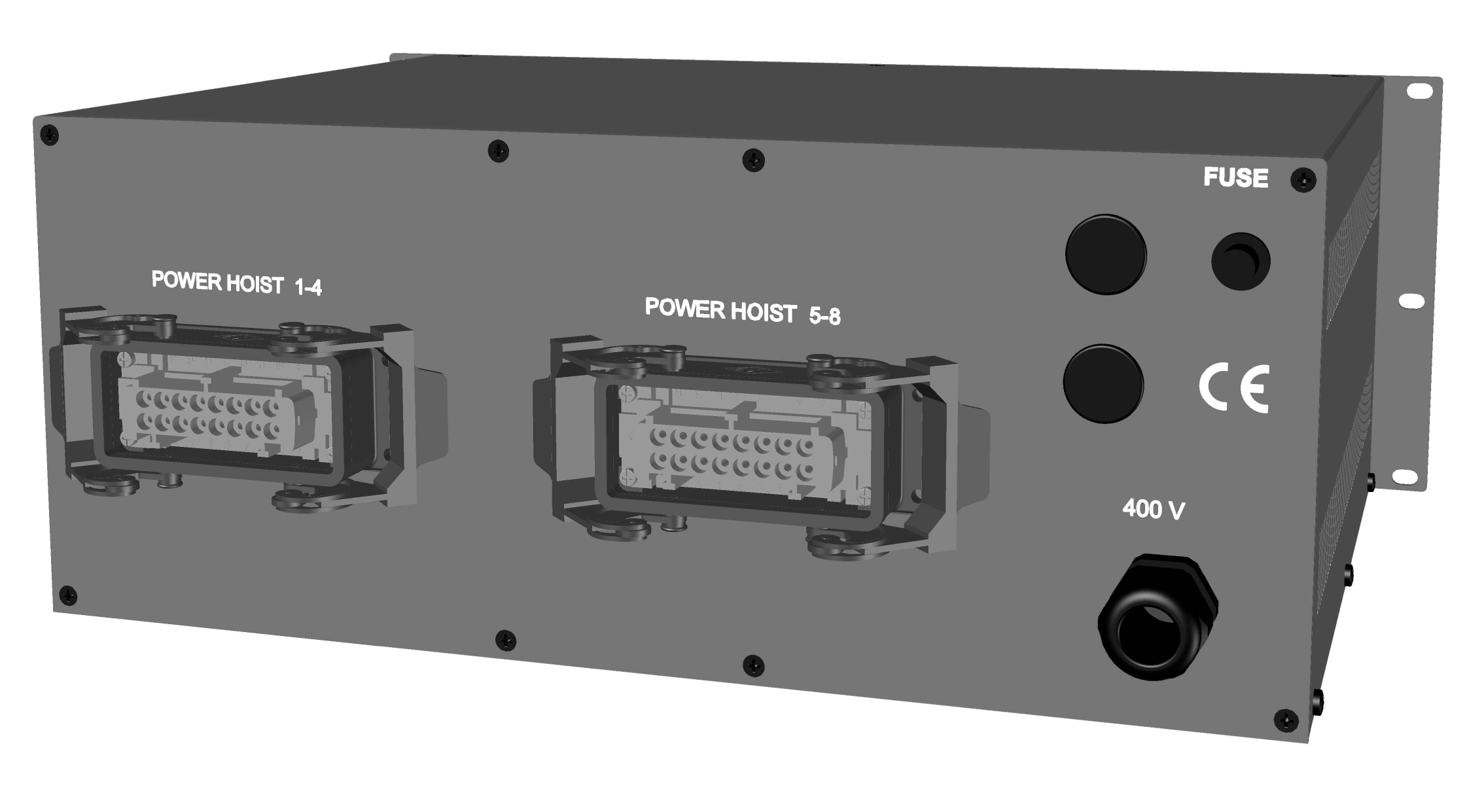

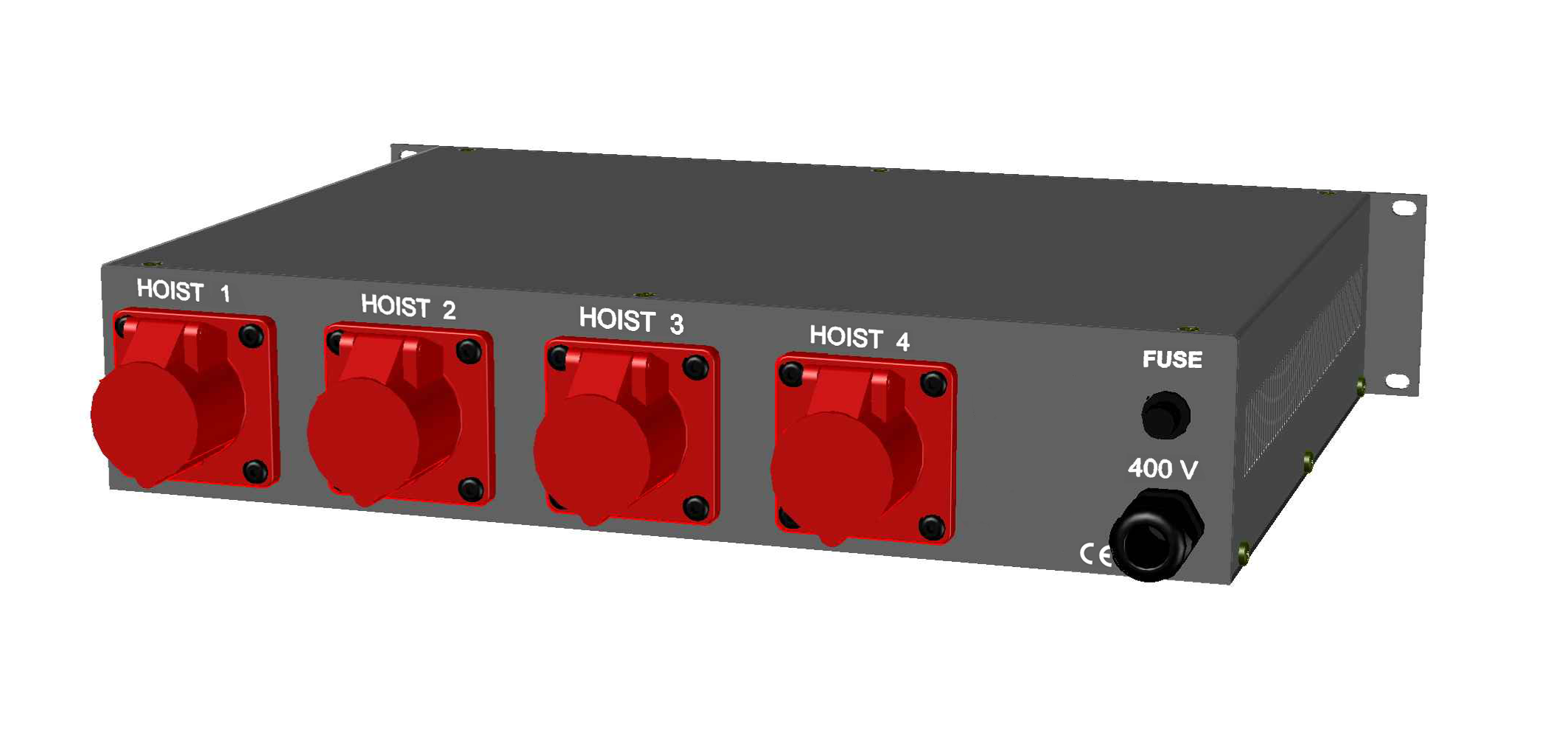

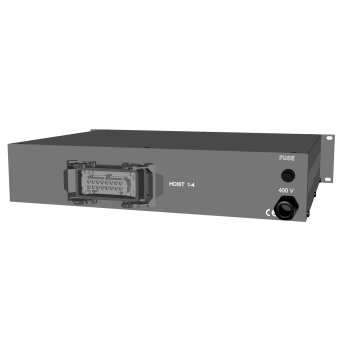

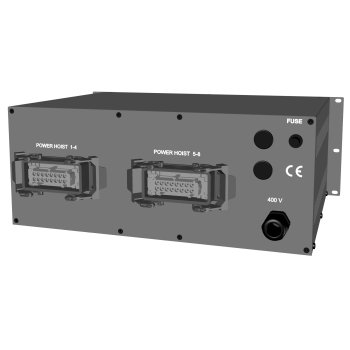

Standard Motor Controller, 4 and 8 channels

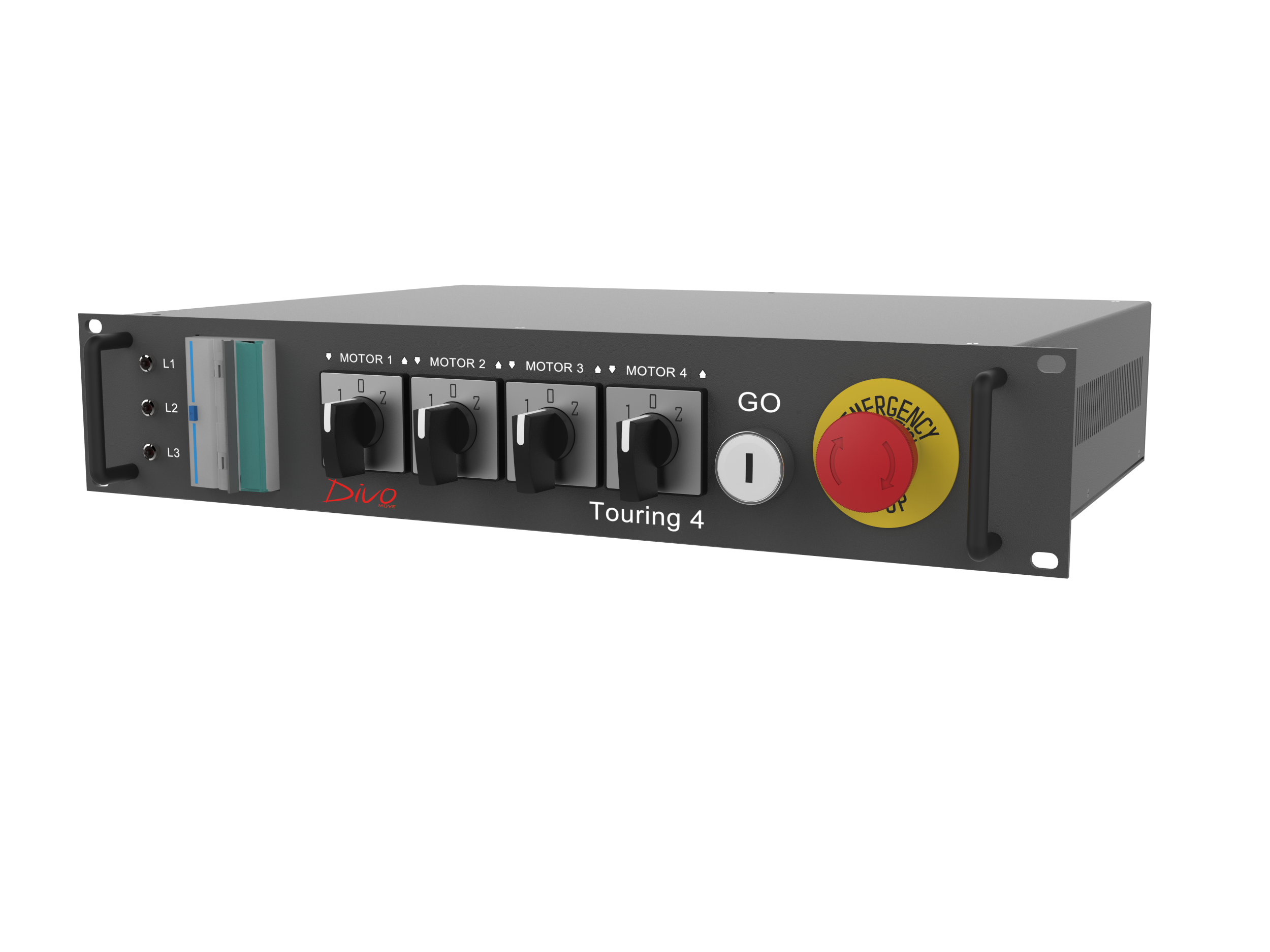

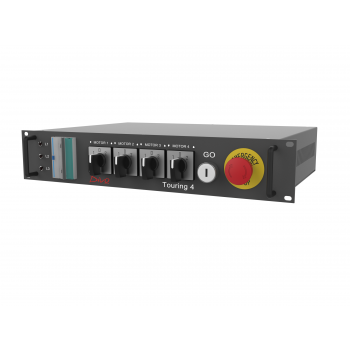

Select the desired hoists by turning the respective switches to the UP or DOWN position: through the GO button you can move them simultaneously
