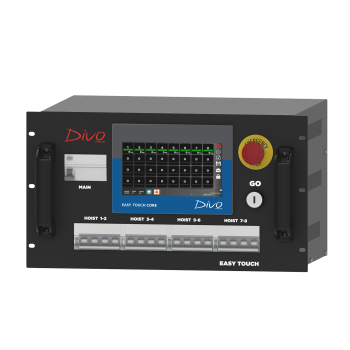

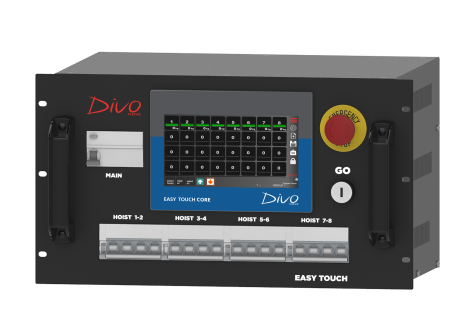

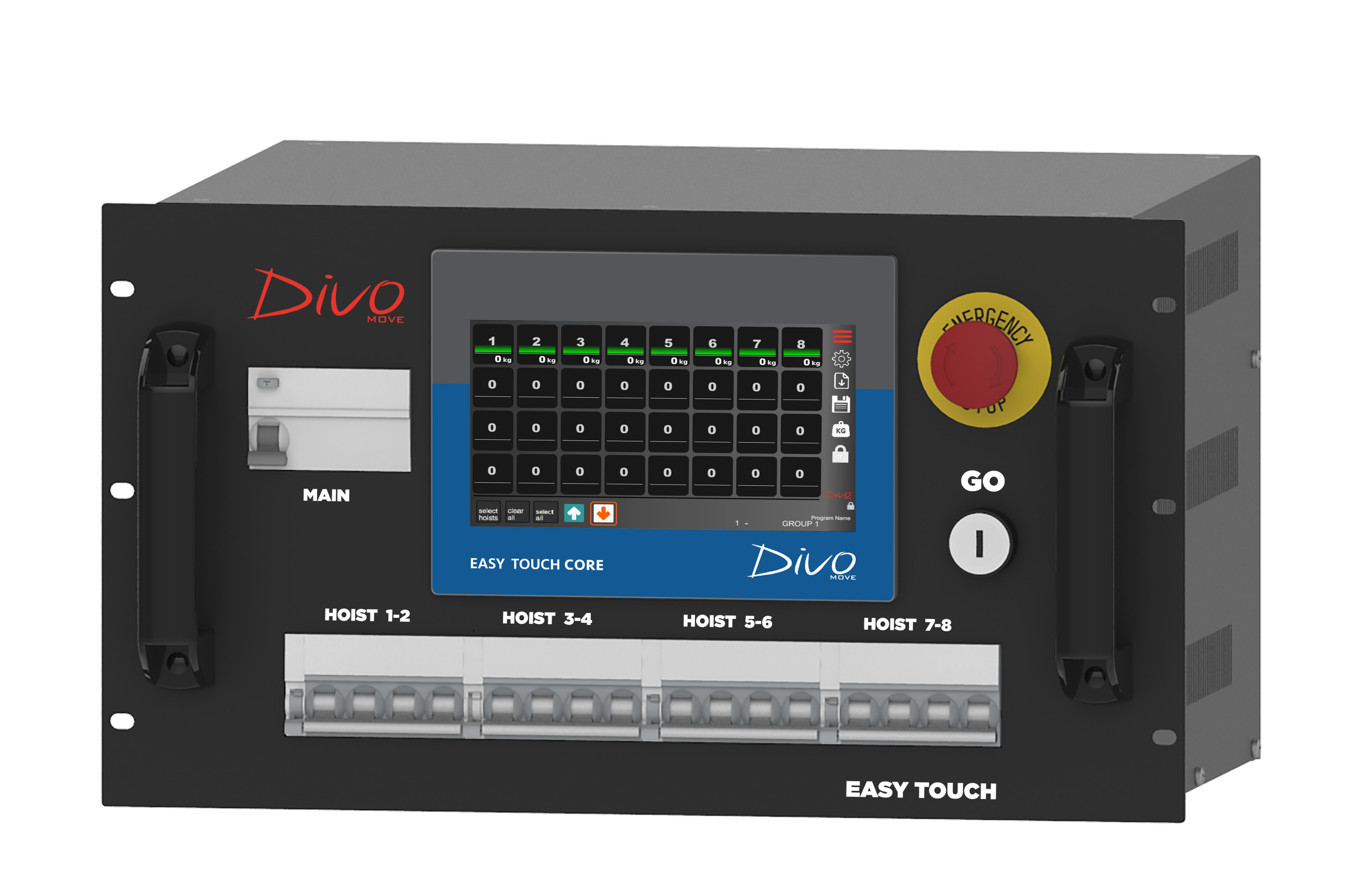

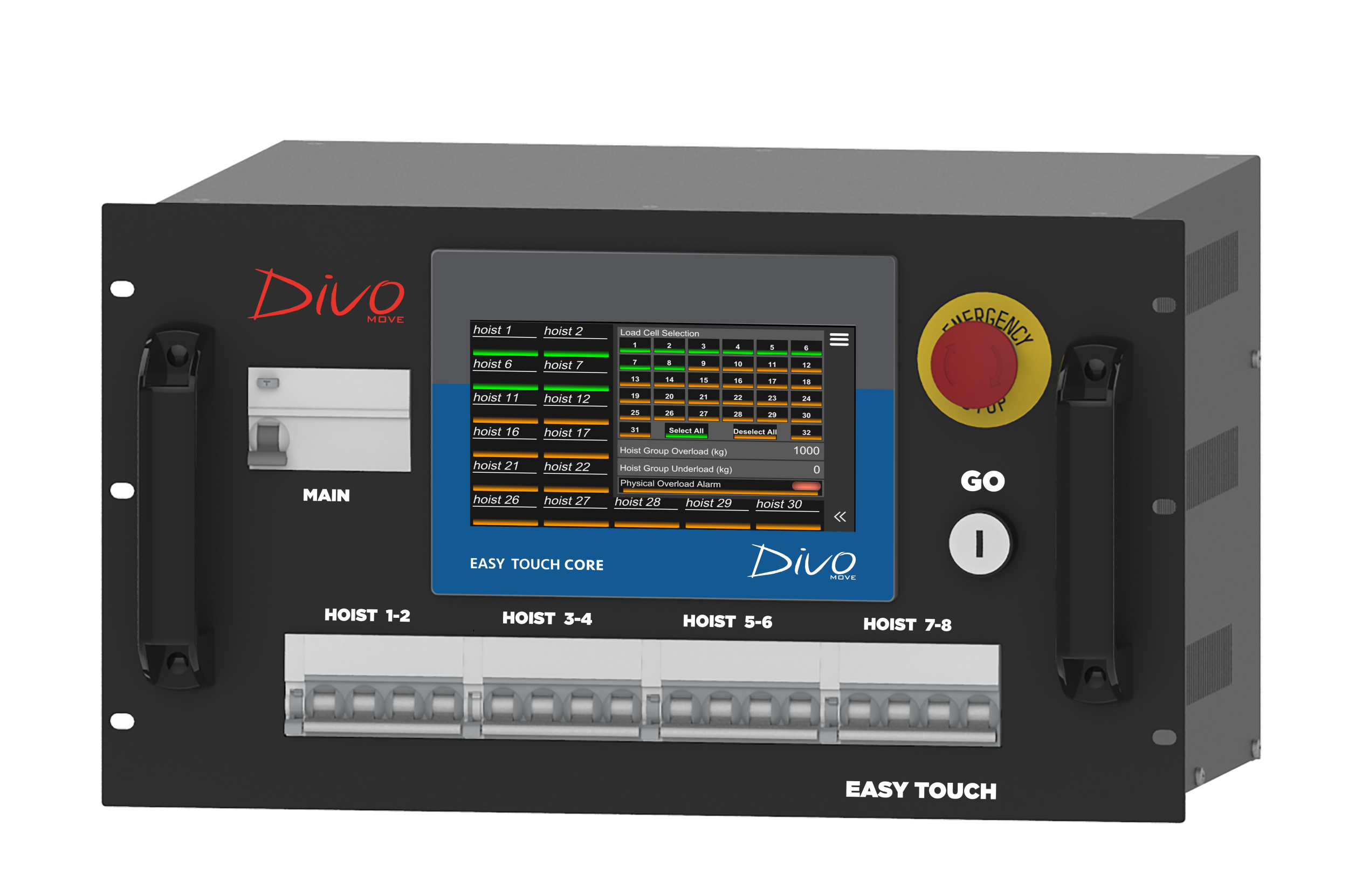

The motor controller designed for the professional management of fixed-speed hoists, ideal for applications in the entertainment and live events industry. Equipped with a 7" or 10" touchscreen panel (for the multi-channel version), it offers an intuitive interface to monitor and control up to 8 or more channels simultaneously, with the safety of a wired load cell integrated on every hoist.

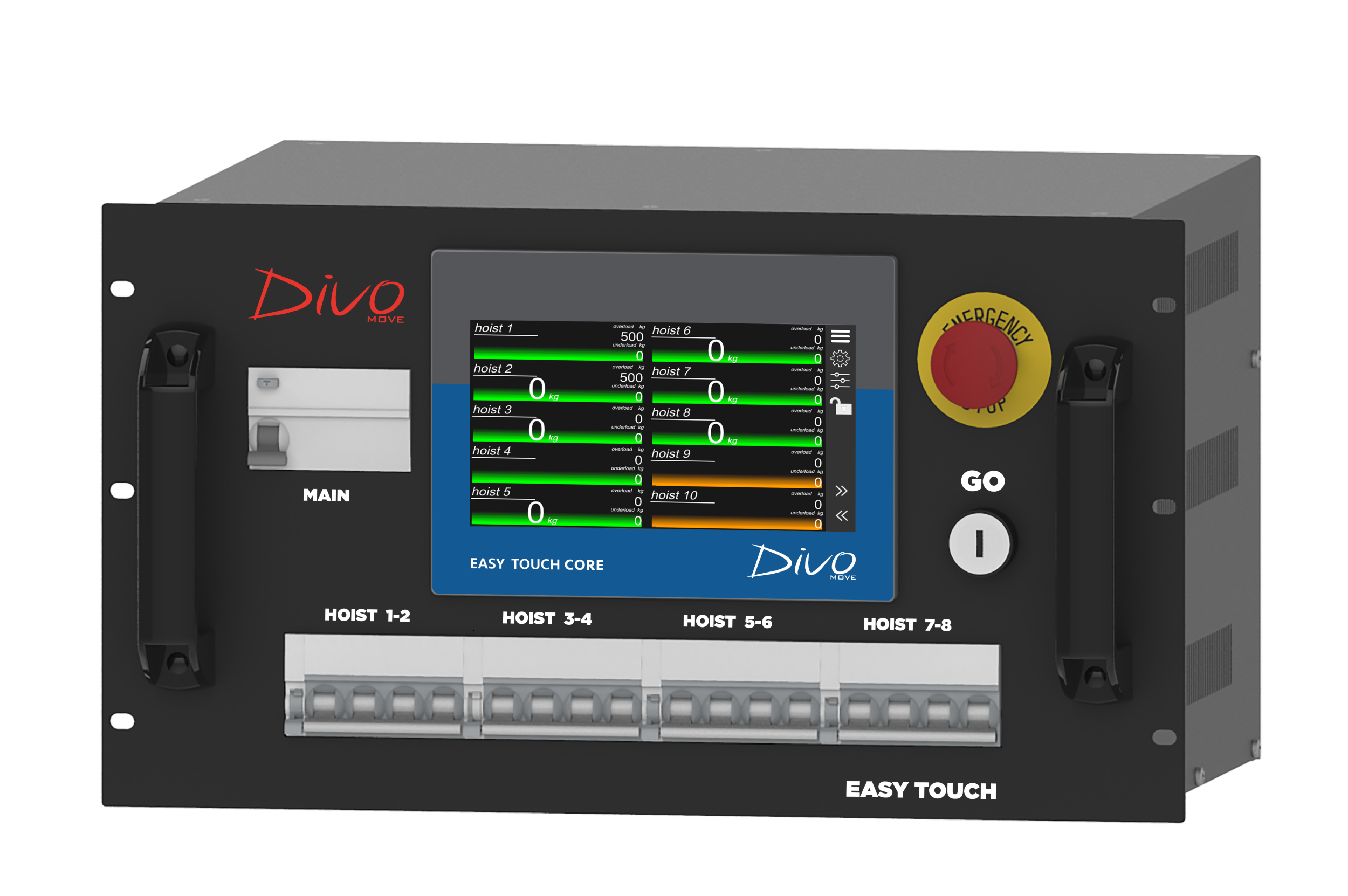

The onboard software enables advanced group management and real-time load reading, simplifying the operator's work even in the most complex configurations.
Technical Information
| Operating voltage | 400 V - 3P + N +T - 50/60 Hz |
| Protection class | IP 20 DIN 40050 |
| Outputs power Hoists | Harting, Socapex or CEE |
| Load cell management | 1 single EtherCON (RJ45) connector for all hoists |
| Weight | 15 kg |
| Channel selection | 7-10" Touch Screen |
| Dimensions | 6U Rack, 420mm depth (8-channel version) |
| Handheld wired remote control | Optional |
| E-Stop | Included |
Comes preinstalled with the full version of Divo Os:
