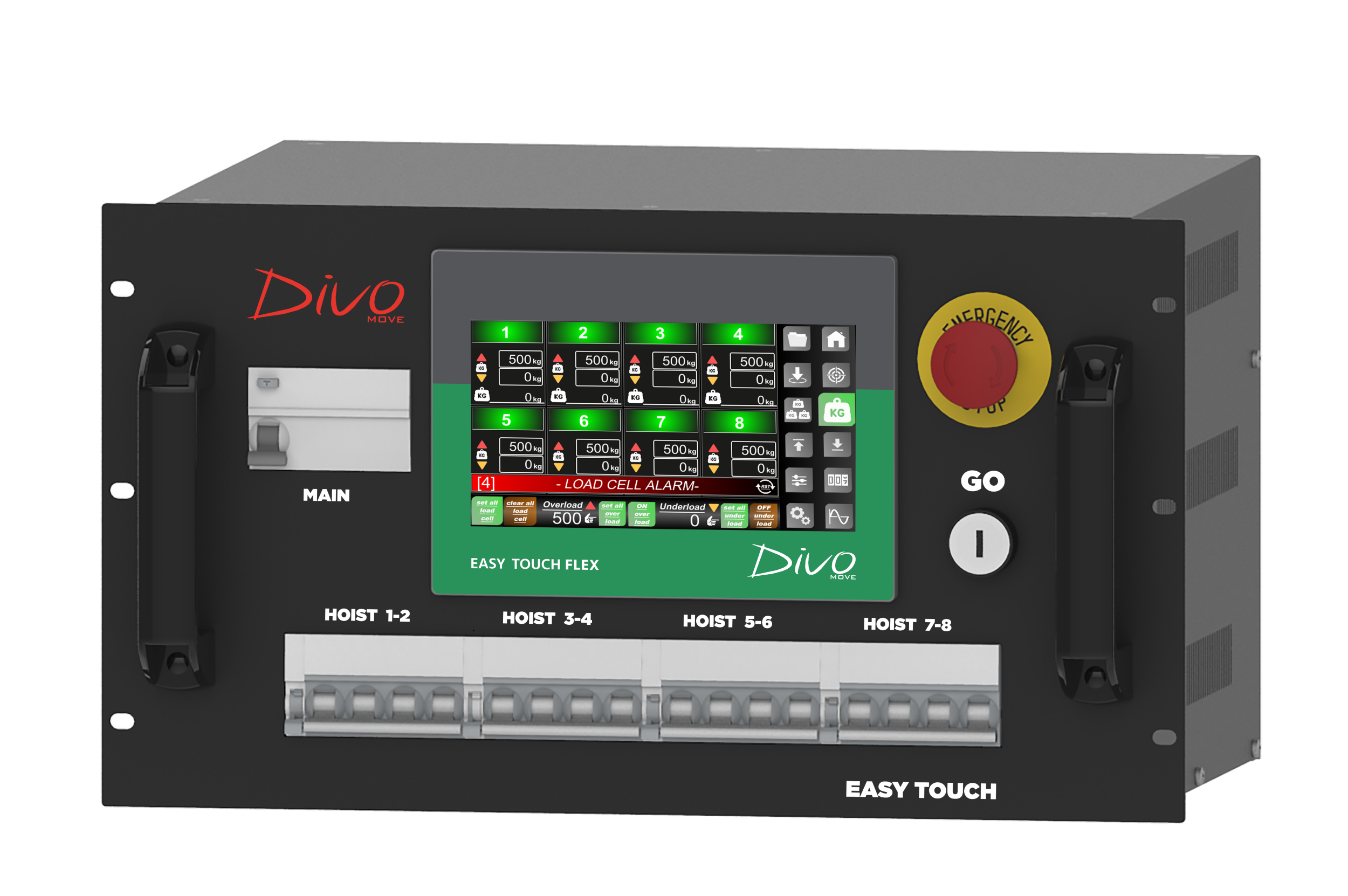

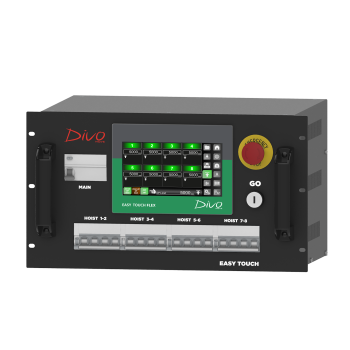

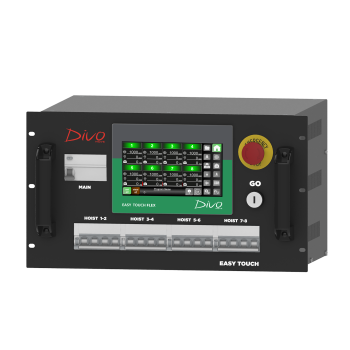

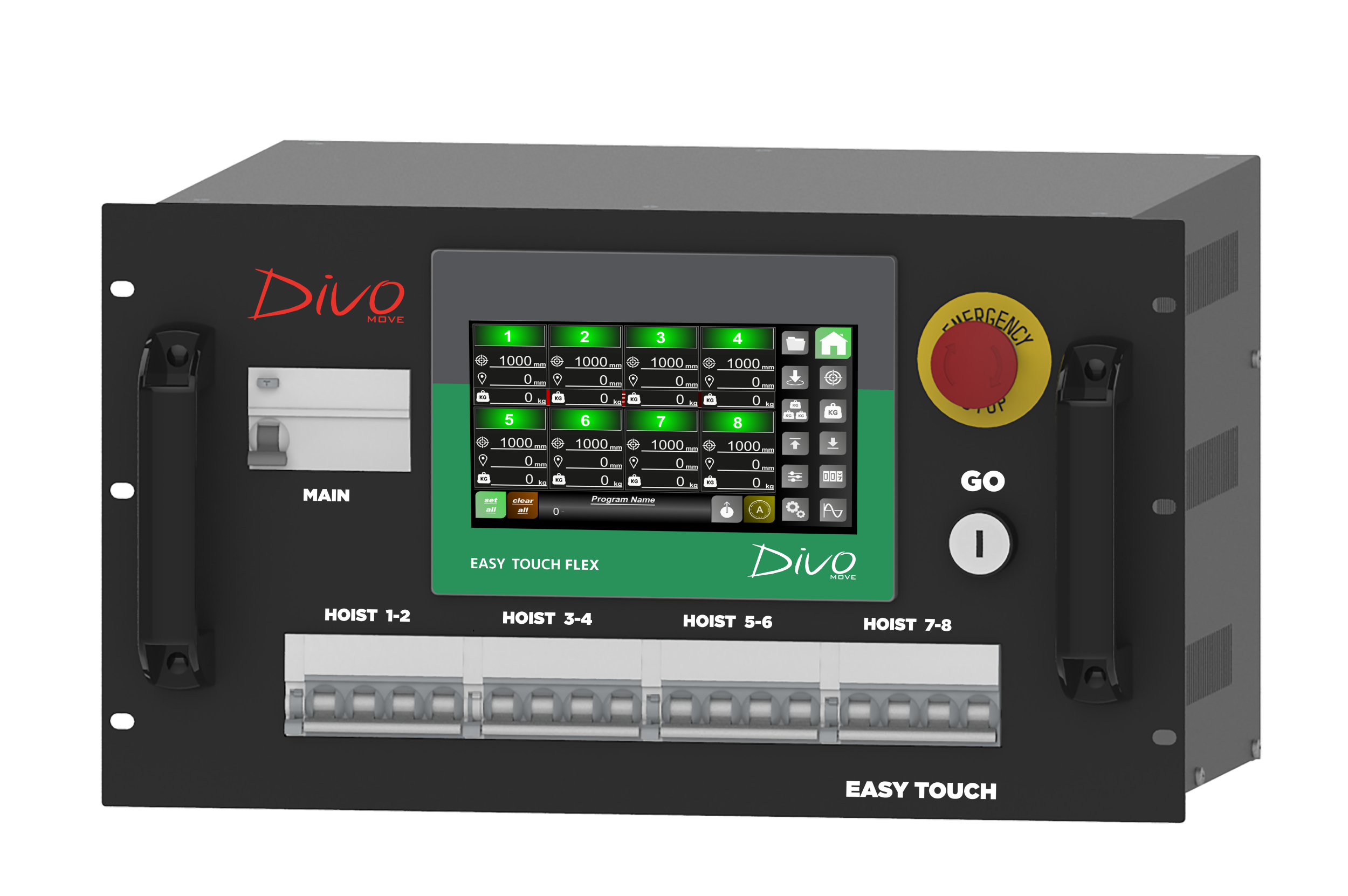

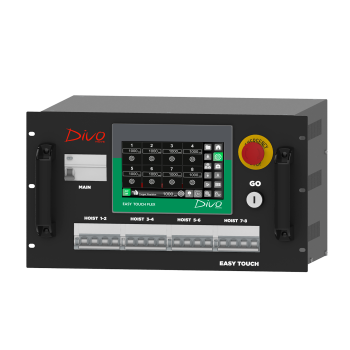

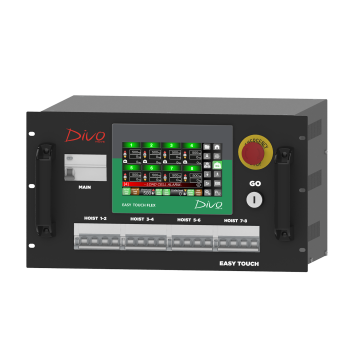

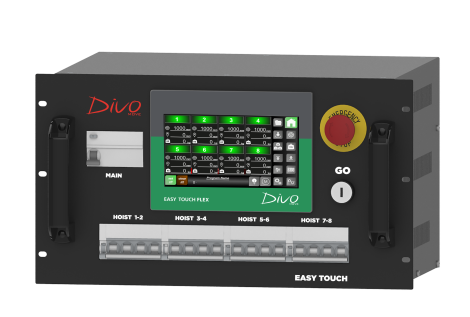

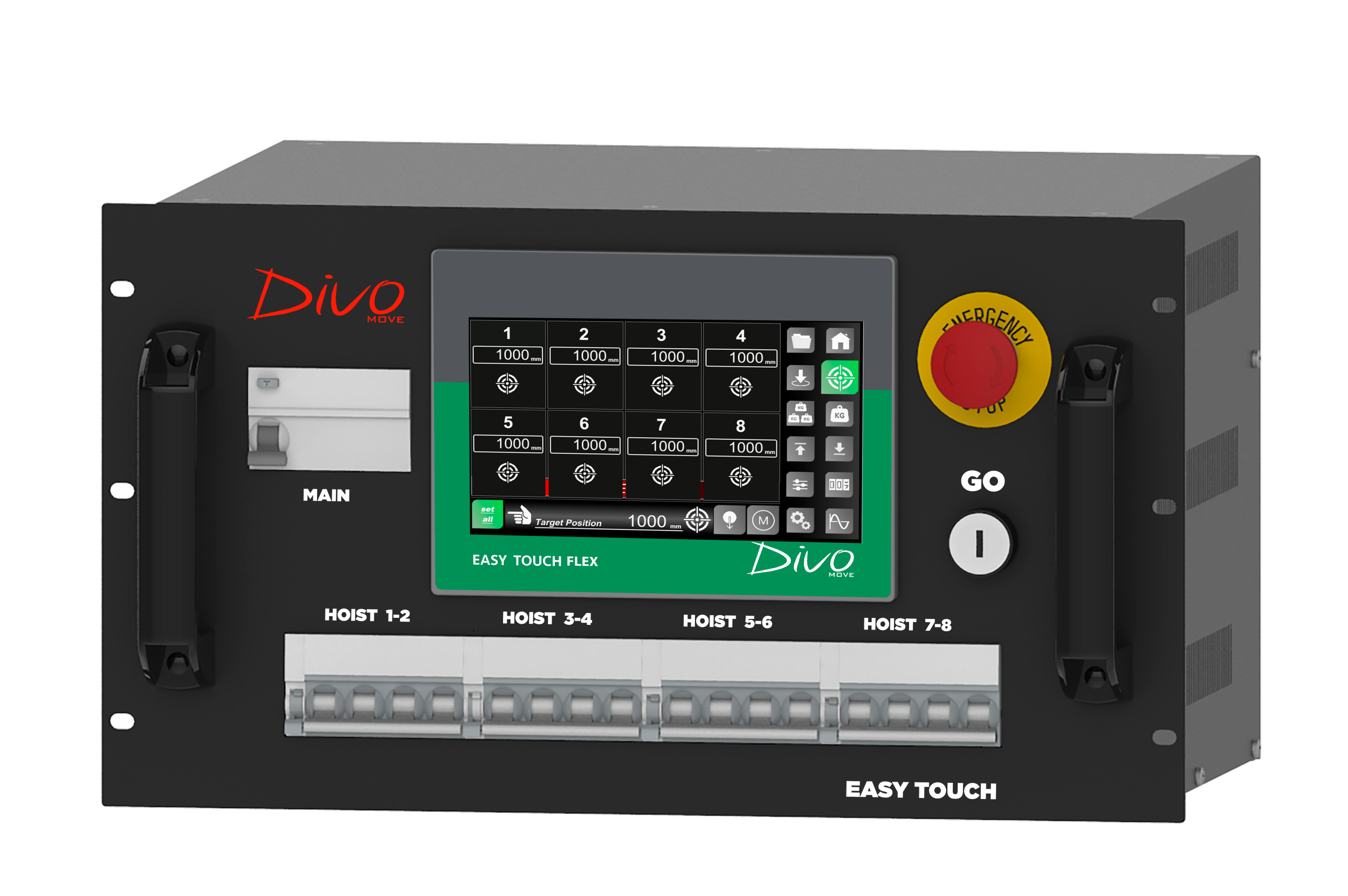

Easy Touch FLEX Motor Controller

The motor controller designed for the professional management of fixed-speed hoists with positioning, ideal for applications in the entertainment and live events industry. Equipped with a 7" or 10" touchscreen panel (for the multi-channel version), it offers an intuitive interface to monitor and control up to 8 or more channels simultaneously, with the safety of a wired load cell and encoder integrated on every hoist.

Thanks to encoder-based positioning management, Easy Touch FLEX allows manual or automatic movement (always by holding down the GO button) of the hoists until the set target position is reached (with a tolerance of a few centimeters), with the ability to define working limits (software end-of-travel) directly tied to position.

Technical Information

• Management of up to 8 or more channels, with fixed-speed hoist control and a wired load cell and encoder integrated into each hoist
• Encoder management for positioning of each hoist
• Manual or automatic movement until the set target position is reached
• Working limits settings (software UP/DOWN end-of-travel) based on position
• Integrated software for group management, load reading, and position of each hoist
• Configurable memory groups and overload and positioning limit threshold settings
• Alarm system for continuous safety monitoring
• E-Stop, channel protection
• Management interface with DMX console (optional)
• Also available in cabinet version, for fixed installations
• Integrated VPN for remote technical support

Comes preinstalled with the full version of Divo Os:

• Move all selected hoists simultaneously with a single GO button
• Real-time load monitoring, with UP movement lockout in case of overload
• Encoder-based positioning management, with configurable target position and working limits
