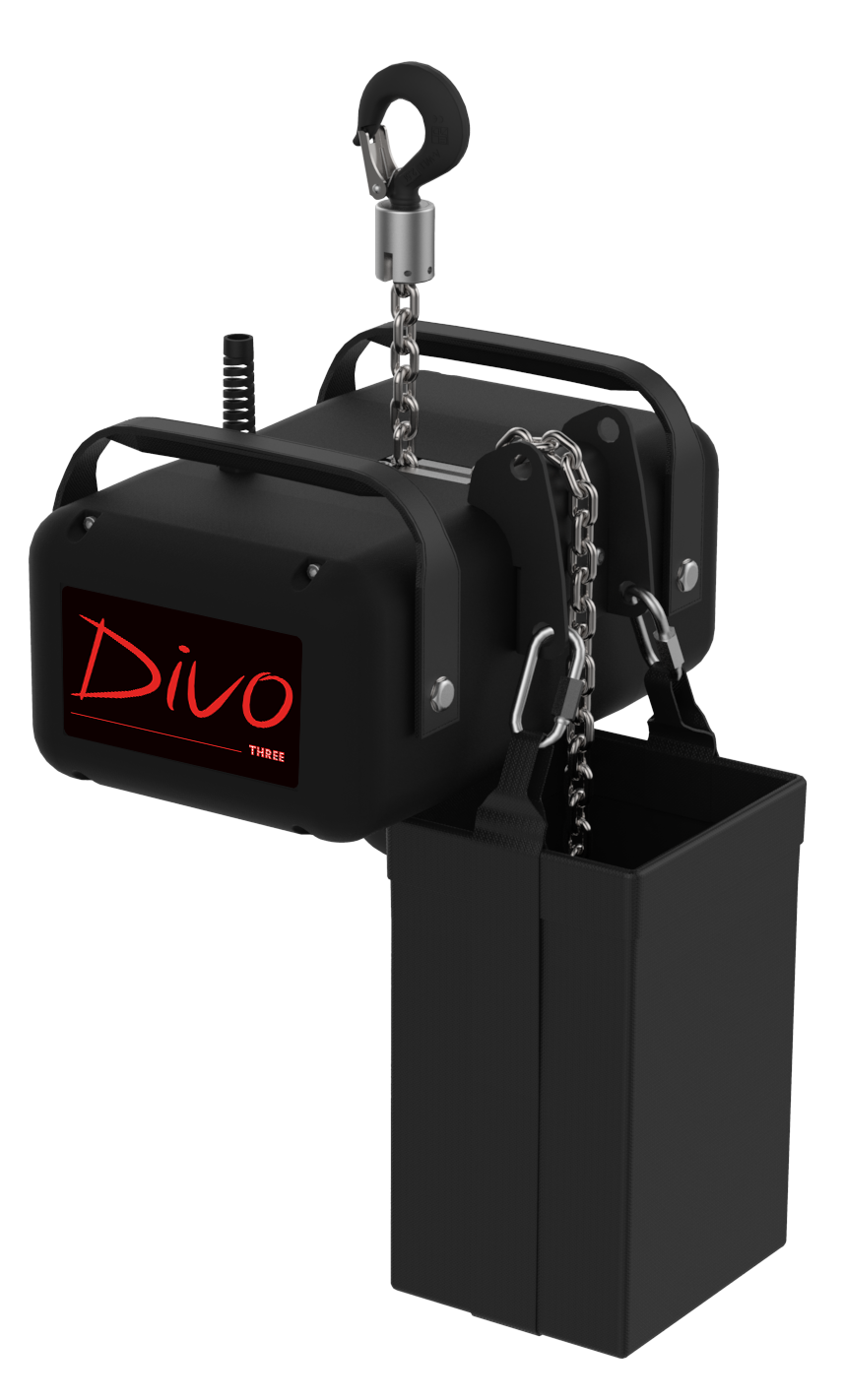

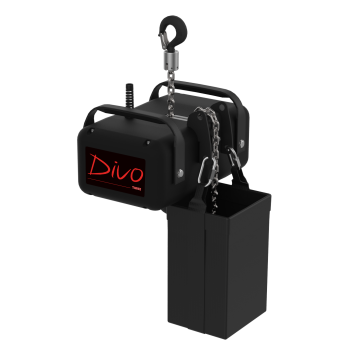

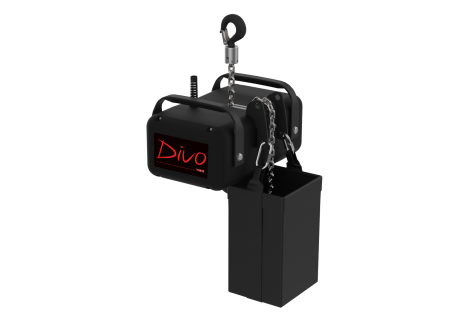

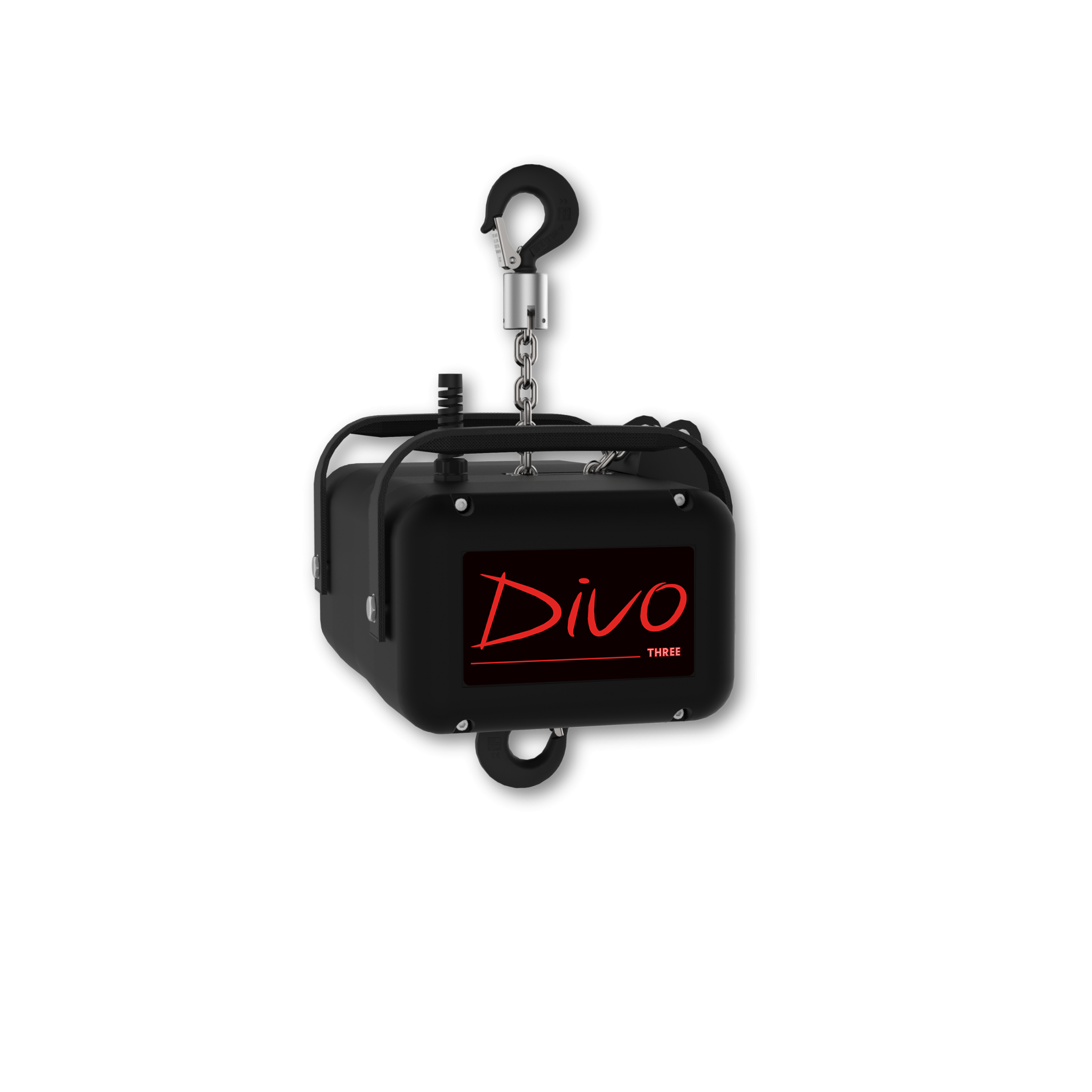

Divo THREE 630kg D8+ 4m/min

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP2 guideline
Low Voltage available.

Load capacity 630 kg
Lifting speed at 50 Hz 4m / min
Operating voltage 400V 50 Hz
Protection Class IP 55 DIN 40050
Motor power at 50 Hz 0.72 kW
FEM Class 2m
DC braking system 2 brakes
Noise level <67.5 dB (full load)
Loading wheel 5 pockets
RUD®  Load chain 6,3x19 mm
Number of chains 1
Chain weight 0.86 kg / m
Weight of the body 34 kg
Type of control Direct Control
Type of connector | Red Plug 400V EEC 16A - 3P + T
Climbing use permitted
Safety factor 8:1
Load cell Optional
Stromag® Limit Switch with 4 switches Optional
