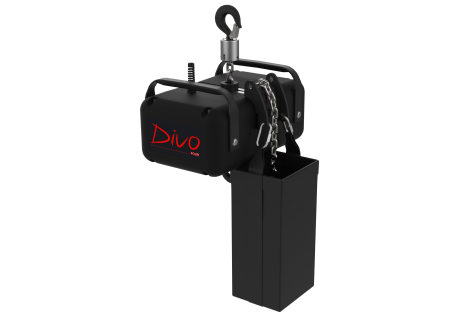

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the
IGVW SQP2 guideline
TECHNICAL SPECIFICATIONS
| Load capacity |
500 kg |
| Lifting speed at 50 Hz |
16m / min |
| Operating voltage |
400V 50 Hz |
| Protection Class |
IP 55 DIN 40050 |
| Motor power at 50 Hz |
1,5 kW |
| FEM Class |
2m |
| DC braking system |
2 brakes |
| Noise level |
<67.5 dB (full load) |
| Loading wheel |
5 pockets |
| RUD® Load chain |
8x24 mm |
| Number of chains |
1 |
| Chain weight |
1,40 kg / m |
| Weight of the body |
54 kg |
| Type of control |
24V Low voltage control - Ethernet/IP |
| Type of connector |
400V EEC 16A - 3P + N+ PE, XLR3/ EtherCON |
| Climbing use |
Permitted |
| Safety factor |
10:1 |
| Load cell |
Included |
| Stromag ® Limit Switch with 4 switches |
Included |
| Encoder |
Optional |
| Inverter |
Included |
Can be used with Touring PRO or Easy Touch control system.
