Easy Touch PRO Motor Controller

Introducing Easy Touch PRO: synchronized variable-speed control for your lifting operations

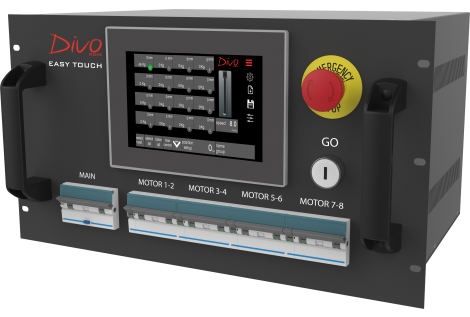

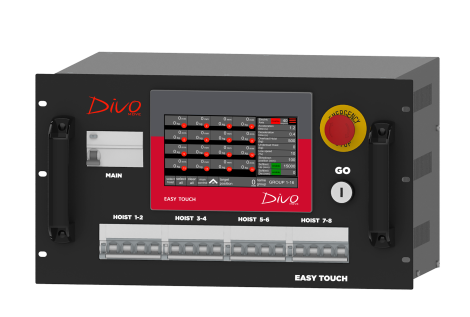

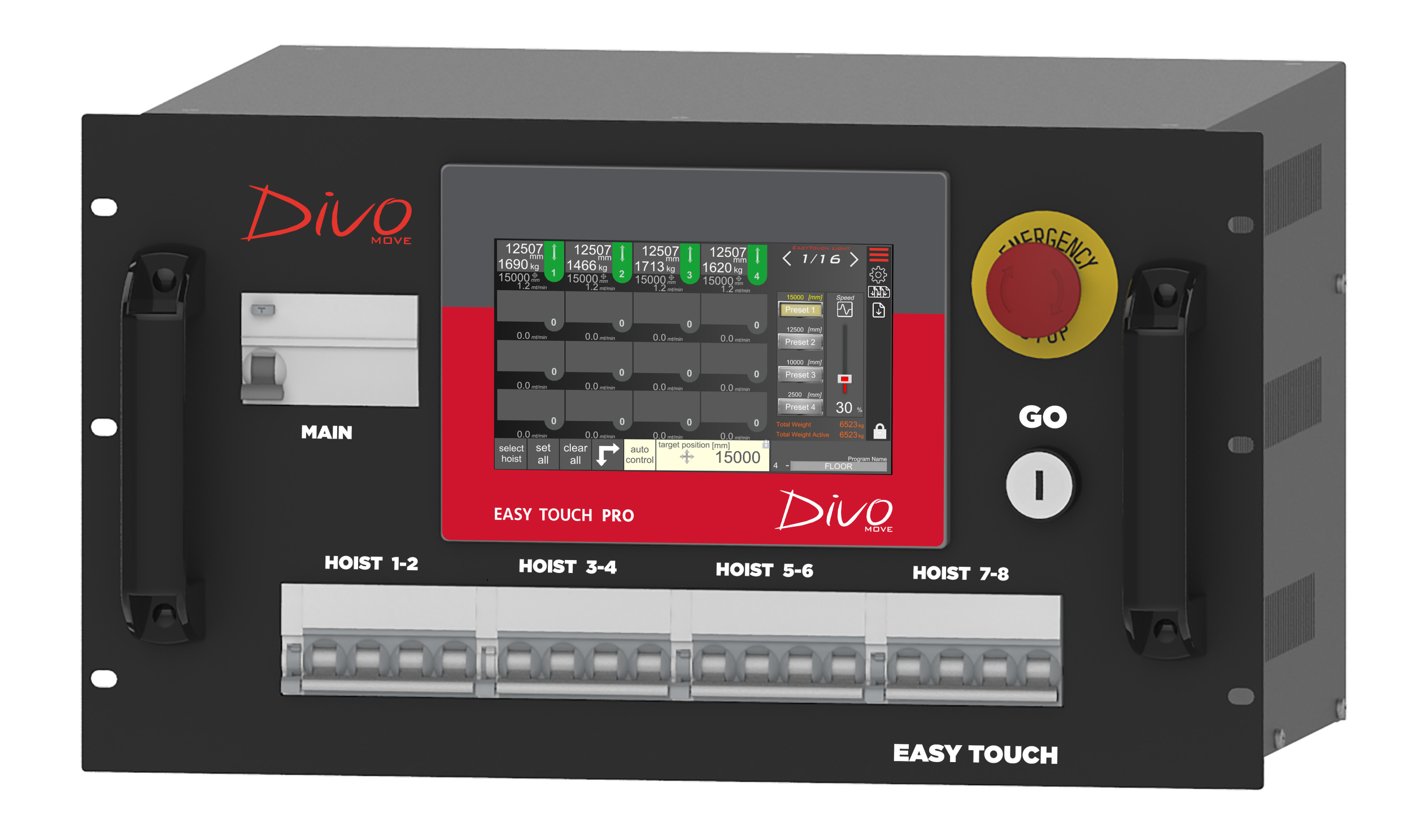

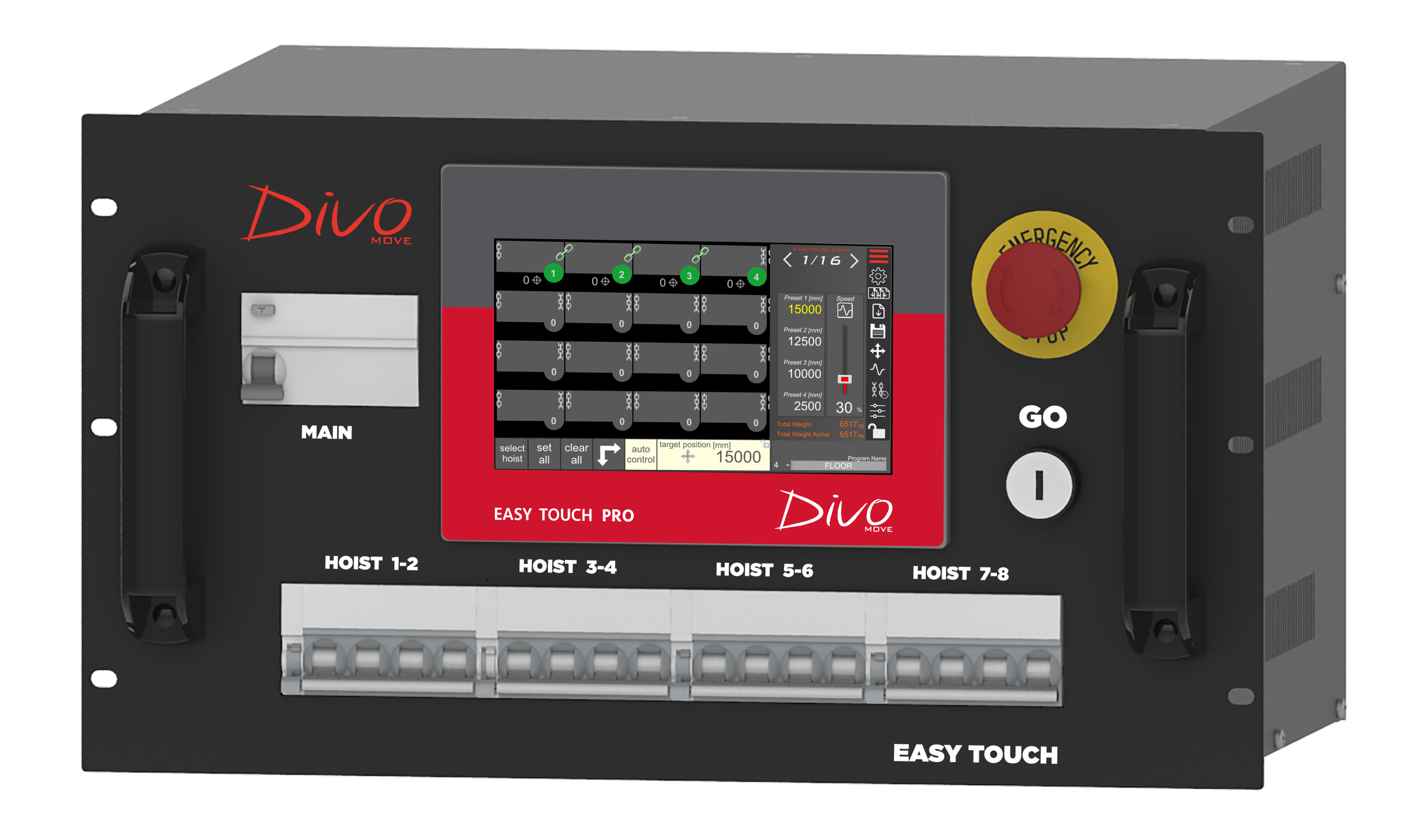

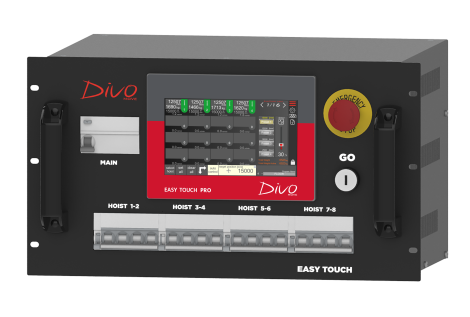

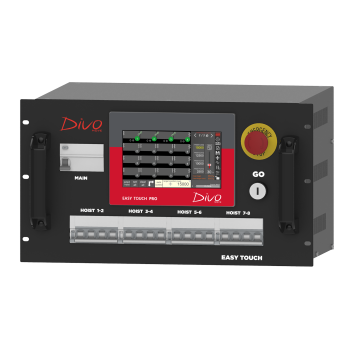

The motor controller designed for the professional management of variable-speed hoists (C1 class), with encoder and PLC-controlled inverter, ideal for entertainment and live event applications that demand the highest level of motion control. Equipped with a 7" touchscreen panel in the rack version, or 10" for the multi-channel cabinet version for fixed installations, it offers an intuitive interface to monitor and control up to 8 or more channels simultaneously, with the safety of a wired load cell and encoder integrated on every hoist.

In addition to every feature (encoder-based positioning, target position, position-based working limits), it adds synchronized multi-hoist movement, with the ability to set different speeds and positions for each hoist within the same move. Movement can be manual or automatic, with configurable acceleration and deceleration ramps (soft start & stop) for smooth, safe motion even in the most complex flying cues.

Technical Information

• Variable-speed hoist control (C1 class) via a PLC-controlled inverter installed on each hoist
• Synchronized movement of multiple hoists simultaneously

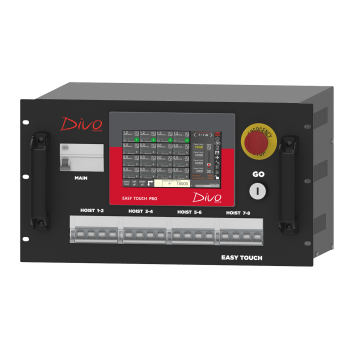

• Different speeds and positions settable for each hoist within the same move
• Configurable acceleration/deceleration ramps (soft start & stop)

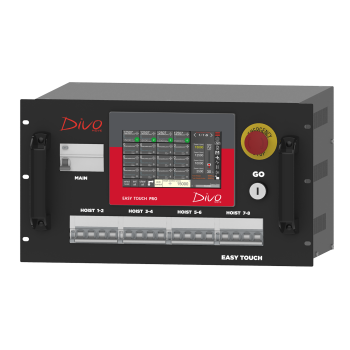

• Manual or automatic movement until the set target position is reached
• Encoder management for positioning of each hoist
• Position-based working limits (software UP/DOWN end-of-travel) settings, plus Stromag limit switch
• Wired load cell and encoder integrated into each hoist

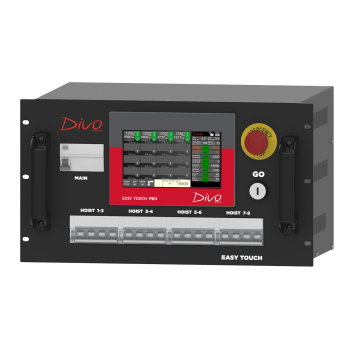

• Integrated software for group management, load reading, and position of each hoist

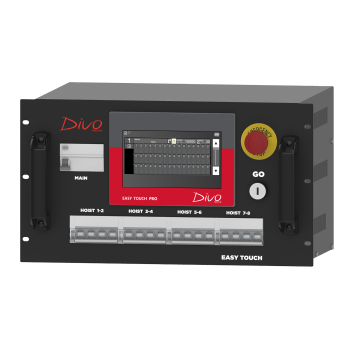

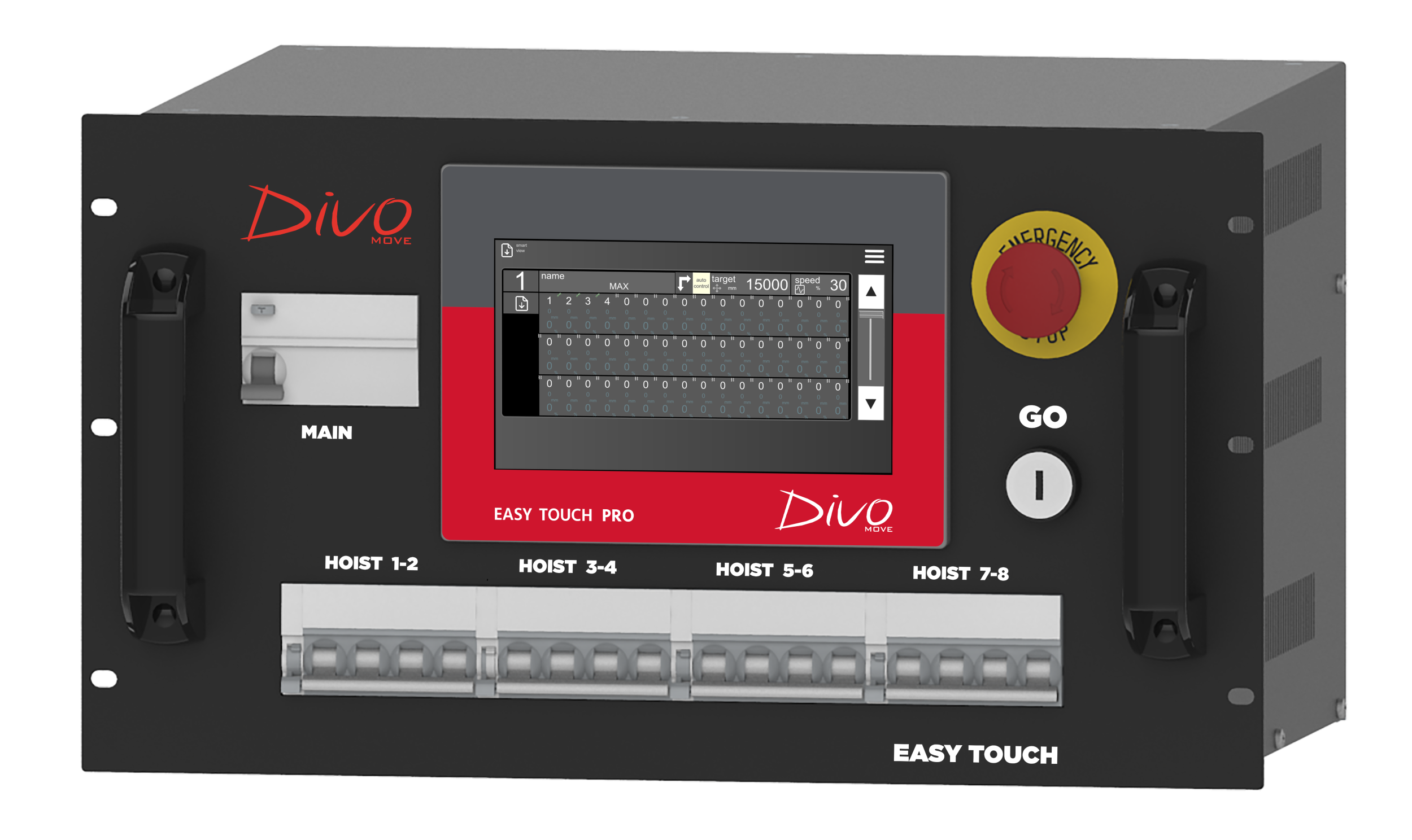

• Position/group memory saving
• Real-time load monitoring, with overload lockout
• Overload/underload threshold settings, with dedicated alarm
• E-Stop, channel protection (also available in SIL3 version)
• Management interface with DMX console (optional)
• Also available in cabinet version, for fixed installations
• Integrated VPN for remote technical support

Comes preinstalled with the full version of Divo Os:

• Move all selected hoists simultaneously with a single GO button
• Real-time load monitoring, with movement lockout in case of overload or when the soft limit is reached
• Encoder-based positioning management, with configurable target position and working limits
• Synchronized variable-speed movement, with configurable acceleration and deceleration ramps (soft start & stop)
• This and much more, only with Divo Os

Reliability, safety, and positioning precision: Easy Touch PRO is the solution for anyone seeking full synchronized control of their lifting systems, in complete safety, with the flexibility to adapt to both live event needs and fixed installations.
