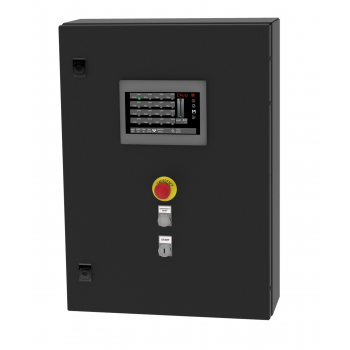

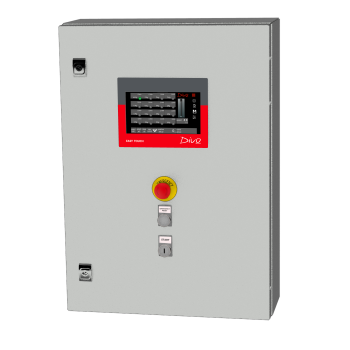

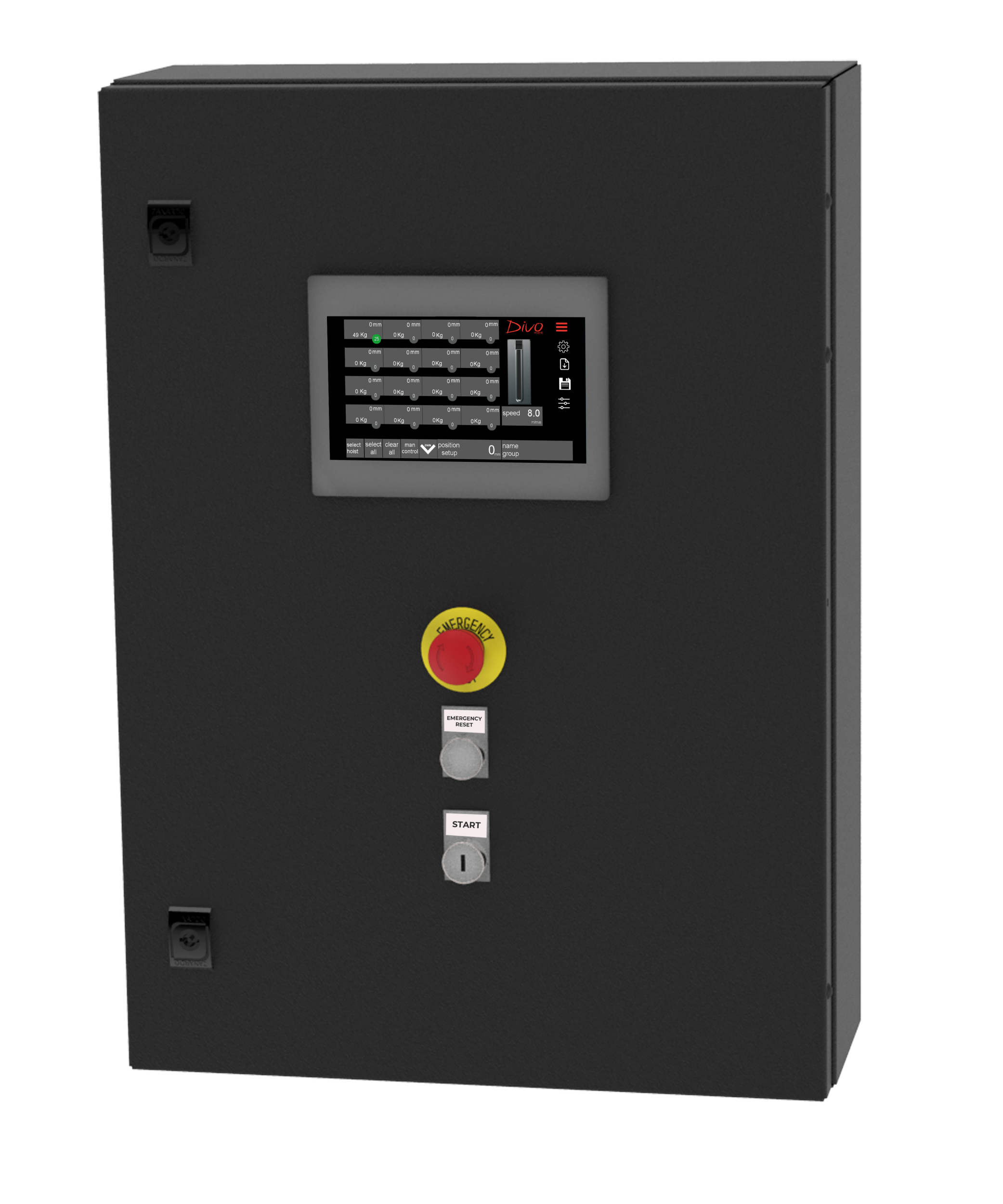

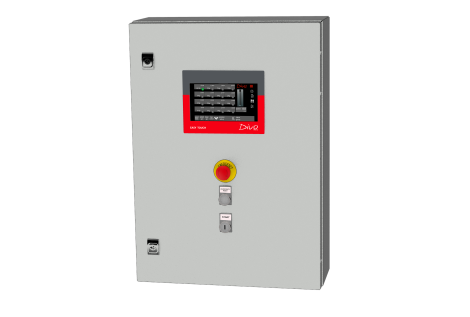

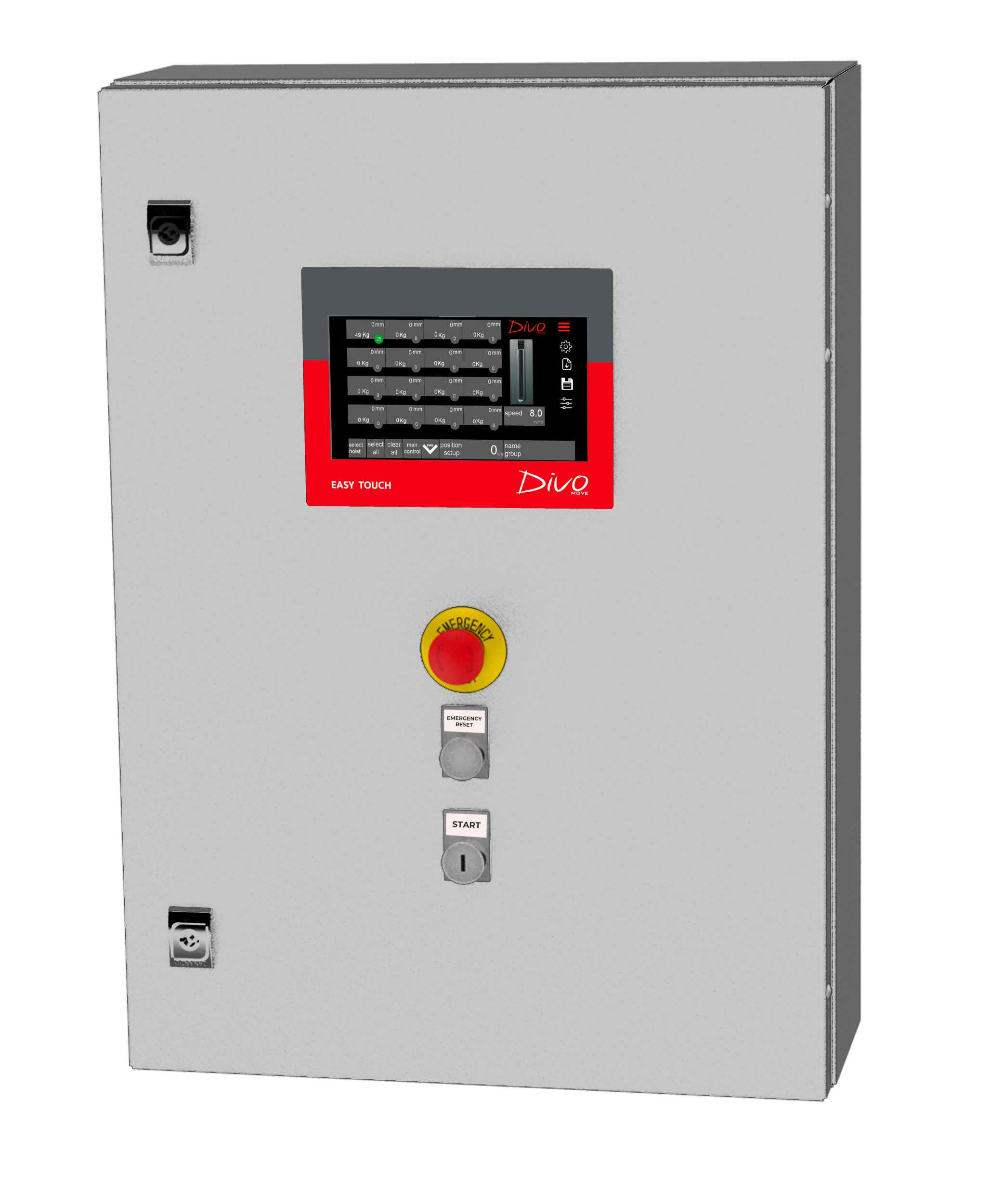

Easy Touch Wall Mounted Motor Controller
Technical information
Suitable for installations that involve the use of variable speed hoists in direct control, low voltage and single phase, load cell management with setting of the maximum load that can be lifted, under load and overload monitoring, alarm in case of overload, encoder for positioning, limit switch.
- Control cabinet with dedicated software, available in black (RAL 9005) or white (RAL 7035) version.
- Separate power box unit
- Management of up to 200 hoists, organized in groups of up to 16 units, with the possibility of simultaneous movement.
- Ethernet / IP technology for communication with the hoist
- 10" touch screen
- Position and weight monitoring of each hoist
- Speed management, acceleration and deceleration ramps
- Target position setting
- Multiple or single selection
- Operation in manual or automatic mode
- Multifunction menu
- 50 memory groups
- Portable remote control input
- Optional VPN for remote assistance
- Double access password (user and installer)
- Available on request also in black color
TECHNICAL SPECIFICATIONS
| Operating voltage |
220V - 50/60 Hz |
| Protection class |
IP 55 DIN 40050 |
| Outputs |
Ethercon connectors |
| Weight |
25 kg |
| Channel Selection |
10" Touch Screen |
| dimensions |
L 500 H 700 D 200mm |
| Portable remote control with cable |
Optional |
| E-Stop |
Included |
Motor Controller with 10 inch touch panel.
Pre-installed the complete version of the
Divo Os
