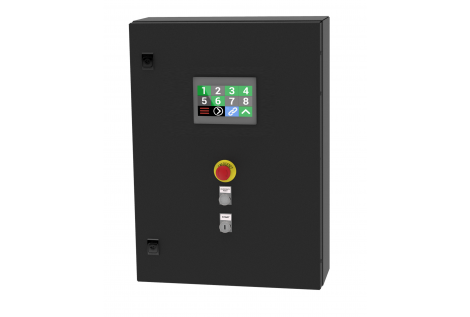

Easy Touch
Technical information
Suitable for installations that require the use of fixed speed hoists in low voltage or direct control, with the ability to monitor the load of each hoist, set the maximum load and alarm in case of overload
Power and control in one cabinet
7 "touch screen
Multiple or single selection
Multifunction menu
8 memory groups
Portable remote control input
TECHNICAL SPECIFICATIONS
Operating voltage |
400 V - 3P + E - 50/60 Hz |
Protection class |
IP 55 DIN 40050 |
Outputs |
Internal terminal block |
Weight |
25 kg |
Channel Selection |
7 "Touch Screen |
dimensions |
L 500 H 700 D 200mm |
Portable remote control with cable |
Optional |
E-Stop |
Included |
