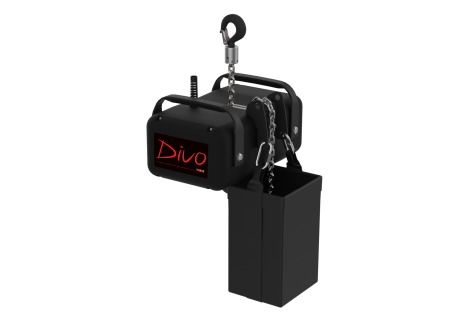

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the
IGVW SQP2 guideline
TECHNICAL SPECIFICATIONS
| Load capacity |
630 kg |
| Lifting speed at 50 Hz |
4m / min |
| Operating voltage |
400V Hz - 24Vdc |
| Protection Class |
IP 55 DIN 40050 |
| Motor power at 50 Hz |
0.75 kW |
| FEM Class |
2m |
| DC braking system |
2 brakes |
| Noise level |
<67.5 dB (full load) |
| Loading wheel |
5 pockets |
| RUD® Load chain |
6,3x19 mm |
| Number of chains |
1 |
| Chain weight |
0.86 kg / m |
| Weight of the body |
34 kg |
| Type of control |
24V Low voltage control |
| Type of connector |
400V EEC 16A - 3P + PE / XLR3 connector |
| Climbing use |
Permitted |
| Safety factor |
8:1 |
| Load cell |
Included |
| Stromag ® Limit Switch with 4 switches |
Included |
| Encoder |
Optional |
| Inverter |
Optional |
Can be used with Touring PRO or Easy Touch control system.
