Touring Motor controller

Code: SMC
Category : Motor Controllers and push button

Touring motor controllers

Technical information

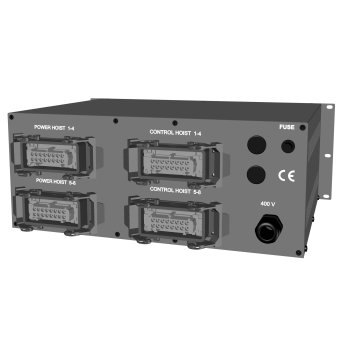

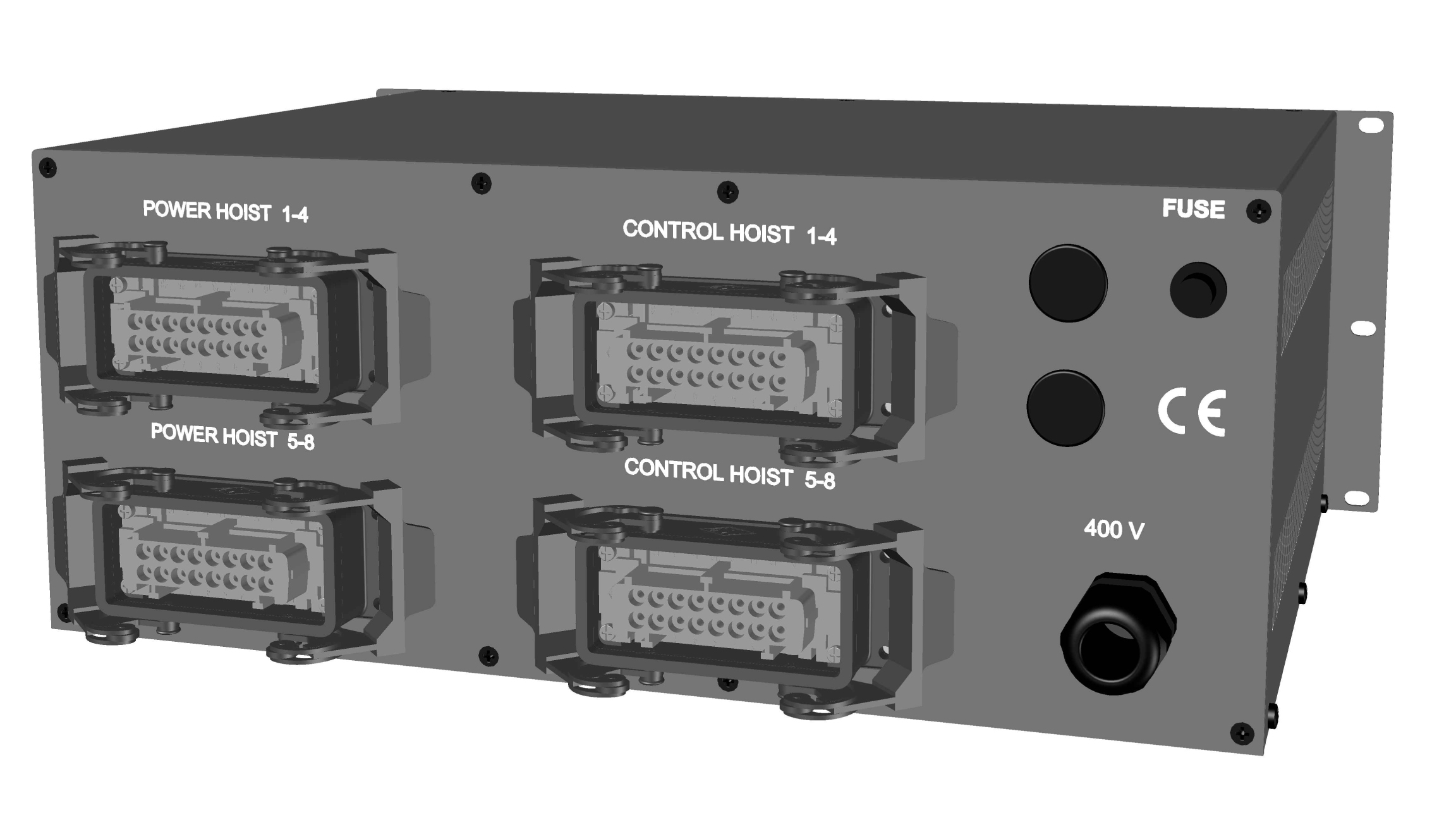

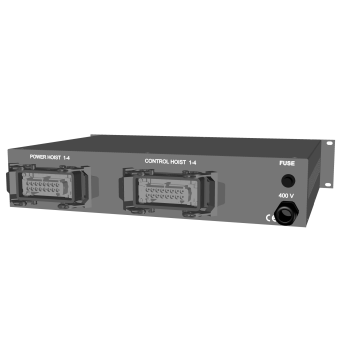

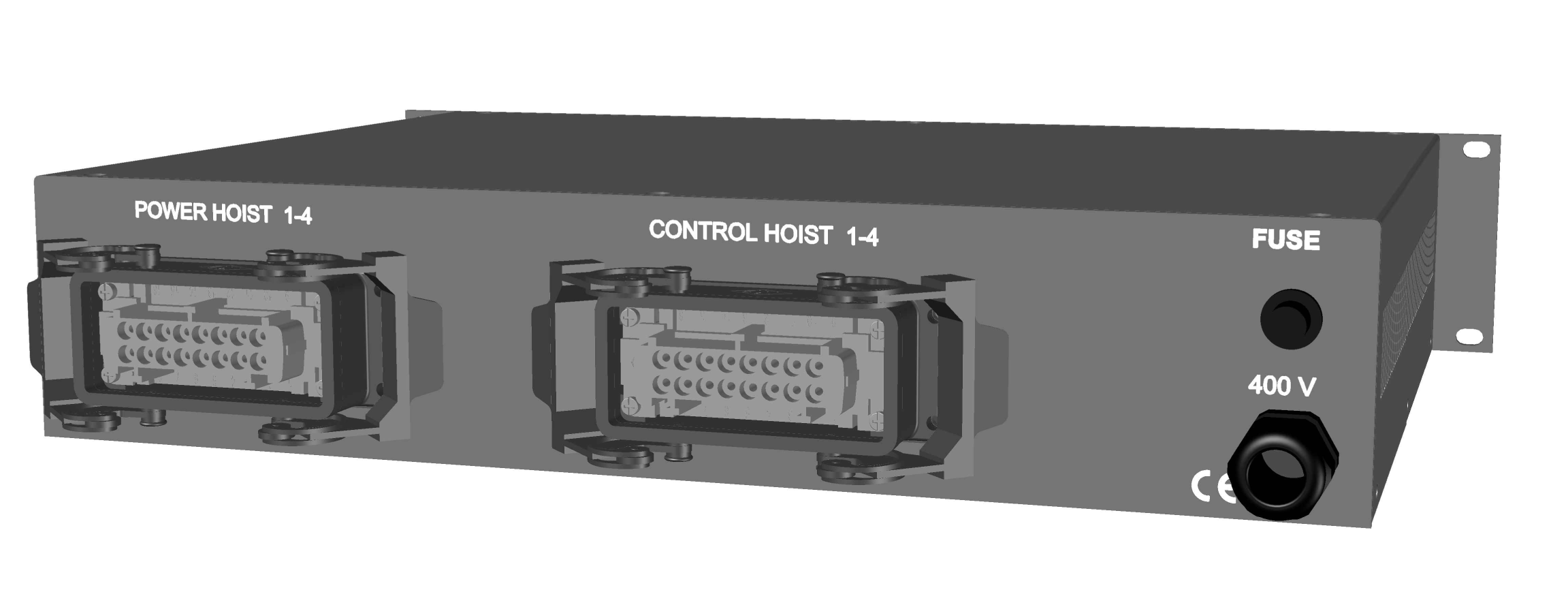

Motor Controller 4 and 8 channels, in standard version.

**TECHNICAL SPECIFICATIONS**
	4 channels	8 channels
Operating voltage	220/400 V - 3P + E - 50/60 Hz	220/400 V - 3P + E - 50/60 Hz
Protection class	IP 55 DIN 40050	IP 55 DIN 40050
Outputs	400V CEE 46 A - 3P + E	400V CEE 46 A - 3P + E
Weight	8 kg	11 kg
dimensions	2U rack 420mm	4U rack 420mm
E-Stop	Included	Included
Low Voltage control 24V	Available	Available

Standard Motor Controller, 4 and 8 channels.
Select the desired hoists by turning the respective switches to the UP or DOWN position: through the GO button you can move them simultaneously.
Low Voltage available

Touring 4-8.pdf (544,35 KB)
