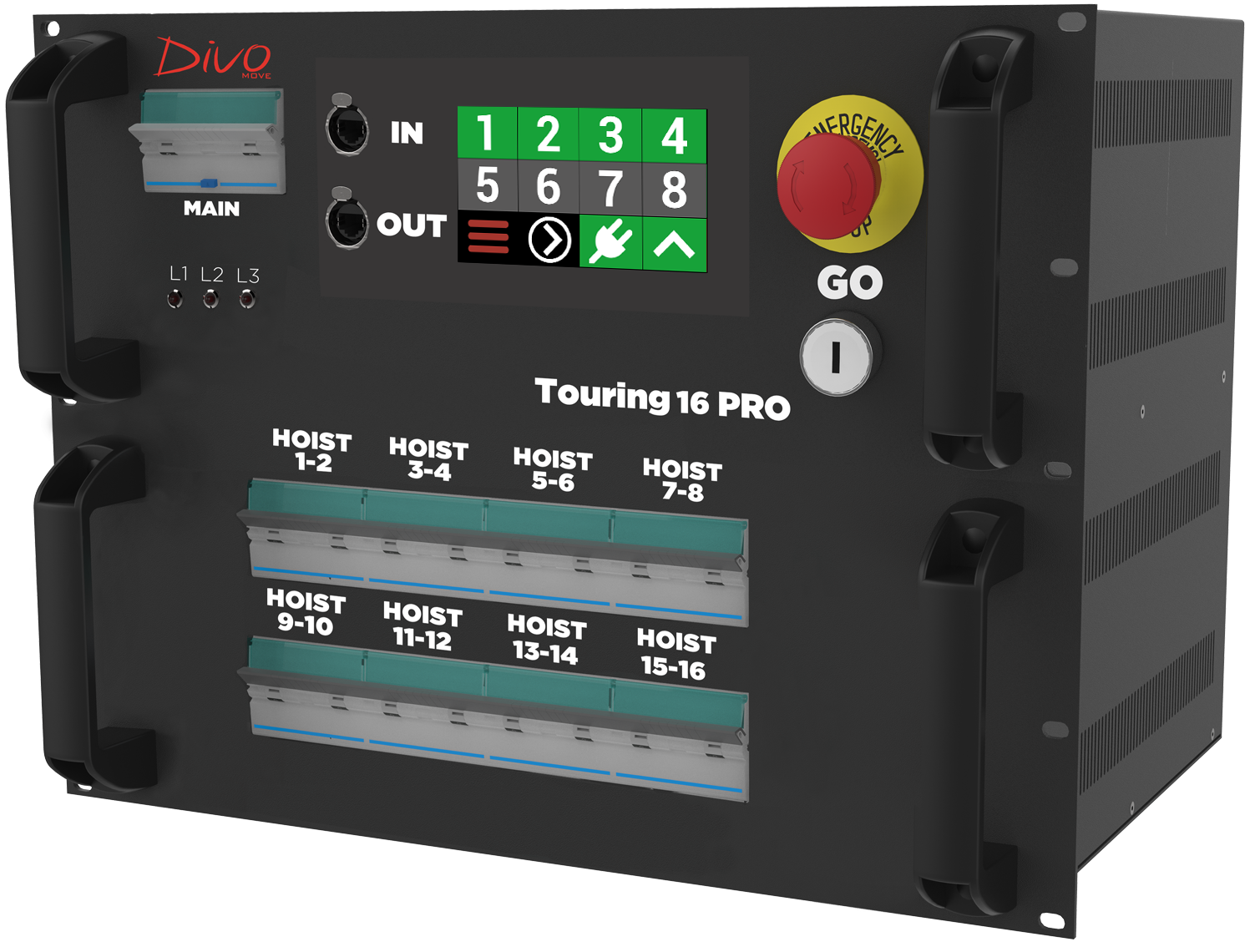

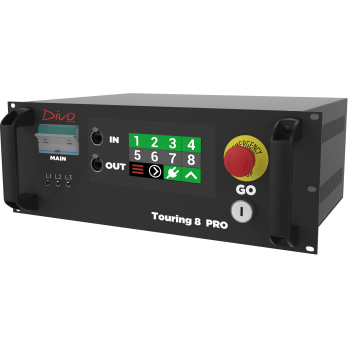

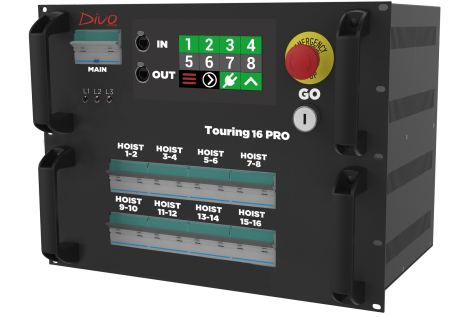

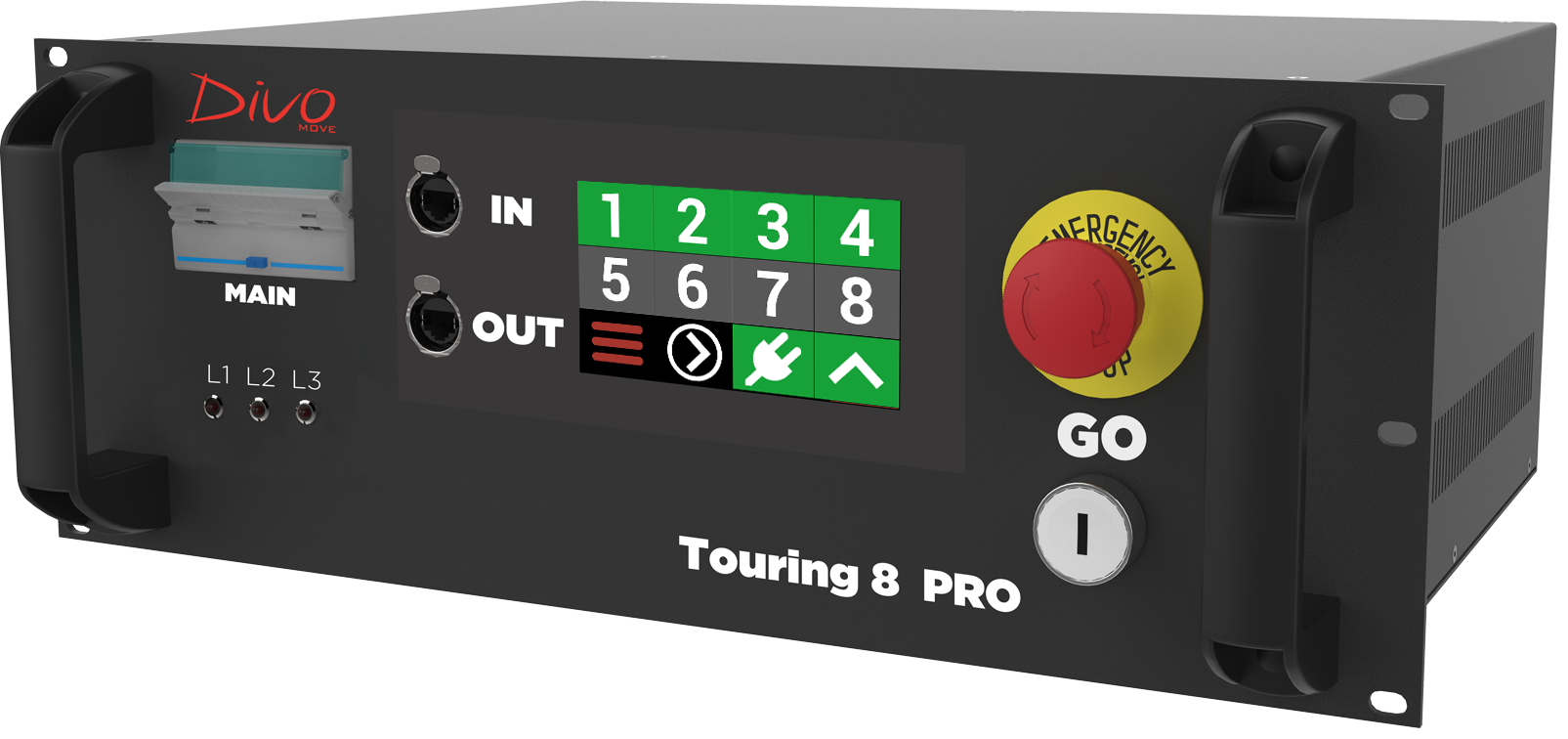

Touring PRO Motor controller


Touring PRO motor controllers

Technical information

Motor Controller 4, 8 and 16 channels, in a linkable version.
TECHNICAL SPECIFICATIONS
  8 channels 16 channels
Operating voltage 400 V - 3P + E - 50/60 Hz 400 V - 3P + E - 50/60 Hz
Protection class IP 55 DIN 40050 IP 55 DIN 40050
Outputs 400V CEE 46 A - 3P + E 400V CEE 46 A - 3P + E
Multipole Connector Optional Optional
Weight 14 kg 23 kg
dimensions 4U rack 420mm 8U rack 420mm
Touch Screen 5 inches 5 inches
Remote Command Optional Optional
E-Stop Included Included
Memory groups Through included software Through included software
Wired Load cells monitoring Through optional external box Through optional external box
Low Voltage control Available Available
LOGIN/ REGISTER
to see your exclusive price
Linkable Motor Controller with touch screen, 3.2 e 5 inches.
Each model can be master or slave.
Remote touchscreen pushbutton.
Pre-installed the basic version of the Divo Os:
  • UP / DOWN control
  • multiple selection
  • multifunction menu
  • creation and handling of hoists group
  • digital phase inversion
  • load cell monitoring through optional external box
  • available with 24V low voltage control
